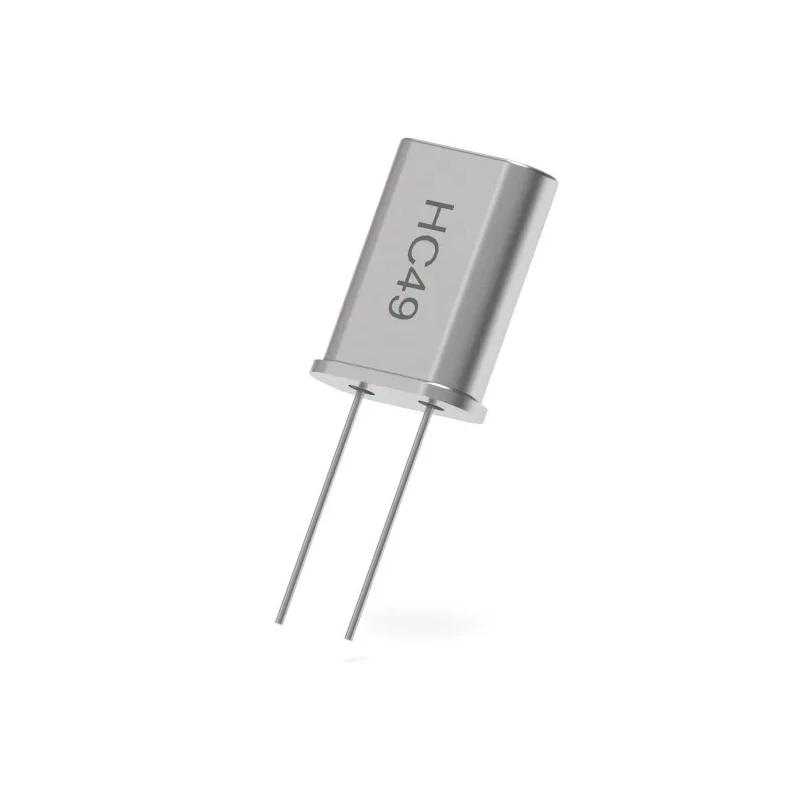

IQD 2.4577 MHz Crystal Unit ±20 ppm HC-49 2-Pin Through Hole LFXTAL003044B

Free Delivery in India | Lowest Global Shipping Charges

IQD 2.4577 MHz Crystal Unit ±20 ppm HC-49 2-Pin Through Hole LFXTAL003044B



Category Crystal Unit Brand IQD Condition New

Specifications

Country of Origin	India
Brand	IQD
Height	13.46mm
Length	11.05mm
Model	LFXTAL003044B
Width	4.65mm
Mount Type	Through Hole
Maximum Operating Temperature	60°C
Package Type	HC-49
Minimum Operating Temperature	-10°C
Standards/Approvals	REACH, RoHS
Pin Count	2
Standard Frequency	2.4577MHz
Load Capacitance	30pF
Series Resistance	600Ω

Key Features

Standard frequency is 2.4577 MHz ensuring precise oscillation.
Package features a 2-pin HC-49 through-hole mount for reliable PCB integration.
Load capacitance is rated at 30 pF for stable circuit operation.
Physical dimensions of 13.46 mm height, 11.05 mm length, and 4.65 mm width.
Operates reliably between -10°C and 60°C ambient temperature.
Series resistance of 600 Ω supports efficient signal quality.
Compliance with REACH and RoHS standards ensures environmental safety.
Hermetically sealed glass to metal seals protect the unit in harsh conditions.

Product Description

IQD LFXTAL003044B is a crystal unit operating at a standard frequency of 2.4577 MHz with a frequency tolerance of ±20 ppm. Housed in a HC-49 package with through-hole mounting, it features a 2-pin configuration optimized for reliable PCB assembly. The crystal unit has physical dimensions measuring 13.46 mm in height, 11.05 mm in length, and 4.65 mm in width.

Designed for stability, it offers a load capacitance of 30 pF and frequency stability within ±50 ppm over the temperature range from -10°C to 60°C. The series resistance of 600 Ω ensures efficient oscillation characteristics for various electronic applications.

This crystal unit is hermetically sealed with resistance welded glass-to-metal seals to protect internal components against environmental stress. It complies with REACH and RoHS directives, making it suitable for environmentally conscious designs.

Suitable for use in industrial electronics, test and measurement equipment, telecommunications, and other high-precision oscillator applications, this component provides dependable frequency control under varied operating conditions.

The product comes as a single crystal unit with industry-standard HC-49 form factor and mounting. Precision manufacturing from IQD ensures performance consistency and long-term reliability.

Standard frequency of 2.4577 MHz for accurate oscillation in electronic circuits. Through-hole 2-pin HC-49 package facilitates easy integration into PCB layouts. Load capacitance of 30 pF to optimize circuit stability. Compact dimensions supporting space-efficient designs.

Operating temperature range from -10°C to 60°C suitable for diverse environments. Series resistance of 600 Ω supporting quality signal generation. Hermetic sealing for environmental protection and durability. Complies with RoHS and REACH environmental standards.

Ideal for industrial, laboratory, telecommunications, and manufacturing use cases. Explore more high-quality Crystal Units in the Electronics Components category at EnvMart for your precision frequency control needs.
