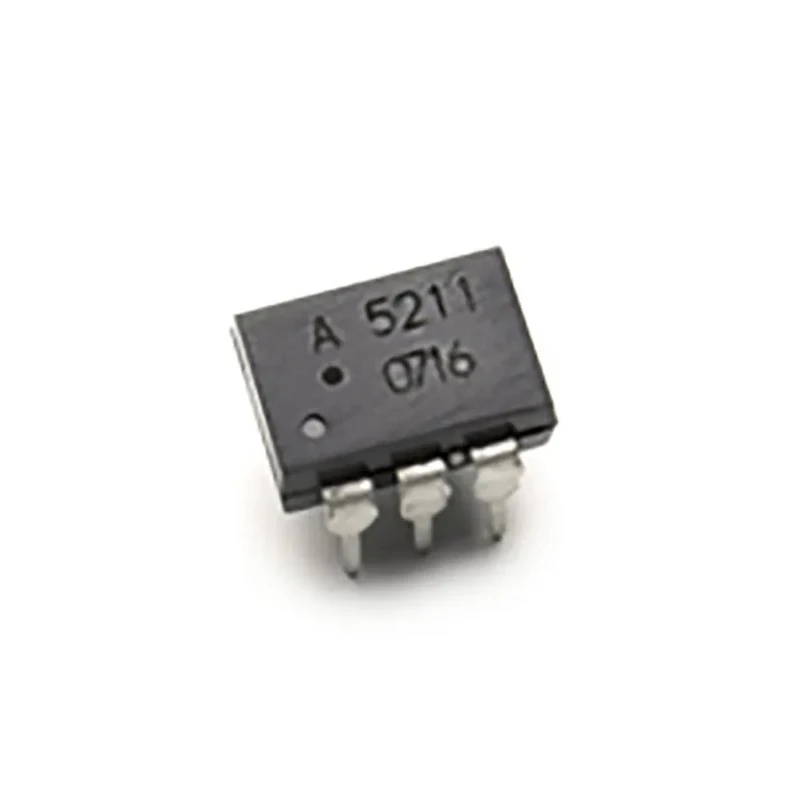

Broadcom High Current Solid State Relay 0.4A Load Surface Mount 600V Output MOSFET ASSR-5211-001E

Free Delivery in India | Lowest Global Shipping Charges

Broadcom High Current Solid State Relay 0.4A Load Surface Mount 600V Output MOSFET ASSR-5211-001E

Name: Broadcom High Current Solid State Relay 0.4A Load Surface Mount 600V Output MOSFET ASSR-5211-001E
Brand: Broadcom
SKU: 213208
Price: 7.06 USD
Availability: InStock



Category Solid State Relay Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Height	3.7mm
Length	9.9mm
Model	ASSR-5211-001E
Width	6.6mm
Mount Type	Surface
Output type	MOSFET
Series	ASSR-5211
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Capacitance	0.8pF
Minimum Operating Temperature	-40°C
Terminal type	6-Pin
Maximum Load Current	0.4A
Standards/Approvals	CSA, IEC, RoHS, UL
Maximum Load Voltage	600V
Minimum Control Voltage	1.25V
Maximum Control Voltage	0.8V
Off State Leakage Current	1μA
On State Resistance	10Ω
Toshiba TLP220A AC Input Optocoupler, Through Hole, 4-Pin DIPBrand	Toshiba

Key Features

Designed for high current applications with MOSFET output for efficient switching.
Features single-pole, single-throw (SPST) normally-off configuration.
Low on-state resistance of 10 ohms enhances performance and reduces power loss.
High-speed switching capabilities with typical turn-on time of 0.7 ms.
Reliable operation over temperature range from -40°C to 85°C.
Compliant with CSA, IEC, RoHS, and UL standards for safety and quality.
Off-state leakage current is minimal at 1 μA, ensuring low power consumption.
Compact dimensions of 9.9 mm length, 6.6 mm width, and 3.7 mm height facilitate PCB space savings.

Product Description

Broadcom ASSR-5211-001E is a high current, single-pole single-throw (SPST) solid state relay designed to replace electromechanical relays in industrial equipment demanding reliable switching of up to 0.4 A load at 600 V. This surface mount device integrates an AlGaAs infrared LED input stage with a high-speed photovoltaic diode array and MOSFET output circuitry to provide fast, isolated switching with low on-resistance and high transient immunity.

The relay features both AC and DC load switching capabilities with low typical on-state resistance of 10 Ω, offering enhanced efficiency and reduced heat dissipation. Its compact dimensions (9.9 mm length × 6.6 mm width × 3.7 mm height) allow for dense PCB layouts and integration into automated manufacturing systems.

Operating reliably over a temperature range from -40°C to +85°C, it meets rigorous safety and environmental standards including CSA, IEC, RoHS, and UL 1577, supporting high voltage isolation of 3750 Vrms for 1 minute.

Applications span across industrial controls, factory automation, data acquisition instruments, medical equipment, and security systems where swift and reliable signal switching is critical. This MOSFET-based solid state relay also serves as an effective replacement for electromagnetic relays, delivering longer service life and silent operation.

Designed for high current switching with MOSFET output for durable performance. Single-pole single-throw (SPST) normally-off configuration for straightforward control. Low on-state resistance around 10 Ω ensures minimal power loss.

Fast switching speeds with typical turn-on time of 0.7 milliseconds. Wide operating temperature range from -40°C to 85°C. Certified to CSA, IEC, RoHS, and UL standards ensuring compliance. Compact surface mount package optimized for industrial circuit boards.

Minimal off-state leakage current for energy-efficient operation.

This Broadcom solid state relay is an essential component for robust industrial automation and control systems. Browse more Solid State Relays and electronic components at EnvMart for enhanced solutions.
