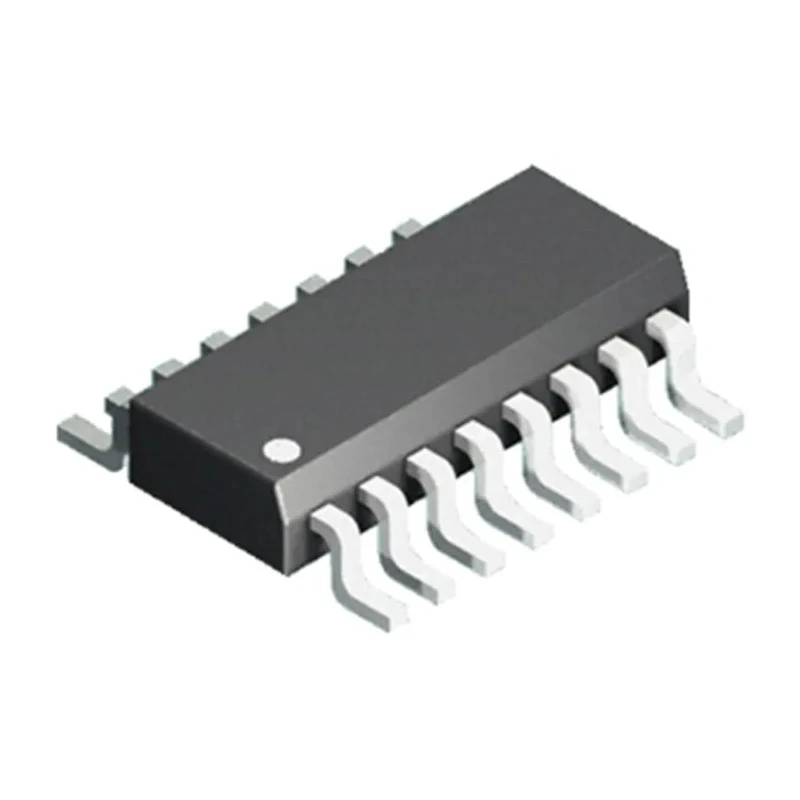

Isocom DC Input 4-Channel Optocoupler Surface Mount 16-Pin IS2801-4
Specifications
| Country of Origin | China |
|---|---|
| Brand | Isocom |
| Model | IS2801-4 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | IS |
| Maximum Operating Temperature | 110°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 50mA |
| Number Of Channels | 4 |
| Standards/Approvals | UL |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 16 |
| Input Current Type | DC |
| Typical Rise Time | 2μs |
| Maximum Current Transfer Ratio | 600% |
| Typical Fall Time | 3μs |
| Minimum Current Transfer Ratio | 50% |
Key Features
- Features four optically coupled channels with infrared emitting diodes and NPN silicon phototransistors.
- Supports DC input current type with a maximum forward voltage of 1.4V.
- Provides high isolation voltage of 3000Vrms for electrical separation.
- Operates reliably within a temperature range of -55°C to 110°C.
- Typical rise and fall times are 2μs and 3μs respectively ensuring fast switching.
- Comes with UL standards approval for safety and reliability.
- Packaged in tape and reel format facilitating automated assembly.
- Compact 16-pin surface mount package with half pitch spacing of 1.27mm.
Product Description
Isocom IS2801-4 DC Input 4-Channel Optocoupler is a compact and efficient surface mount optocoupler featuring four independent channels. Each channel consists of an infrared emitting diode optically coupled to an NPN silicon phototransistor, providing electrical isolation with a high AC isolation voltage of 3000Vrms.
The device supports a DC input current type with a typical maximum forward voltage of 1.4V and operates effectively over a wide industrial temperature range from -55°C to 110°C. Its fast switching capabilities are demonstrated by typical rise and fall times of 2μs and 3μs respectively, making it suitable for high-speed industrial applications.
This optocoupler is available in a 16-pin surface mount package with a half pitch of 1.27mm, designed for ease of integration especially on hybrid substrates with high-density mounting. It is packaged in tape and reel format enabling efficient automated placement processes during manufacturing.
Applications include industrial system controllers, measuring instruments, system appliances, and other electronic circuits requiring reliable electrical isolation and signal transmission. Compliance with UL standards assures safety and quality.
Four channel optical isolation with infrared emitting diodes and NPN phototransistors. High isolation voltage of 3000Vrms for enhanced safety in circuitry. Wide operating temperature range ensures tolerance in harsh environments.
Fast response with typical rise time of 2µs and fall time of 3µs. Available in surface mount 16-pin package for compact PCB designs. Packaged in tape and reel format suitable for mass production. UL approved for compliance with international standards.
Optimized for industrial, hybrid substrate, and controller applications. The IS2801-4 is manufactured in China and supplied as a new product. Explore further optocoupler products and related electronic components at EnvMart for diverse industrial and commercial applications.
Explore more products in our Optocouplers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for the Isocom IS2801-4 is 110°C.
This optocoupler provides a high isolation voltage of 3000Vrms for electrical separation.
The IS2801-4 features four independent channels.
The typical rise time is 2μs and the fall time is 3μs, ensuring fast switching capabilities.
It supports a DC input current type with a maximum forward voltage of 1.4V.
The IS2801-4 is packaged in tape and reel format, facilitating automated assembly.
It comes in a compact 16-pin surface mount package with a half pitch spacing of 1.27mm.
The minimum operating temperature for the IS2801-4 is -55°C.
This optocoupler is UL approved, ensuring compliance with international safety standards.
The maximum input current for the IS2801-4 is 50mA.
The IS2801-4 is suitable for applications including industrial system controllers, measuring instruments, and electronic circuits requiring reliable electrical isolation.
The maximum current transfer ratio for the IS2801-4 is 600%.
