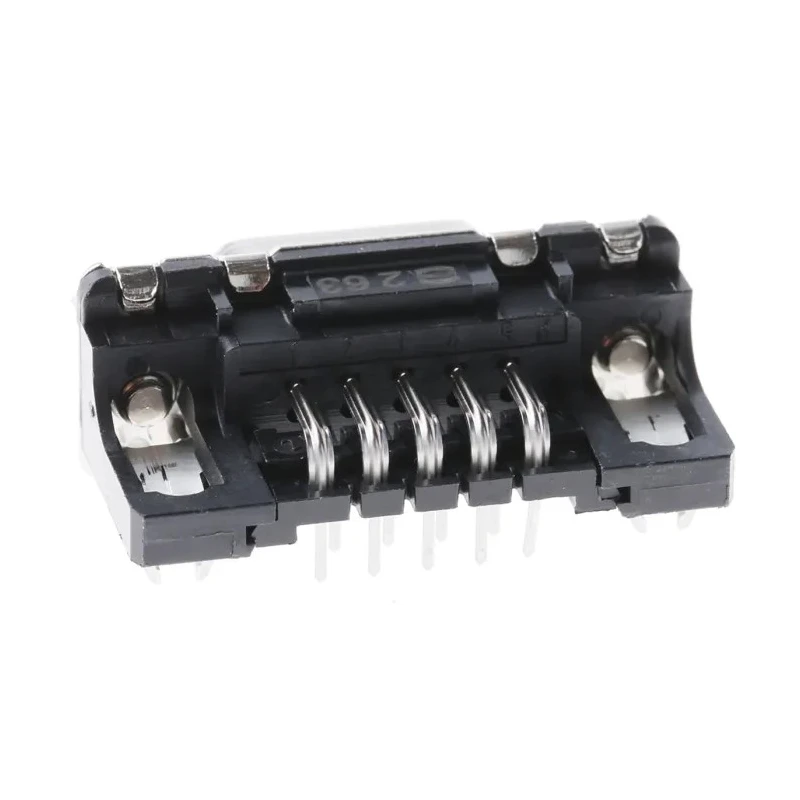

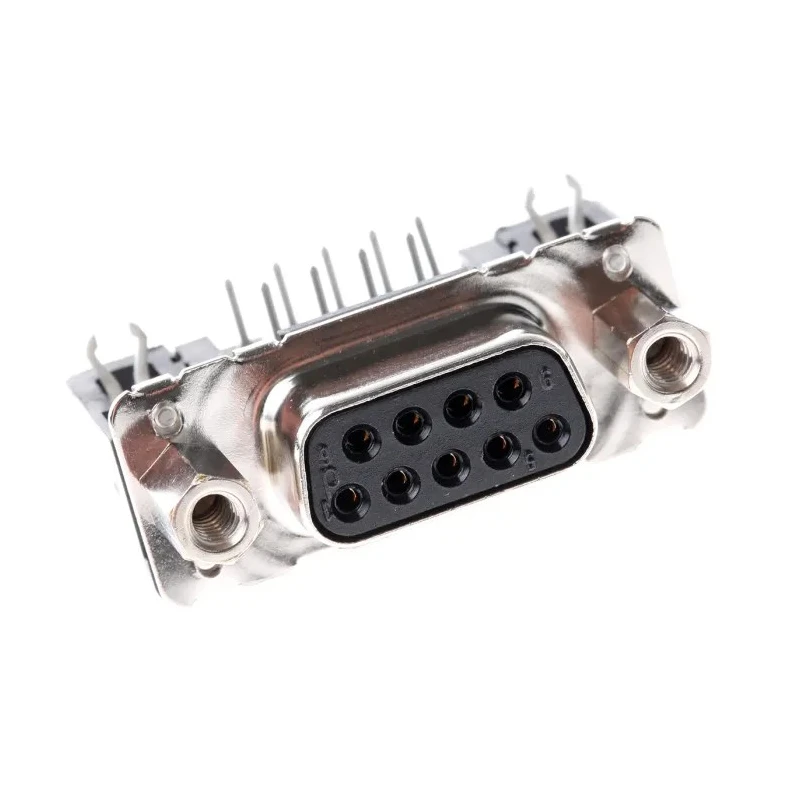

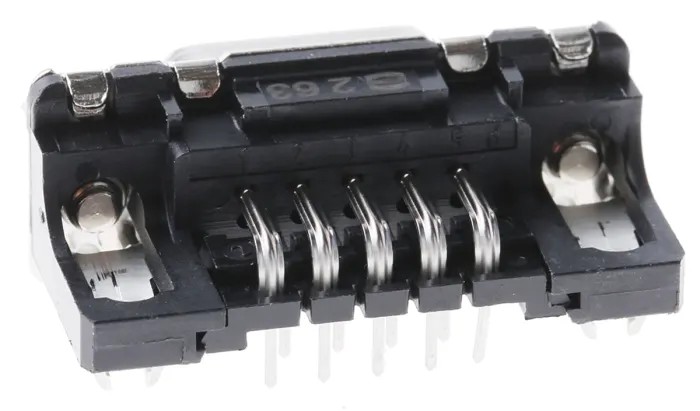

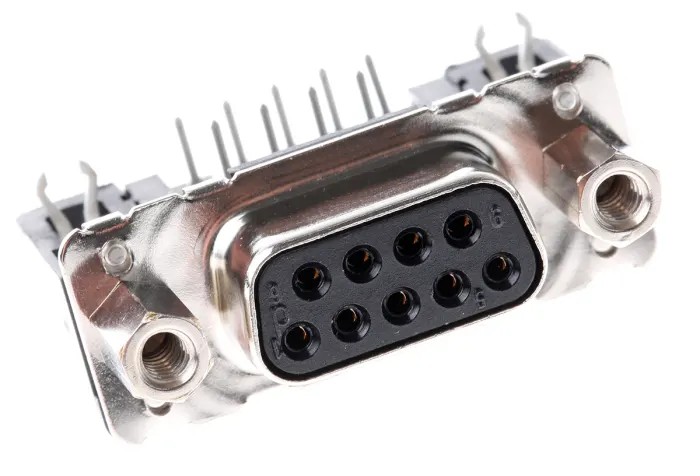

HARTING 9 Way Right Angle 2.74 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Screw Lock Female 09661526617

Free Delivery in India | Lowest Global Shipping Charges

HARTING 9 Way Right Angle 2.74 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Screw Lock Female 09661526617

Name: HARTING 9 Way Right Angle 2.74 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Screw Lock Female 09661526617
Brand: HARTING
SKU: 213081



Category D-Sub Connector Brand HARTING Condition New

Specifications

Country of Origin	Switzerland
Brand	HARTING
Orientation	Right Angle
Current	7.5A
Mount Type	Through Hole
Housing Material	Steel
Contact Material	Copper Alloy
Mounting Hardware	4 to 40 UNC Screw Lock
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Pitch	2.74mm
Contact Plating	Gold
Number of Contacts	9
Contact Gender	Female
Connector Gender	Female
Connector Type D	D-Sub

Key Features

Featuring a durable steel housing for enhanced protection and longevity.
Equipped with 9 female contacts capable of carrying up to 7.5 amps each.
Right angle orientation allows for compact PCB mounting arrangements.
Mounts via through hole termination for secure and stable installation.
Incorporates a 4 to 40 UNC screw lock for reliable connector locking.
Contacts are made from copper alloy and plated in gold for optimal conductivity and corrosion resistance.
Operates safely within -55°C to 125°C temperature range.
Solder termination type ensures solid electrical and mechanical contact.

Product Description

HARTING 09661526617 9 Way Right Angle 2.74 mm Pitch Through Hole D-Sub Connector is designed for robust and reliable electronic connections in industrial, manufacturing, and communication applications. This female connector features a right-angle orientation ideal for compact PCB layouts and cable-to-board interfacing.

The connector housing is constructed from steel, providing excellent mechanical strength and shielding. The contacts, made of copper alloy and gold-plated, ensure superior electrical conductivity and corrosion resistance, facilitating signal integrity in demanding environments.

Supporting a maximum current of 7.5A, this connector safely operates across a wide temperature range from -55°C to 125°C, suitable for harsh operating conditions.

The mounting hardware consists of a 4 to 40 UNC screw lock, guaranteeing secure mating and resistance to vibration or accidental disconnection. Its through-hole mount type allows for stable installation on circuit boards, with solder termination ensuring a reliable electrical connection.

Manufactured in Switzerland and compliant with IEC 60 807 standards, this D-Sub Connector meets stringent quality and performance criteria expected in industrial and electronic component supply chains.

Durable steel housing for robust protection. 9 gold-plated female contacts for reliable signal transmission. Right angle design allows space-efficient PCB mounting. Through-hole solder termination for solid connectivity.

4 to 40 UNC screw lock secures connector mating. Operational temperature range of -55°C to 125°C. Copper alloy contact material optimizes conductivity. Compliance with IEC 60 807 standards. Manufactured in Switzerland ensuring quality craftsmanship.

This connector is ideal for use in electronics manufacturing, communication devices, industrial automation, and other professional applications requiring dependable, high-quality D-Sub connections. Explore more industrial-grade connectors and components on EnvMart for comprehensive solutions.
