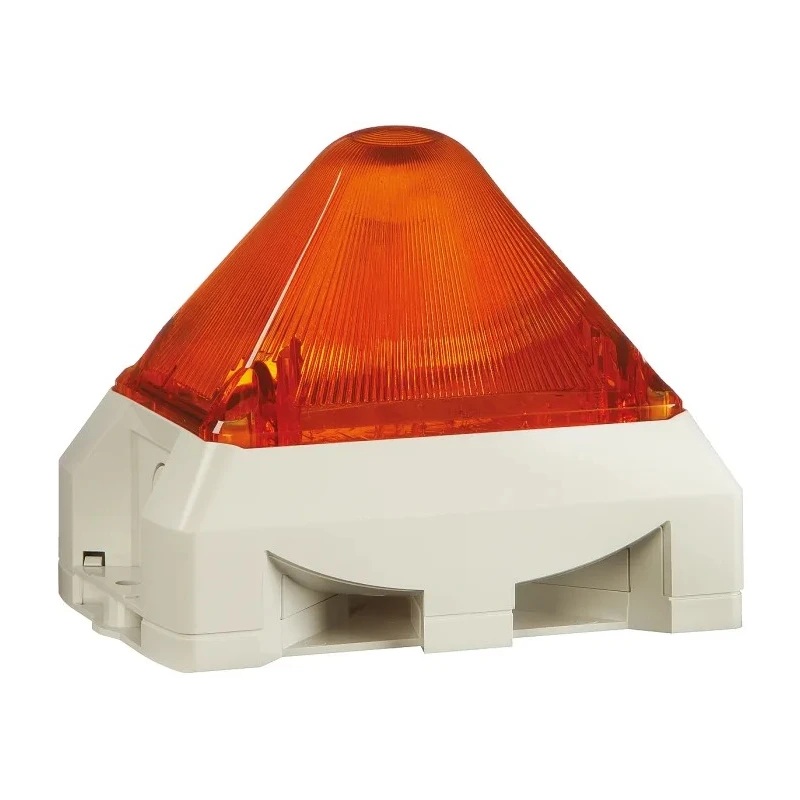

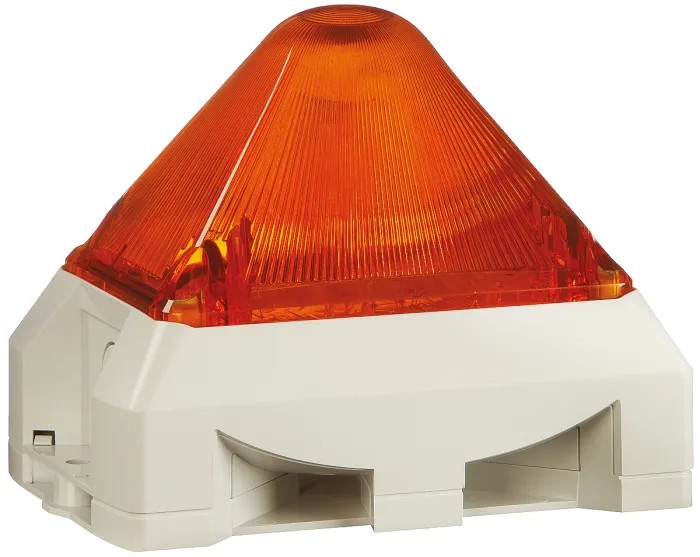

Pfannenberg PY X-MA-10 Series Amber Sounder-Beacon Combination 230V AC 100 dB IP66 ABS/Polycarbonate Housing 21555104055

Pfannenberg 21555104055 PY X-MA-10 Series Sounder-Beacon Combination is a premium industrial automation signalling device designed for high visibility and reliable alerting. The device operates on 230V AC power and features an amber xenon lamp providing a flashing light effect combined with an electronic sounder delivering an output of 100 dB at 1 meter. This combination ensures effective visual and audible alarms for industrial sites.

The sounder-beacon features a robust housing constructed from high-quality ABS and polycarbonate materials finished in grey, giving it an IK08 impact resistance rating and IP66 ingress protection to withstand harsh environments. It operates reliably within a temperature range of -40°C to 55°C, ensuring suitability in diverse climatic conditions.

This model offers 8 selectable alarm tones, making it adaptable to different alerting requirements. The flashing beacon generates a 10 Joule flash with four selectable flash rates, controlled via DIP switches to allow customization of light signalling. Installation is flexible with the base mounting type, designed for panel mounting and easy assembly.

Advanced electronic features include constant current regulation at 24 V AC/DC inputs to minimize load fluctuations, inrush current limitation, and undervoltage detection, enhancing safe and stable operation. Complete synchronization is possible on multi-flashing light systems, optimizing coordinated signalling in complex industrial setups.

The product is UL standard compliant with pending approval and is manufactured in Germany, ensuring high quality and reliability. This sounder-beacon combination is commonly used across electrical automation, manufacturing plants, HVAC systems, water treatment facilities, and other industrial applications requiring effective alarm and warning signals.

The device features an amber xenon lamp that delivers a flashing light effect for high visibility. Operates on 230V AC supply with a current consumption of 75mA. Sounder is electronic type with 8 selectable alarm tones at 100 dB sound level measured at 1 meter.

Constructed with grey ABS/Polycarbonate housing ensuring durability and impact resistance (IK08 rating). The product is rated for a temperature range of -40°C to 55°C and provides IP66 ingress protection. Equipped with a base mount type facilitating easy installation and panel mounting.

Includes safety features such as electronic constant current regulation, inrush current limitation, and undervoltage detection. The flashing beacon provides a 10 Joule flash energy with selectable flash rates via DIP switch.

Suitable for industrial automation, electrical, HVAC, manufacturing, and water treatment signaling applications. Manufactured in Germany with UL standards compliance and a 10-year warranty. Explore more automation signalling devices and sounder beacon solutions on EnvMart for your industrial safety and control needs.
