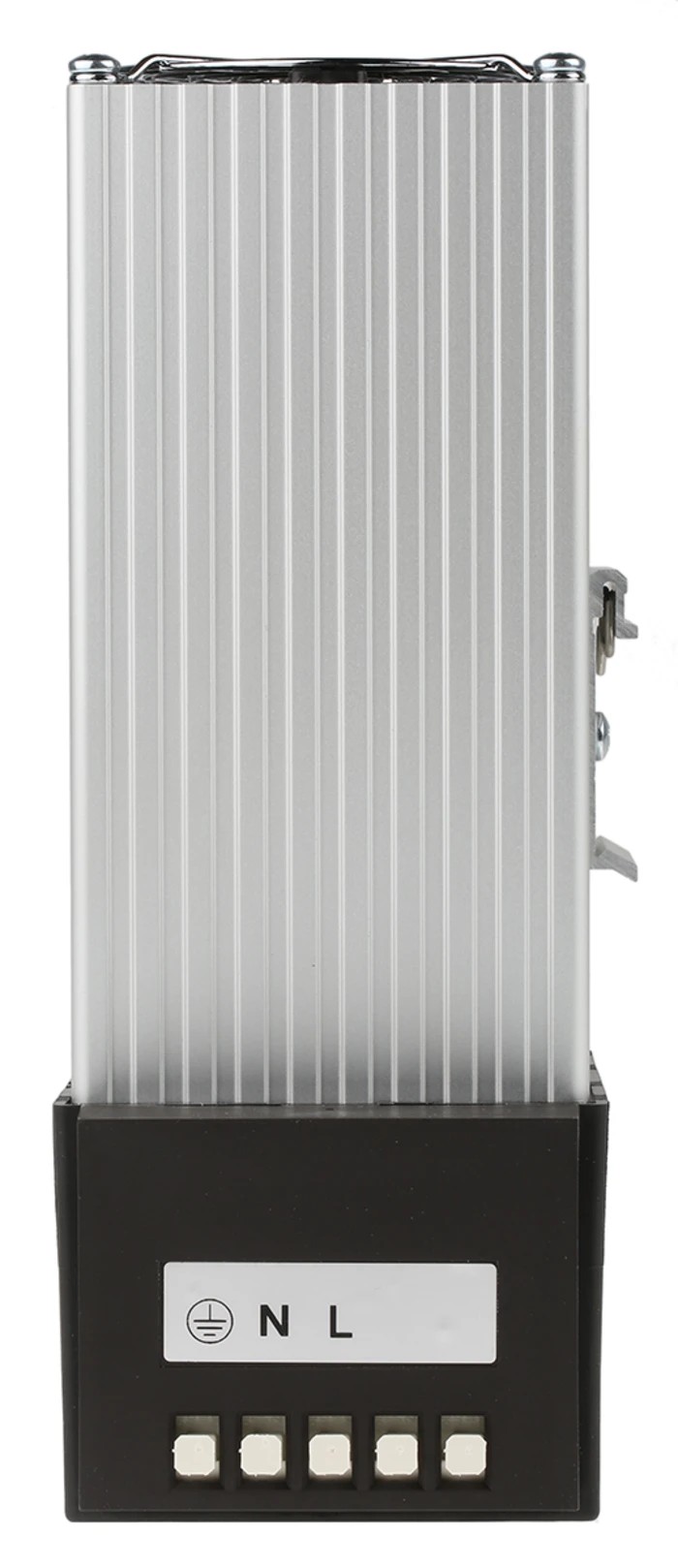

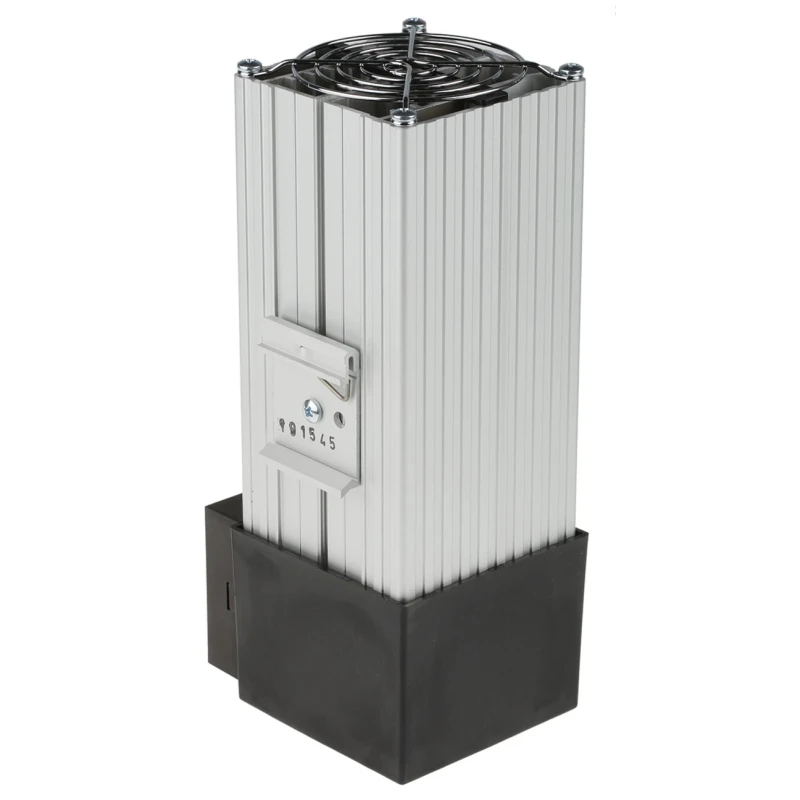

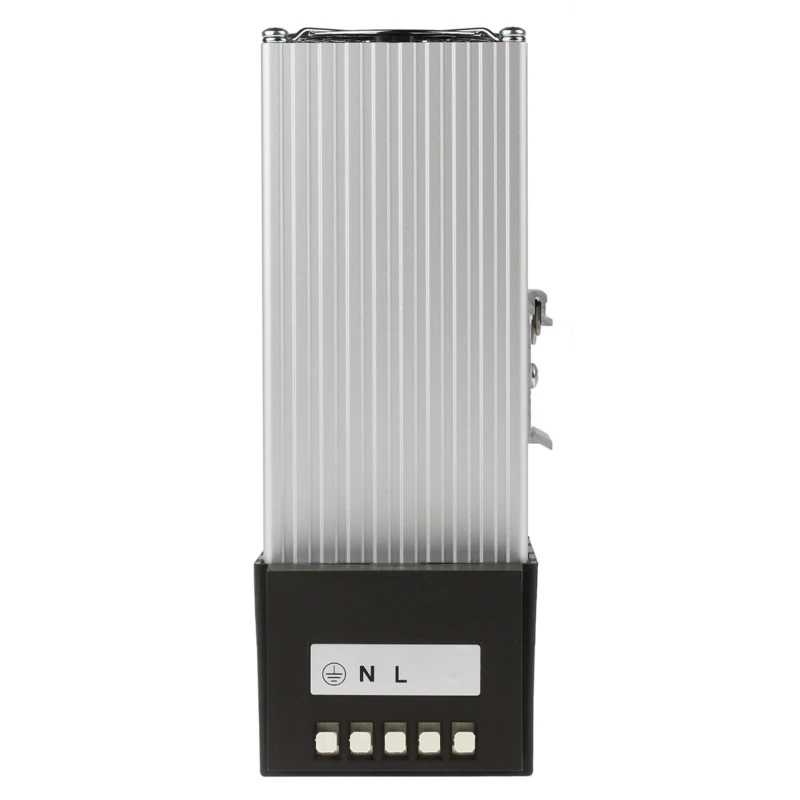

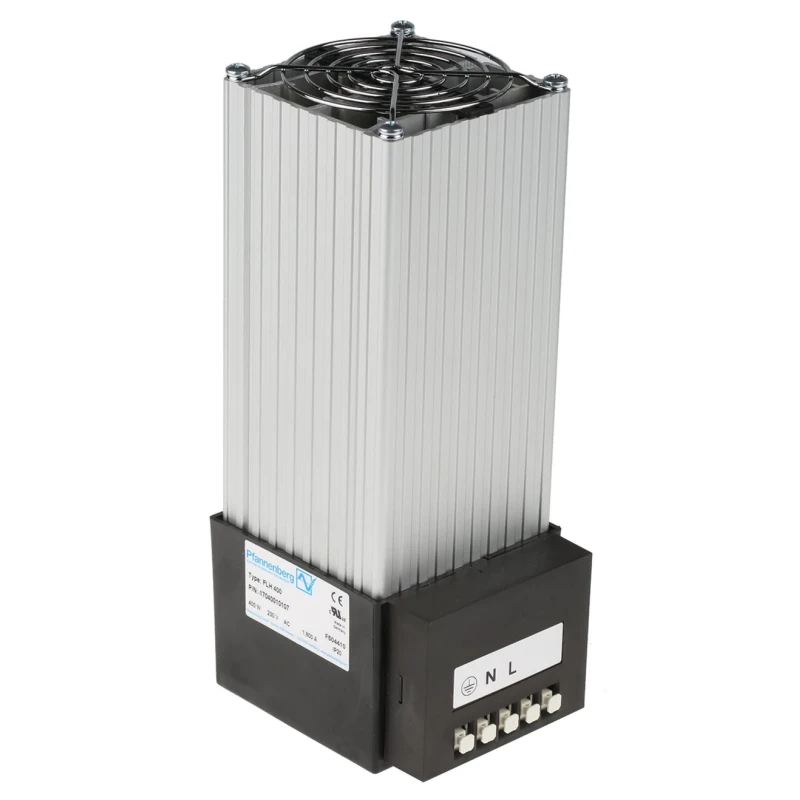

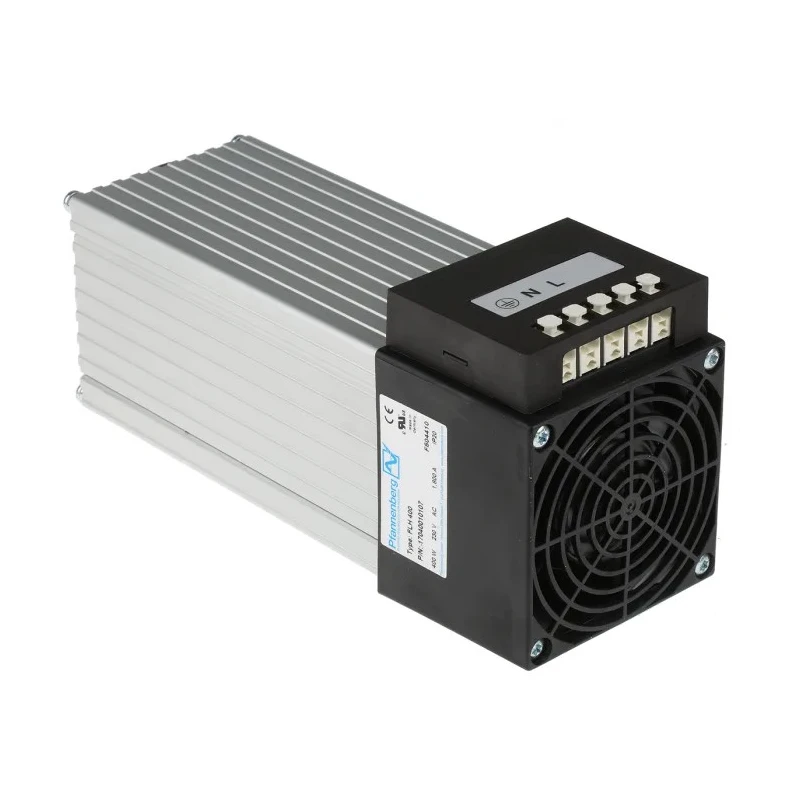

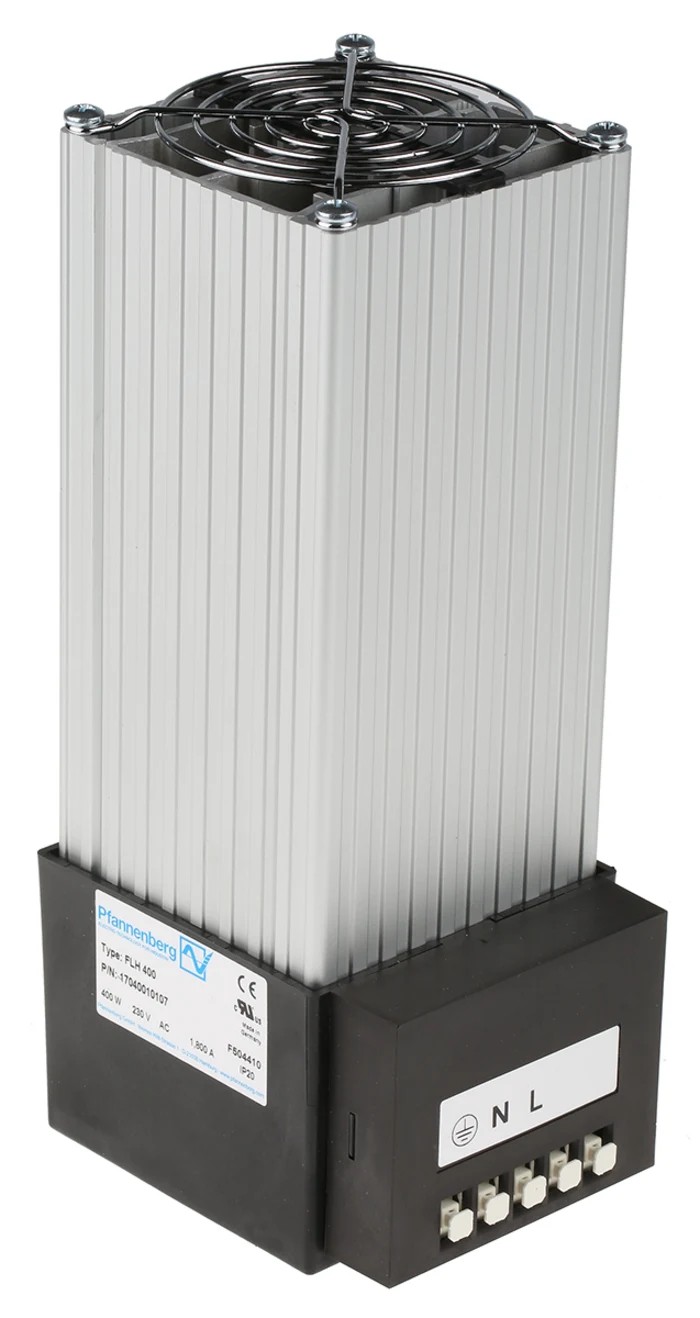

Pfannenberg Enclosure Heater, 230V AC, 400W Output Power, Snap Mount Type, IP20 17040010107

Pfannenberg 17040010107 Enclosure Heater is engineered for industrial and electrical enclosure heating, operating at 230V AC and delivering 400W output power. It provides a reliable heating solution to maintain optimal temperature inside enclosures, protecting sensitive electronic components from condensation and cold conditions.

This model features a plug terminal connection and comes with a connecting cable, allowing convenient and secure installation. Its snap-in mounting mechanism is compatible with a 35mm DIN-rail, following European EN 50022 standards, to facilitate straightforward assembly in industrial control panels and enclosures.

The enclosure heater maintains a surface temperature of 85 degrees Celsius with a controlled operating range from -40°C to +70°C. Designed with an aluminium extrusion body finished with clear anodising, it ensures corrosion resistance and mechanical strength. The airflow rate is 61 cubic meters per hour at 60Hz frequency, promoting effective heat distribution within the enclosure.

It supports both 50Hz and 60Hz power frequencies, providing flexibility in different electrical environments. The resistance heating element is equipped with a temperature monitoring function to ensure efficient operation and thermal protection.

The heater holds an IP20 ingress protection rating, suitable for installation in environments protected from water ingress but safe against access to hazardous parts. It is designed for vertical mounting with airflow exiting at the top, facilitating optimal heat flow within the enclosure.

Compliant with international certifications including WEEE directives, cURus, UKCA, EAC, and UL-RECOG approvals, this enclosure heater meets essential regulatory and safety standards across multiple regions.

Accessories such as thermostats FLZ510, FLZ520, FLZ530, and hygrostat FLZ600 are available separately to extend functionality and control precision.

Environmentally and industrially suited for automation, electrical enclosures, manufacturing, and HVAC applications, this Pfannenberg heater ensures protection and longevity of enclosed electrical systems.

Explore more Enclosure Heaters and industrial heating devices at EnvMart for comprehensive application solutions. Operates effectively with air flow of 61 cubic meters per hour. Constructed with aluminium extrusion and clear anodised finish for durability.

Snap-in mounting suitable for 35mm DIN-rail compliant with EN 50022. Equipped with plug terminal and connecting cable for easy installation. Maintains surface temperature at 85°C with an operating range from -40°C to 70°C.

IP20 rated for protection against solid objects. Applicable for vertical mounting position with airflow exiting at top. Compatible with both 50Hz and 60Hz frequency power supplies. Designed with resistance type heating element featuring temperature monitoring.

Compliant with standards including WEEE, cURus, UKCA, EAC, and UL-RECOG.
