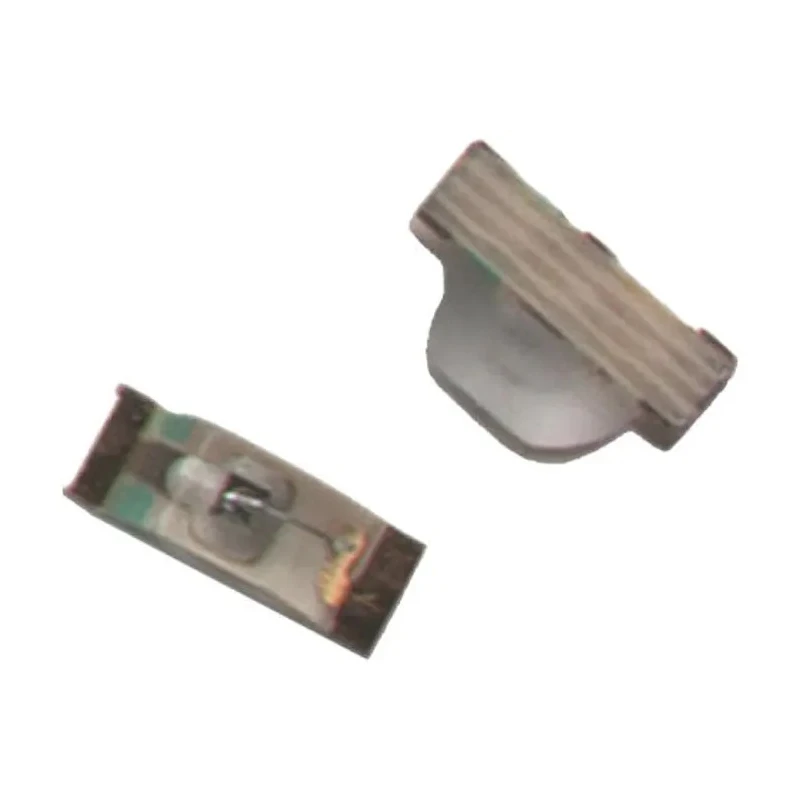

Broadcom 1.9 V Orange LED 1606 Surface Mount HSML HSML-C120

Name: Broadcom 1.9 V Orange LED 1606 Surface Mount HSML HSML-C120
Brand: Broadcom
SKU: 212677
Price: 0.24 USD
Availability: InStock



Category LED - Light Emitting Diodes Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Model	HSML-C120
Packaging	Tape & Reel
Mount Type	Surface
Series	HSML
Maximum forward current	25mA
Viewing angle	155 °
Package Type	1606
Standards/Approvals	RoHS
LED Colour	Orange
Dominant Wavelength	605nm
Forward Voltage	1.9V
Number of Pins	2
LED Luminosity	90 mcd
Maximum Power Dissipation	60mW
Lens Dimensions	1.6 x 1 x 0.6 mm
Lens Shape	Dome
Lens Finish	Untinted, Non-Diffused

Key Features

Compact 1606 package size with dome-shaped lens measuring 1.6 x 1 x 0.6 mm.
Forward voltage of 1.9 V with a maximum forward current of 25 mA.
Emits bright orange light with a dominant wavelength of 605 nm and luminosity of 90 mcd.
Wide viewing angle of 155 degrees for broad illumination distribution.
Designed for surface mount technology (SMT) with tape and reel packaging, enabling efficient automated assembly.
Features RoHS compliance ensuring environmentally friendly manufacturing standards.
Operating temperature range from -30°C to +85°C for reliable performance in varied conditions.
Ideal for keypad and push-button backlighting, LCD display illumination, symbol backlighting, and front panel indicators.

Product Description

Broadcom HSML-C120 Orange LED 1.9 V 1606 Surface Mount is a high-quality light emitting diode designed for a variety of electronic and industrial uses. Operating at a forward voltage of 1.9 volts and handling a maximum current of 25 milliamps, it delivers consistent and reliable illumination.

This LED features a compact 1606 package footprint with dimensions of 1.6 mm length, 1 mm width, and 0.6 mm thickness, featuring a dome-shaped, untinted, and non-diffused lens that provides a clear orange light emission. The dominant wavelength of this LED is 605 nanometers with a luminosity of 90 millicandela, producing bright and vivid orange indications.

The device has a wide viewing angle measuring 155 degrees, suitable for extensive area lighting. Its surface mount technology design (SMT) allows easy integration into printed circuit boards using tape and reel packaging for automated manufacturing processes.

Certified to meet RoHS standards, this LED supports environmentally conscious product designs. The operating temperature range of -30°C to +85°C ensures stable operation in diverse environments.

Common applications include keypad backlighting, push-button illumination, LCD backlighting, symbol backlighting, and front panel indicators widely used in consumer electronics, industrial control panels, and instrumentation.

Compact 1606 package with dome lens measuring 1.6 x 1 x 0.6 mm. Maximum forward current rating of 25 mA with 60 mW power dissipation. Bright orange emission at dominant wavelength 605 nm. Wide 155° viewing angle for broad light spread.

Compatible with IR solder processes and tape & reel packaging. RoHS certified for environmental compliance. Operating temperature range from -30°C to +85°C. Applications include backlighting and indicators in electronic assemblies.
