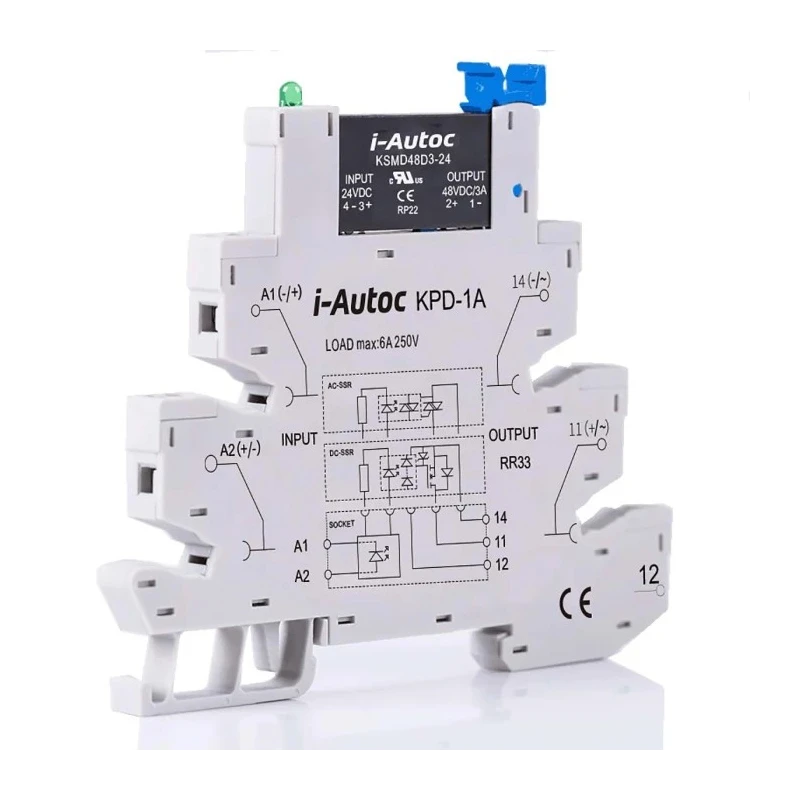

i-Autoc Solid State Interface Relay PCB Terminal DIN Rail Mount, KSMD48D4-12D
Specifications
| Country of Origin | China |
|---|---|
| Brand | i-Autoc |
| Dimensions | 6.2 x 75.6 x 89mm |
| Height | 89mm |
| Operating Temperature Range | -30 → +80°C |
| Length | 6.2mm |
| Model | KSMD48D4-12D |
| Depth | 75.6mm |
| Mounting Type | DIN Rail |
| Special Features | COMS Drive Compatible, Optoelectronic Isolation, TTL |
| Series | KSMD |
| Maximum Operating Temperature | +80°C |
| Dielectric strength | 2500 Vrms |
| Minimum Operating Temperature | -30°C |
| Input current | 25mA |
| Terminal type | PCB Pin |
| Standards Met | CE Certified, cULus |
Key Features
- Supports DIN rail and PCB pin terminal installation.
- Optoelectronic isolation enhances protection and signal reliability.
- Compatible with COMS drive and TTL signals for broad control system integration.
- High dielectric strength rated at 2500 Vrms ensures robust performance.
- Operates reliably in temperature range from -30°C to +80°C.
- Input current requirement of 25mA.
- Built for high-density PCB mounting or PLC control solutions.
Product Description
i-Autoc KSMD48D4-12D is a solid state interface relay engineered for efficient DIN rail and PCB mounting in automation and control systems. Combining advanced optoelectronic isolation with COMS drive and TTL signal compatibility, this relay delivers reliable signal conditioning for industrial applications.
The relay features robust PCB pin terminals, allowing straightforward installation onto circuit boards and DIN rails. With a compact dimension of 6.2 x 75.6 x 89mm, the KSMD series supports high-density configurations, ideally suited for PLC control panels and automation environments.
Supports DIN rail and PCB pin terminal installation. Optoelectronic isolation enhances protection and signal reliability. Compatible with COMS drive and TTL signals for broad control system integration. High dielectric strength rated at 2500 Vrms ensures robust performance.
Operates reliably in temperature range from -30°C to +80°C. Compact form factor: 6.2 x 75.6 x 89mm. Input current requirement of 25mA. Built for high-density PCB mounting or PLC control solutions.
The relay meets CE and cULus standards, ensuring suitability for industrial, laboratory, and process control environments where precise signal transmission and isolation are critical. Typical use cases include signal conditioning, electronic circuit protection, and integration within manufacturing automation, water treatment plants, and commercial equipment. The KSMD series is also RoHS compliant for eco-friendly deployments.
Discover more industrial relays and interface solutions from i-Autoc in the Solid State Relay category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates reliably within a temperature range of -30°C to +80°C.
This model has compact dimensions of 6.2 x 75.6 x 89 mm.
It supports DIN rail and PCB pin terminal installation, making it suitable for high-density configurations.
The input current requirement is 25mA.
The relay has a high dielectric strength rated at 2500 Vrms, ensuring robust performance.
Yes, it is compatible with COMS drive and TTL signals for broad control system integration.
The relay meets CE and cULus standards, ensuring suitability for industrial and laboratory environments.
It features optoelectronic isolation, which enhances protection and signal reliability.
Typical applications include signal conditioning, electronic circuit protection, and integration within manufacturing automation.
The model name is KSMD48D4-12D.
The depth of this relay is 75.6 mm.
The relay is manufactured in China.
