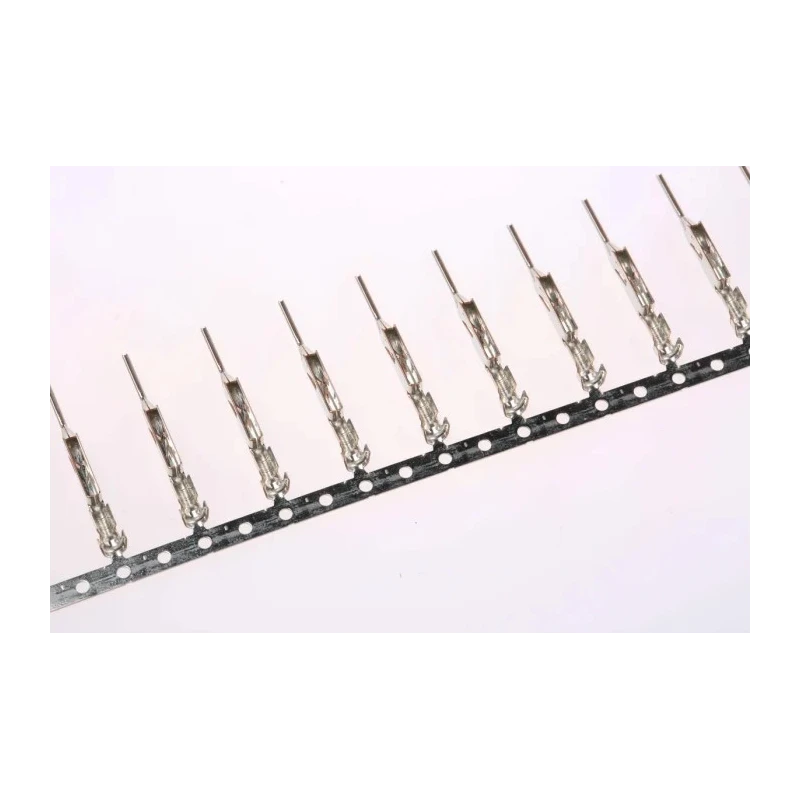

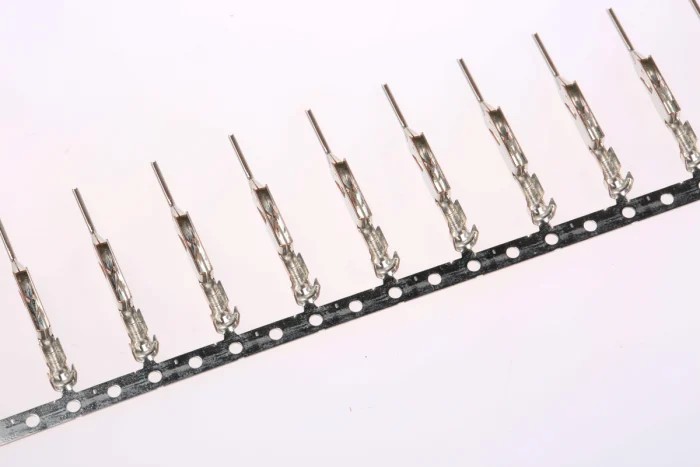

JAE IL-AG5 Series Male Crimp Terminal, 22 AWG Min Crimp, 18 AWG Max IL-AG5-PC1-5000

Free Delivery in India | Lowest Global Shipping Charges

JAE IL-AG5 Series Male Crimp Terminal, 22 AWG Min Crimp, 18 AWG Max IL-AG5-PC1-5000



Category Crimp Terminal Brand JAE Condition New

Specifications

Country of Origin	India
Brand	JAE
Model	IL-AG5-PC1-5000
Gender	Male
Contact Material	Copper Alloy
Series	IL-AG5
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
For Use With	IL-AG5 Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.3mm²
Maximum Wire Size mm²	0.85mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	18AWG
Maximum Contact Resistance	10mΩ

Key Features

Designed specifically for use with IL-AG5 Connector Housing.
Constructed with copper alloy contact material plated with tin for enhanced conductivity.
Supports wire sizes from 22 AWG (0.3 mm²) minimum to 18 AWG (0.85 mm²) maximum.
Crimp termination type ensures secure and durable wire connection.
Operates reliably between -40°C and 85°C temperature range.
Maximum contact resistance is 10 milliohms ensuring low electrical resistance.
Mechanical lock design assures positive mating in automotive instrument panel applications.
Features a double lock mechanism to prevent contact dislodging and unique housing configuration to avoid mismating.

Product Description

JAE IL-AG5-PC1-5000 Male Crimp Terminal is engineered for precise and reliable wire termination in electronic and automotive applications, especially automotive instrument panel systems. It supports wire sizes ranging from 22 AWG (minimum) to 18 AWG (maximum) and is designed to fit IL-AG5 Connector Housing, assuring compatibility and ease of installation.

The contact material is copper alloy plated with tin, providing excellent electrical conductivity and corrosion resistance. This terminal features a crimp termination type, simplifying the attachment process while ensuring a strong mechanical and electrical connection.

The product operates effectively within an operating temperature range of -40°C to 85°C, making it suitable for varied industrial environments. With a maximum contact resistance of only 10 milliohms, it ensures minimal electrical losses for optimal device performance.

Mechanical features include a positive mechanical lock to guarantee secure mating and a double lock mechanism preventing contact dislodgement. The unique housing configuration further helps prevent mismating, providing reliability and safety in high-demand applications.

Designed for use with IL-AG5 Connector Housing. Copper alloy contacts plated with tin for enhanced durability and conductivity. Supports 22 AWG minimum and 18 AWG maximum wire sizes. Crimp-type termination for secure wire connection.

Operates reliably between -40°C and 85°C. Maximum contact resistance of 10 milliohms. Mechanical lock for positive mating and double lock mechanism to prevent dislodgement. Unique housing design prevents mismating. Well-suited for automotive, electronics, and industrial applications.

These high-reliability terminals find widespread use in automotive, electronics, and industrial manufacturing, where secure and durable electrical connections are critical. Browse the Crimp Terminal category on EnvMart for more certified connectors and accessories from reputed brands including JAE.
