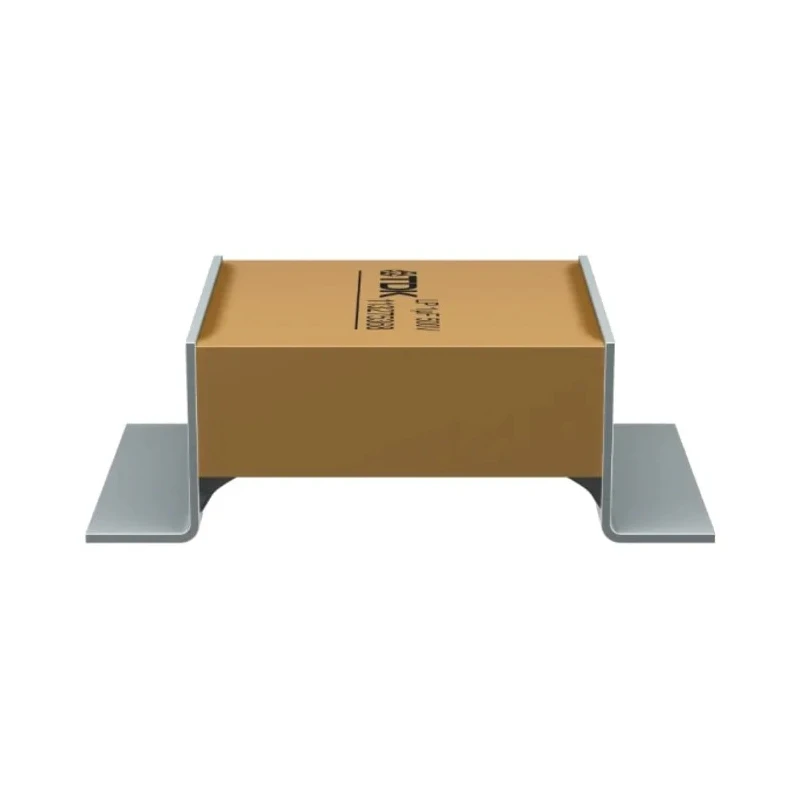

TDK 500 nF Multilayer Ceramic Capacitor, 700V dc, ±20 %, Surface Mount, PLZT Dielectric, CeraLink LP Series B58031I7504M062

TDK B58031I7504M062 is a multilayer ceramic capacitor designed with a nominal capacitance of 500 nF and rated for 700V direct current operation. This surface mount capacitor utilizes PLZT dielectric material, offering high capacitance density and robustness under high temperature and voltage stresses.

The capacitor features a tolerance of ±20 % and is qualified under the AEC-Q200 automotive standard, attesting to its quality and reliability in automotive and industrial applications. It operates efficiently in temperature ranges from -40°C to 150°C, making it suitable for harsh environments.

Key performance attributes include high ripple current capability, low equivalent serial inductance (ESL), and low equivalent serial resistance (ESR), resulting in low power loss and dielectric absorption. It handles high frequencies up to several megahertz, ensuring optimal performance in modern electronic circuits.

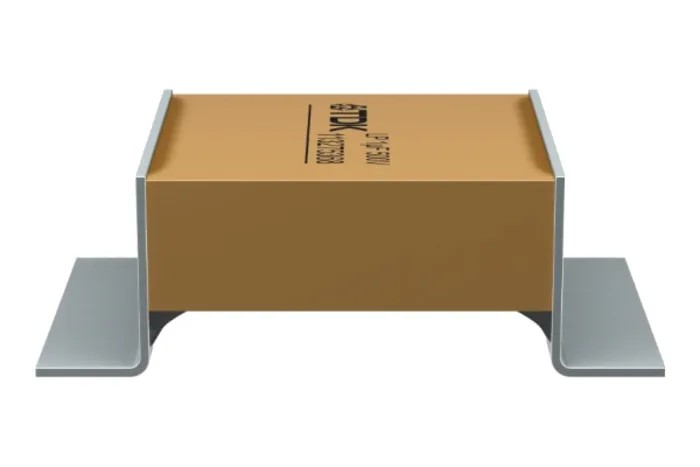

The CeraLink LP series capacitor is designed with a compact L-Style package measuring 6.84 mm in length, 7.85 mm in width, and 4 mm in height. It is terminated with solder type connections and packaged in tape and reel format for efficient automated PCB assembly, suitable for mass production.

Constructed with PLZT dielectric for enhanced performance. High ripple current capability for demanding electrical conditions. Meets AEC-Q200 automotive reliability standards. Operates in wide temperature range from -40°C to 150°C.

Low ESL and ESR minimize power loss in circuits. Optimized for high frequency applications up to several MHz. Compact L-Style package dimensions ensure space-saving design. Designed for reflow soldering assembly processes.

This TDK multilayer ceramic capacitor is suitable for use in industrial, automotive, telecommunications, and consumer electronics applications requiring stable capacitance with high voltage and temperature endurance. It offers reliable performance for circuit filtering, coupling, and decoupling tasks in electronic equipment.
