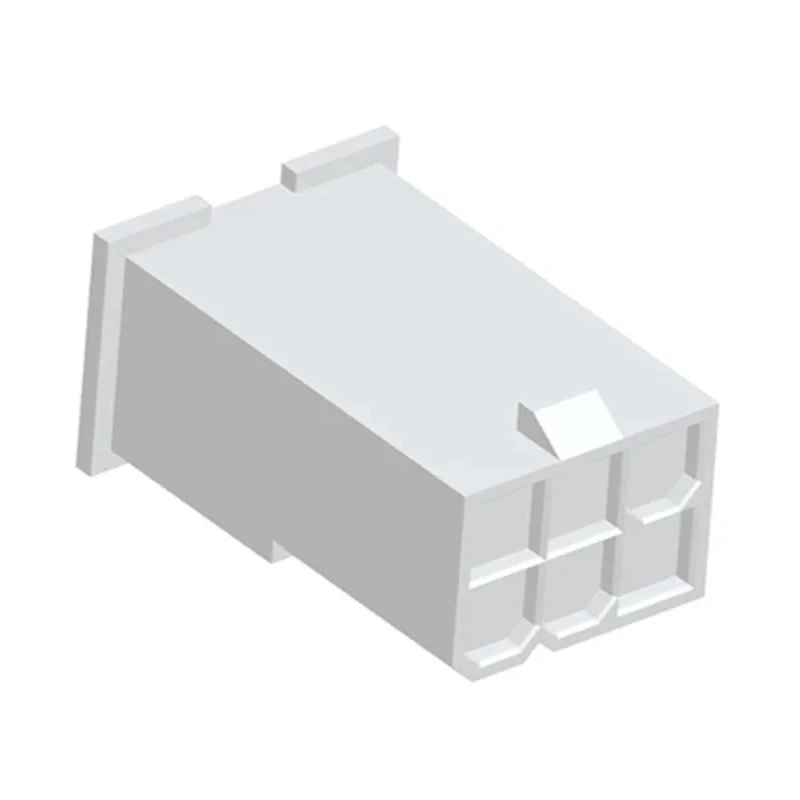

TE Connectivity VAL-U-LOK Male Connector Housing, 6 Contacts, 2 Row, 4.2 mm Pitch, Panel Mount, Straight 2296206-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 13.8mm |
| Width | 23.8mm |
| Mount Type | Panel |
| Housing Material | Polybutylene Terephthalate |
| Series | VAL-U-LOK |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| For Use With | Wire to Panel Connector, Wire to Wire Connector |
| Standards/Approvals | Glow wire compliant, UL 94V-0 rated |
| Number of Contacts | 6 |
| Connector Gender | Male |
Key Features
- Features double row configuration for reliable wire-to-wire or wire-to-panel connections.
- Constructed from polybutylene terephthalate for durability and dielectric strength.
- Panel mount, straight orientation enables secure and easy installation in equipment housings.
- Integral housing locking latch ensures robust mating and safe retention of terminals.
- Keying mechanism allows accurate mating alignment and prevents misconnection.
- Supports optional Terminal Position Assurance (TPA) devices for enhanced terminal retention against vibration.
- Suitable for household appliances, industrial controls, HVAC systems, computers and lighting systems.
- VAL-U-LOK series is intermateable with other connectors and headers within the same range.
Product Description
The TE Connectivity 2296206-6 is a VAL-U-LOK series male connector housing engineered to provide secure and reliable connections in electronic equipment. Equipped with a double row layout accommodating 6 contacts at a 4.2 mm pitch, it is ideal for wire-to-wire and wire-to-panel applications requiring multiple circuits within a compact footprint.
This model is constructed from polybutylene terephthalate, a robust engineering thermoplastic known for its excellent electrical insulation and mechanical properties. The connector features a straight, panel mount orientation, facilitating easy installation into device enclosures or control panels.
The housing is designed with an integral locking latch system that ensures strong mating retention and prevents accidental disconnects. Accurate mating alignment is achieved through an effective keying mechanism, reducing errors and improving overall reliability. Optional Terminal Position Assurance (TPA) devices can be fitted for added resistance to terminal back-out, especially in environments prone to vibration or mechanical shocks.
VAL-U-LOK plug housings are compliant with both glow wire test (EN/IEC 60335-1) and UL 94V-0 standards, enhancing safety and fire resistance in demanding applications. Terminal contacts and TPA devices are available separately to tailor assembly as per project requirements.
Typical applications include household appliances, desktop computers, indoor and outdoor lighting, security systems, industrial controls, HVAC control systems, and storage or networking equipment. The wide compatibility and robust design make it suitable for OEMs, panel builders, and system integrators in commercial and industrial electronics.
Compatible with the existing VAL-U-LOK connectors and headers, supporting broad integration in manufacturing systems. The product forms part of TE Connectivity's trusted range for secure electronic interconnection solutions in industrial and automation environments.
Discover more connector housings and accessories within the PCB Connector Housing category at EnvMart or browse the complete TE Connectivity portfolio.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this connector housing have a pitch of 4.2 mm.
This model supports 6 contacts in a double row configuration.
It is constructed from polybutylene terephthalate, which offers good electrical insulation and mechanical properties.
This connector housing is designed for panel mounting.
The dimensions of this housing are 13.8 mm in length and 23.8 mm in width.
Yes, it is glow wire compliant and rated UL 94V-0, enhancing its safety and fire resistance.
The connector housing features a straight orientation for easy installation.
It is suitable for applications such as household appliances, industrial controls, HVAC systems, and lighting systems.
Yes, it supports optional Terminal Position Assurance (TPA) devices for enhanced terminal retention against vibration.
It can be used for both wire-to-wire and wire-to-panel connections.
The keying mechanism allows for accurate mating alignment, preventing misconnection and improving reliability.
This connector housing belongs to the VAL-U-LOK series, which is intermateable with other connectors and headers within the same range.
