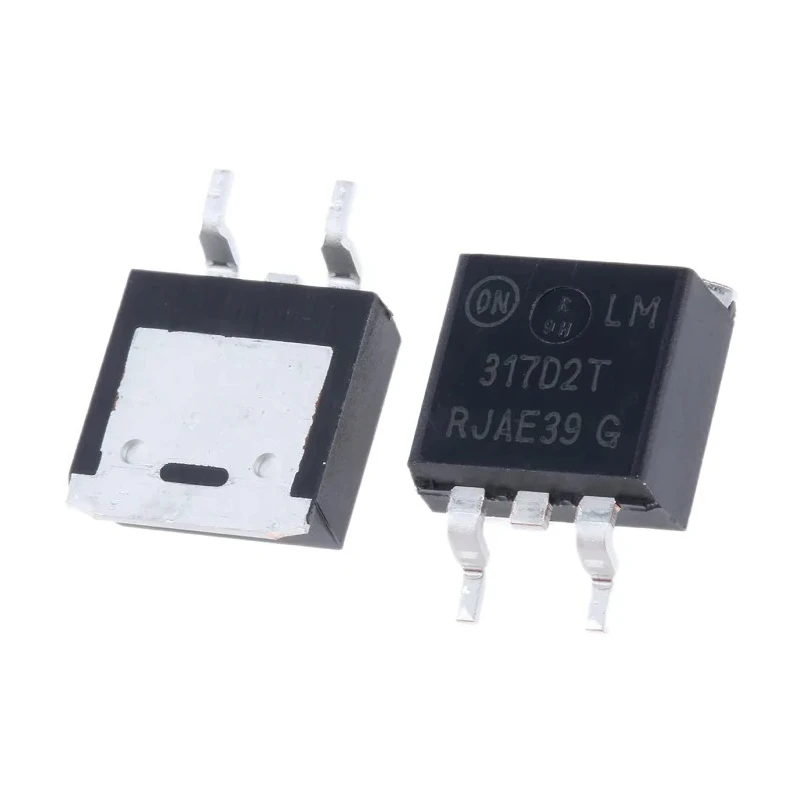

onsemi Adjustable Linear Voltage Regulator 1.25-37V 1.5A 40V Surface Mount 3-Pin LM317D2TR4G

Free Delivery in India | Lowest Global Shipping Charges

onsemi Adjustable Linear Voltage Regulator 1.25-37V 1.5A 40V Surface Mount 3-Pin LM317D2TR4G

Name: onsemi Adjustable Linear Voltage Regulator 1.25-37V 1.5A 40V Surface Mount 3-Pin LM317D2TR4G
Brand: onsemi
SKU: 212468
Price: 0.82 USD
Availability: InStock



Category Voltage Regulator Brand onsemi Condition New

Specifications

Country of Origin	India
Voltage	Regulators onsemi LM317D2TR4G, Voltage Regulator 40V 3-Pin RS Stock No
Brand	onsemi
Height	4.57mm
Length	10.24mm
Model	LM317D2TR4G
Width	9.35mm
Mount Type	Surface
Series	LM317
Output Current	1.5 A
Maximum Operating Temperature	125°C
Polarity	Positive
Maximum Input Voltage	40V
Output Voltage Range	1.25 V to 37 V
Standards/Approvals	Pb-Free, AEC-Q100, PPAP capable
Pin Count	3
Automotive Standard	AEC-Q100

Key Features

The regulator offers an adjustable output voltage range from 1.25 V to 37 V.
It supports a maximum output current of 1.5 A suitable for various applications.
Surface mount design with a compact 3-pin package allows for efficient PCB layout.
Built-in short circuit current limiting and thermal protection ensure safe operation.
Meets Pb-Free and automotive AEC-Q100 standards for automotive and industrial use.
Compact dimensions allow integration in space-constrained designs.
Supports floating operation for high-voltage applications.

Product Description

onsemi LM317D2TR4G is a highly reliable adjustable linear voltage regulator designed to provide output voltages ranging from 1.25 V up to 37 V. Rated for 1.5 A output current, it provides robust current supply for a wide range of electronic applications.

This device comes in a surface mount 3-pin package with compact dimensions of 10.24 mm length, 9.35 mm width, and 4.57 mm height, making it suitable for dense circuit board layouts.

It supports an input voltage maximum of 40 V, ensuring flexibility for varied power management needs. The product complies with Pb-Free requirements and automotive AEC-Q100 standards, making it especially suitable for automotive electronics and industrial applications that demand high-quality components.

Featuring advanced safety features such as short circuit current limiting, thermal shutdown protection, and safe-area compensation, this regulator offers dependable operation under challenging conditions. It supports floating operation for high-voltage applications, further expanding its versatility.

ON Semiconductor’s LM317 series is frequently used in custom voltage regulation tasks such as on-card voltage regulation as well as precision current regulation when combined with an appropriate external resistor.

The regulator provides adjustable output voltage between 1.25 V and 37 V to accommodate various voltage needs. It delivers output current up to 1.5 A, suitable for medium current applications. The device supports surface mount mounting type and features a 3-pin layout for easy PCB integration.

Enhanced automotive standard compliance (AEC-Q100 certified) ensures robustness in automotive environments. Compact form factor enables space-efficient design in power management circuits.

This voltage regulator IC is ideal for industrial, automotive, and consumer electronics applications requiring precise voltage and current control. Its advanced protection mechanisms and automotive-grade qualification provide assurance for demanding use cases.

Explore the comprehensive range of Voltage Regulators from onsemi on EnvMart for your next circuit design project.
