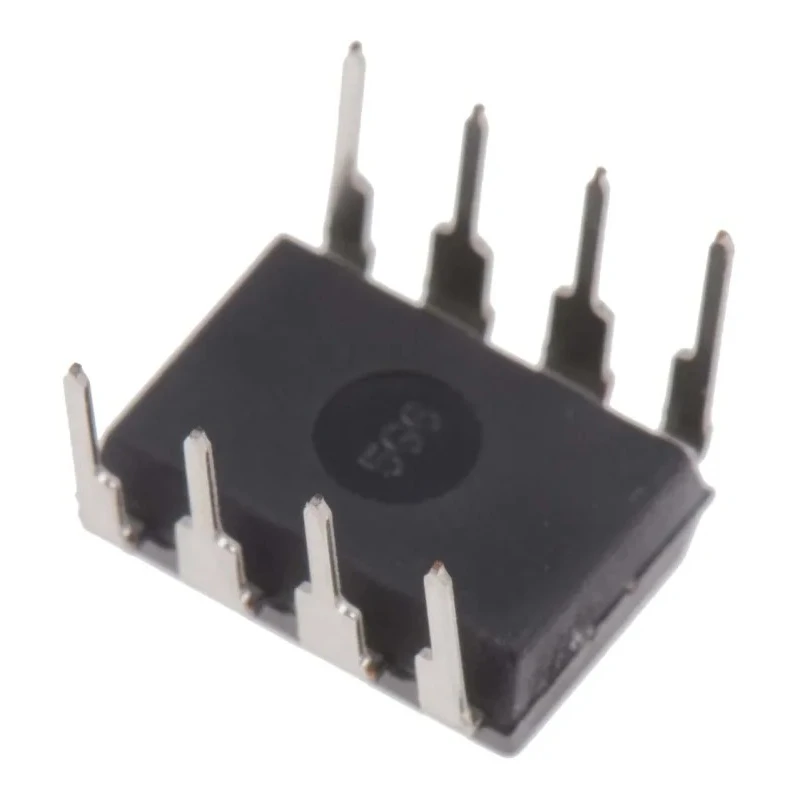

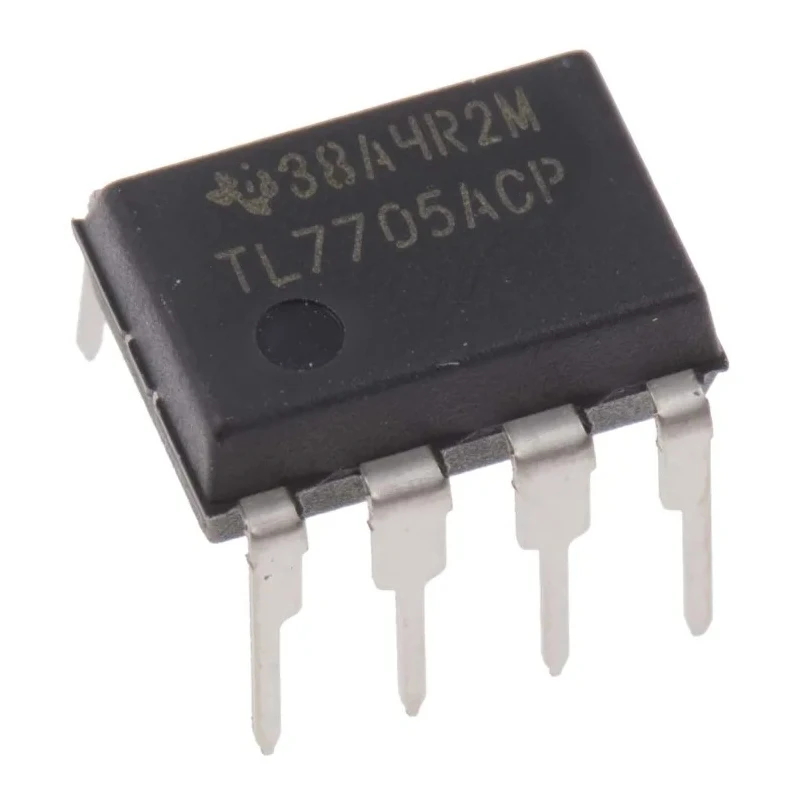

Texas Instruments Voltage Supervisor 1 Supervisor 8-Pin 4.6 V PDIP Through Hole TL7705ACP

Texas Instruments TL7705ACP voltage supervisor is a microprocessor supervisory and reset circuit designed to monitor power supply voltages with a fixed reset threshold of 4.6 V. It is housed in an 8-pin PDIP package with through hole mounting, making it suitable for desktop, laptop, notebook computers, test and measurement instruments, and battery-powered equipment.

This device features one voltage supervisor with an active low output driver, operating between a minimum supply voltage of 3.5 V and a maximum supply voltage of 18 V. It provides reliable voltage supervision without requiring a manual reset or watchdog timer, simplifying system design.

The TL7705ACP is designed to operate within temperatures ranging from 0°C to 70°C, delivering consistent performance in various industrial, laboratory, and electronic applications. The compact package dimensions of 8.26 mm height, 10.16 mm length, and 6.6 mm width facilitate easy integration into printed circuit boards.

Made in Mexico, this voltage supervisor adheres to stringent quality manufacturing processes, making it a dependable component for power supply monitoring and supervisory functions in embedded systems and power management designs.

The device operates with a minimum supply voltage of 3.5 V and maximum of 18 V. Active low output driver ensures clear voltage supervision signals. 8-pin PDIP package with through hole mounting offers durability and ease of installation.

No manual reset or watchdog timer simplifies the supervisory architecture. Temperature range of 0°C to 70°C supports various operating environments. Compact form factor: height 8.26 mm, length 10.16 mm, width 6.6 mm. Single voltage supervisor for focused supply voltage monitoring.

Manufactured in Mexico, meeting industry standards.

This Texas Instruments voltage supervisor is suitable for industrial, laboratory, construction, electronics manufacturing, and embedded system applications. It helps maintain device stability by preventing erroneous operations due to power supply faults.
