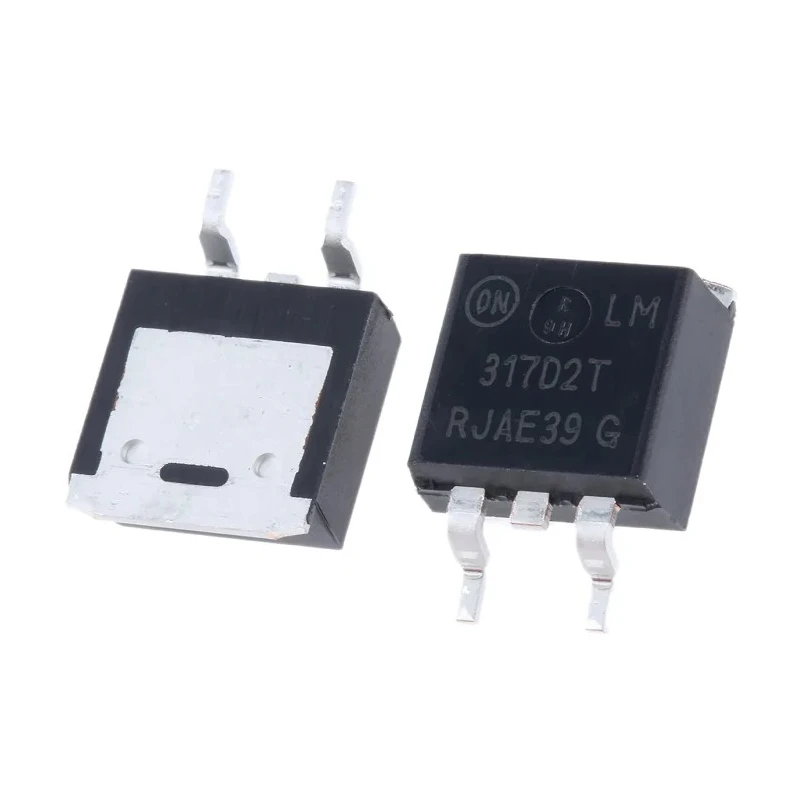

onsemi Adjustable Linear Voltage Regulator 40V 3-Pin Surface Mount LM317D2TR4G
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators onsemi, Voltage Regulator 40V 3-Pin RS Stock No |
| Brand | onsemi |
| Height | 4.57mm |
| Length | 10.24mm |
| Model | LM317D2TR4G |
| Width | 9.35mm |
| Mount Type | Surface |
| Series | LM317 |
| Output Current | 1.5 A |
| Maximum Operating Temperature | 125°C |
| Polarity | Positive |
| Maximum Input Voltage | 40V |
| Output Voltage Range | 1.25 V to 37 V |
| Standards/Approvals | Pb-Free, AEC-Q100, PPAP capable |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- Adjustable output voltage range from 1.25 V to 37 V allows versatile application use.
- Provides a maximum output current of 1.5 A suitable for on-card and programmable output regulation.
- Equipped with short circuit current limiting, thermal protection, and safe-area compensation for reliability.
- Compact surface mount package with length 10.24 mm, width 9.35 mm, and height 4.57 mm.
- Complies with Pb-Free standards and automotive standards (AEC-Q100) ensuring quality and automotive suitability.
- Supports floating operation for high-voltage applications.
- Ideal for use in power management IC systems in industrial and automotive electronics.
Product Description
onsemi LM317D2TR4G Adjustable Linear Voltage Regulator is a high-performance 3-pin positive voltage regulator designed for surface mount applications. It features an adjustable output voltage range from 1.25 V to 37 V and can deliver an output current of up to 1.5 A, making it suitable for a wide array of electronics including on-card regulation and precision current regulation.
This voltage regulator includes advanced protection functions such as short circuit current limiting, thermal shutdown, and safe-area compensation to ensure robust operation under demanding conditions. The compact dimensions (10.24 mm length, 9.35 mm width, and 4.57 mm height) of its surface mount package enable efficient PCB space usage.
Certified to Pb-Free environmental standards and the automotive AEC-Q100 qualification, the LM317D2TR4G supports automotive application environments requiring stringent quality standards. It also allows floating operation, beneficial in high-voltage designs.
Adjustable output voltage from 1.25 V to 37 V for versatile power regulation. Maximum output current of 1.5 A suitable for a broad range of electronic circuits. Short circuit and thermal protections enhance device safety and longevity.
Compact surface mount form factor optimized for modern PCB designs. Compliance with Pb-Free and automotive AEC-Q100 standards. Floating operation capability for high voltage applications.
This product is ideally suited for industries such as industrial electronics, automotive power management, manufacturing, and embedded system design requiring reliable voltage regulation solutions.
Explore more power management integrated circuits and Voltage Regulators at EnvMart for comprehensive electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage range of this model is adjustable from 1.25 V to 37 V, allowing for versatile application use.
It can deliver a maximum output current of 1.5 A, making it suitable for various electronic circuits.
This unit has a length of 10.24 mm, a width of 9.35 mm, and a height of 4.57 mm, making it compact for surface mount applications.
The maximum input voltage for the LM317D2TR4G is 40V.
Yes, it is equipped with short circuit current limiting, thermal shutdown, and safe-area compensation for enhanced reliability.
It complies with Pb-Free standards and automotive AEC-Q100, ensuring quality and suitability for automotive applications.
This model uses a surface mount type, which is optimized for modern PCB designs.
The maximum operating temperature for the LM317D2TR4G is 125°C.
This voltage regulator has a positive polarity.
It is ideally suited for power management in industrial electronics, automotive applications, and embedded system designs.
This voltage regulator features a 3-pin configuration.
The LM317D2TR4G belongs to the LM317 series of voltage regulators.
