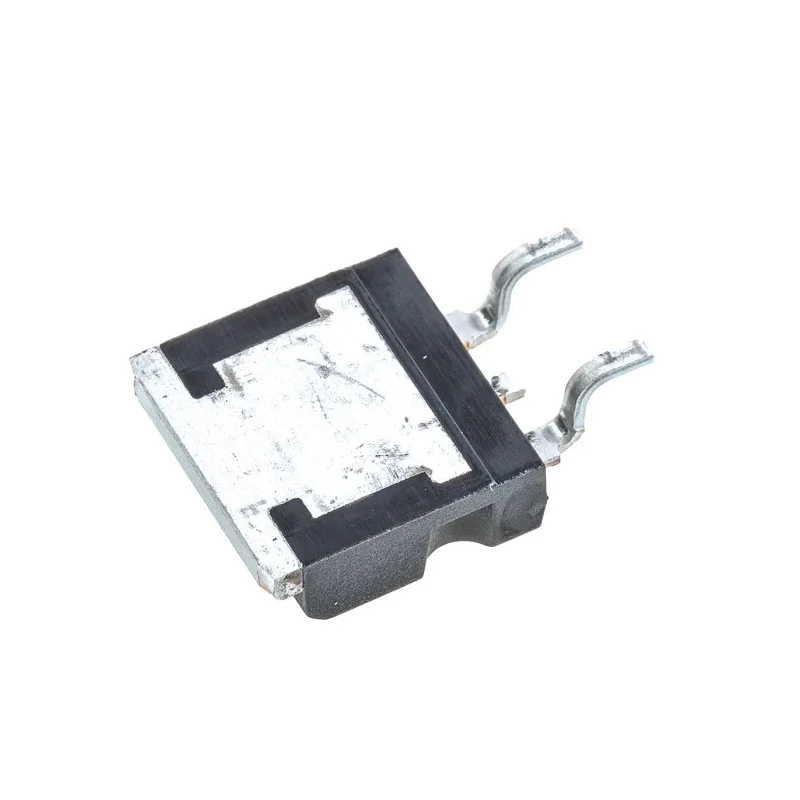

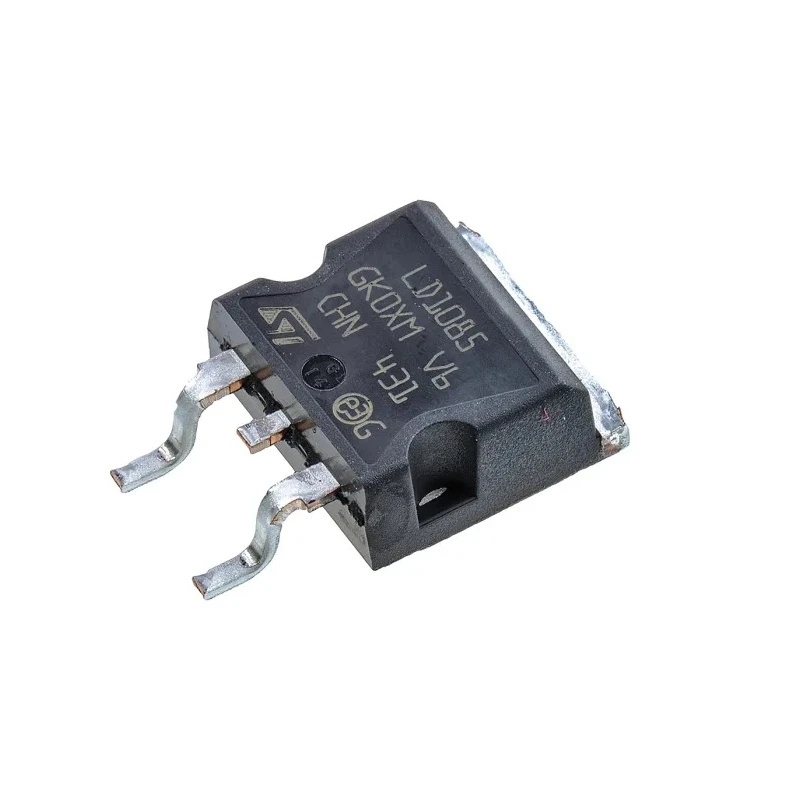

STMicroelectronics Adjustable Linear LDO Voltage Regulator 30V 3-Pin Surface Mount LD1085D2T-R
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators STMicroelectronics LD1085D2T-R, Voltage Regulator 30V 3-Pin RS Stock |
| Brand | STMicroelectronics |
| Height | 4.6mm |
| Length | 10.4mm |
| Model | LD1085D2T-R |
| Width | 9.35mm |
| Mount Type | Surface |
| Series | LD1085 |
| Maximum Operating Temperature | 125°C |
| Polarity | Positive |
| Maximum Input Voltage | 30V |
| Quiescent Current | 5mA |
| Pin Count | 3 |
Key Features
- This adjustable linear low dropout regulator provides efficient voltage regulation with low noise and high power supply rejection ratio.
- The regulator features a quiescent current of 5mA, enabling low power consumption in electronic circuits.
- Compact dimensions of 10.4mm length, 9.35mm width, and 4.6mm height facilitate space-saving PCB design.
- Designed to operate reliably up to 125°C maximum operating temperature for industrial and commercial applications.
- The device requires a minimum 10µF capacitor for stable operation to ensure consistent voltage output.
- Its surface mount package type enhances automated assembly and manufacturing efficiency.
- Ideal for use in power management circuits, electronic components, and semiconductor systems requiring positive voltage regulation.
Product Description
STMicroelectronics LD1085D2T-R is a high-performance adjustable linear low dropout (LDO) voltage regulator designed for electronic and power management applications. Featuring a compact 3-pin surface mount package, this device supports a maximum input voltage of 30V and positive polarity operation, making it suitable for a wide range of electronic circuits requiring stable voltage regulation.
This LDO regulator delivers low quiescent current of 5mA, which reduces power consumption and heat generation in systems, while providing fast transient response and low noise. Its physical dimensions of 10.4mm length, 9.35mm width, and 4.6mm height enable designers to optimize PCB layouts for space efficiency.
The regulator is rated for a maximum operating temperature of 125°C, ensuring reliability and durability in demanding industrial, commercial, and consumer applications. For stable operation, a minimum 10μF capacitor is recommended, which helps maintain output voltage stability under varying load conditions.
Adjustable linear LDO voltage regulator with 30V maximum input voltage. Low quiescent current of 5mA for power-efficient operation. Compact 3-pin surface mount package supports automated assembly. Operating temperature up to 125°C for industrial-grade reliability.
Requires 10μF minimum capacitor for stable voltage output. Suitable for electronic components, power management ICs, and semiconductor applications. Positive polarity with surface mounting ensures compatibility with various designs.
This product is ideal for applications in industrial automation, consumer electronics, telecommunications, and other fields where precise voltage regulation is critical. The LD1085D2T-R integrates seamlessly into power management circuits, improving overall system efficiency and stability.
Explore more Voltage Regulators and power management solutions to meet your design requirements and enhance your product functionality with STMicroelectronics components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 30V.
It has a low quiescent current of 5mA, which helps reduce power consumption in electronic circuits.
This unit has dimensions of 10.4mm in length, 9.35mm in width, and 4.6mm in height.
It features a surface mount package type, which enhances automated assembly and manufacturing efficiency.
The maximum operating temperature is rated at 125°C, making it suitable for industrial applications.
A minimum capacitor of 10µF is required for stable operation to ensure consistent voltage output.
This model operates with positive polarity, suitable for various electronic circuits.
It is ideal for use in power management circuits, electronic components, and semiconductor systems requiring stable voltage regulation.
This voltage regulator has a 3-pin configuration.
The low dropout feature allows for efficient voltage regulation with minimal voltage loss, which is beneficial in power-sensitive applications.
It belongs to the LD1085 series of voltage regulators.
The country of origin for this product is India.
