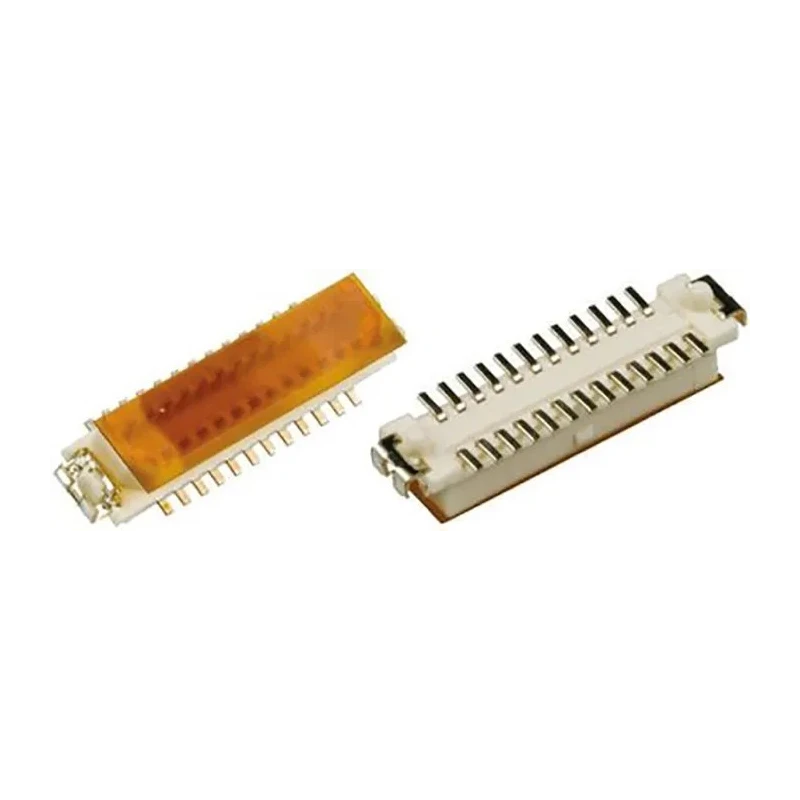

Hirose DF9 Series Straight Surface PCB Socket 41-Contact 2 Row 1 mm Pitch Solder DF9-41S-1V(32)
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 150V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 500mA |
| Model | DF9-41S-1V(32) |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Copper |
| Series | DF9 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -45°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Contact Plating | Tin |
| Number of Contacts | 41 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Designed to comply with VESA FPDI-1 standard for LCD displays.
- Trapezoidal mating interface prevents misinsertion for secure connections.
- Easy lock mechanism ensures tactile confirmation of mating.
- Constructed with polyamide housing and copper contacts plated with tin.
- Supports 150 V voltage and 500 mA current rating for low-power applications.
- Wide operating temperature range from -45°C to 125°C.
- Mount type is surface mount with straight orientation for PCB integration.
- Connector system is board-to-board suitable for compact electronics.
Product Description
Hirose DF9-41S-1V(32) is a straight surface mount PCB socket connector designed for board-to-board applications. Featuring 41 contacts arranged in 2 rows at a 1 mm pitch, this connector ensures compact and reliable electrical connections for electronic components.
The DF9 series connectors comply with the VESA FPDI-1 standard interface, making them ideal for LCD display connections. The trapezoidal mating interface acts as a misinsertion prevention mechanism, ensuring proper alignment during assembly.
The socket incorporates an easy lock mechanism providing a secure tactile click when mated, increasing assembly reliability. The connector housing is made of durable polyamide material, and the contacts are constructed from copper with tin plating to ensure excellent conductivity and corrosion resistance.
This socket supports a voltage rating of 150 V and a current rating of 500 mA, suitable for various low power electronic applications. Its wide operating temperature range from -45°C to 125°C enables use in environments with fluctuating temperatures.
The surface mount (SMT) design with straight orientation allows easy integration onto PCB boards while mounting bosses help maintain the connector position during soldering or manual placement. Metal fittings on the SMT version reinforce PCB attachment and prevent solder joint peeling due to mechanical stress, enhancing durability under mechanical loads.
Designed for LCD displays and portable electronics requiring reliable board-to-board connections. Compliant with industry standards for flat panel display interfaces. Robust mechanical design and easy locking for secure mating.
Materials selected for electrical performance and mechanical strength. Suitable for applications in industrial, electronic manufacturing, and consumer electronic devices. This product is categorized under PCB Sockets and is part of Hirose's DF9 series connectors, trusted in electronic component assembly.
Explore more PCB Sockets and connectors in the Electronics & Electricals section of EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a voltage rating of 150 V and a current rating of 500 mA, making it suitable for low-power applications.
The DF9-41S-1V(32) features a 1 mm pitch and has 41 contacts arranged in 2 rows.
The housing is made of polyamide, while the contacts are constructed from copper and plated with tin for conductivity and corrosion resistance.
It operates within a wide temperature range from -45°C to 125°C, suitable for various environmental conditions.
This socket uses a surface mount design with straight orientation, allowing for easy integration onto PCB boards.
Yes, it complies with the VESA FPDI-1 standard, making it ideal for LCD display connections.
The DF9-41S-1V(32) uses solder termination for secure connections on the PCB.
It is designed as a board-to-board connector, suitable for compact electronics applications.
The trapezoidal mating interface acts as a misinsertion prevention mechanism, ensuring proper alignment during assembly.
The contact gender of this model is female, designed for secure mating with male connectors.
It includes an easy lock mechanism that provides tactile confirmation of mating, increasing assembly reliability.
The country of origin for this model is India.
