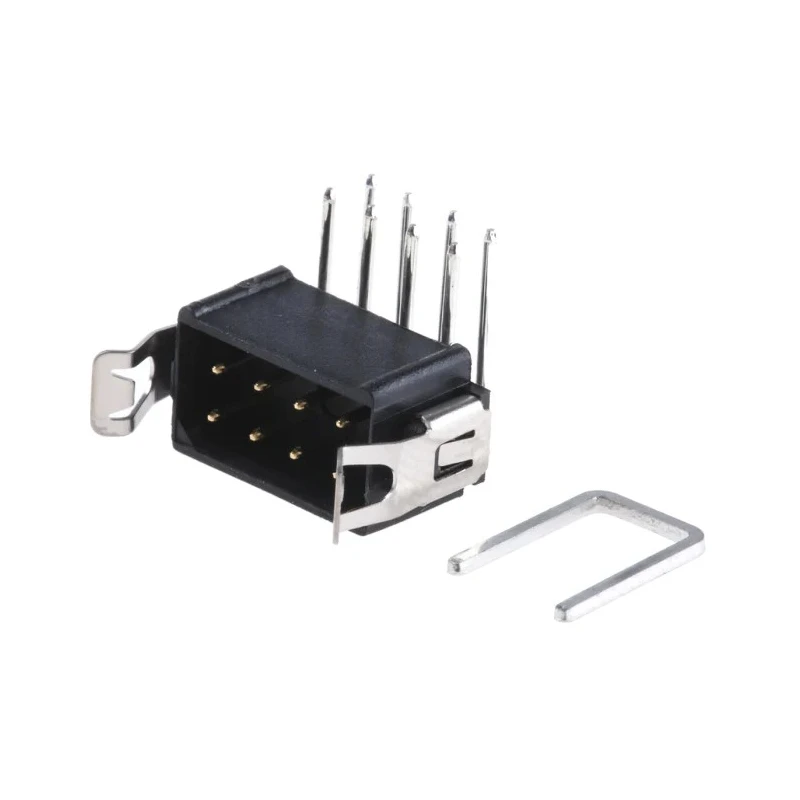

HARWIN Datamate L-Tek Series Right Angle Through Hole PCB Header, 8 Contact(s), 2 mm Pitch, 2 Row, Shrouded M80-8510842

Name: HARWIN Datamate L-Tek Series Right Angle Through Hole PCB Header, 8 Contact(s), 2 mm Pitch, 2 Row, Shrouded M80-8510842
Brand: HARWIN
SKU: 164672



Category PCB Headers Brand HARWIN Condition New

Specifications

Country of Origin	United Kingdom
Voltage	120V
Brand	HARWIN
Orientation	Right Angle
Current	3A
Model	M80-8510842
Mount Type	Through Hole
Housing Material	Polyphenylene Sulphide
Contact Material	Phosphor Bronze
Series	Datamate L-Tek
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold
Number of Contacts	8
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	3mm

Key Features

Features a shrouded design for secure connections and protection.
Consists of 2 rows of male pins for board-to-board and wire-to-board systems.
Constructed with polyphenylene sulphide housing and phosphor bronze contacts plated in gold.
Supports a current rating of 3A and voltage rating of 120V.
Designed for through hole mounting with a 3 mm tail pin length for solder termination.
Operates reliably between temperatures of -55°C to 125°C.
Utilizes high reliability 4-finger beryllium copper contacts for superior mating cycles and vibration resistance.
Meets industry standards including BS9525-F0033 and MIL C 55302.

Product Description

HARWIN M80-8510842 Datamate L-Tek Series Right Angle Through Hole PCB Header features an 8 contact, 2 rows configuration with a 2 mm pitch. This shrouded, right angle male connector is designed for board-to-board and wire-to-board applications, providing secure connections in industrial, commercial, and electronic manufacturing environments.

The product utilizes polyphenylene sulphide housing for durability and stability under harsh conditions including vibration, shock, and acceleration. The contacts are made from phosphor bronze with gold plating, enhancing conductivity and resistance to corrosion.

Designed for through-hole mounting, it has a tail pin length of 3 mm for solder terminations, supporting current up to 3 amperes and voltage ratings to 120 volts. Its operational temperature range from -55°C to 125°C makes it suitable for demanding electronic applications in industrial automation, aerospace, and military systems.

The L-Tek series connectors incorporate a 4-finger beryllium copper contact system ensuring a highly reliable and vibration-resistant connection. These connectors comply with standards BS9525-F0033, MIL C 55302, and CEC 75101-008, making them ideal for use in COTS applications and other high-reliability scenarios.

Shrouded design for enhanced connection safety and durability. 2 row, 8 contact right angle male pin header with 2 mm pitch. Polyphenylene sulphide housing and gold-plated phosphor bronze contacts. Through hole mount type with solder termination.

Wide operating temperature range from -55°C to 125°C. High reliability four-finger beryllium copper contacts. Supports 3A current and 120V voltage applications. Manufactured in the United Kingdom. Complies with MIL, BS, and CEC standards for quality assurance.

This product is essential for electronic engineers and manufacturers seeking robust and dependable PCB headers for use in aerospace, defense, industrial control, and other electronic systems requiring durable connectors. For more options and accessories in PCB Headers, explore the extensive range available at EnvMart.
