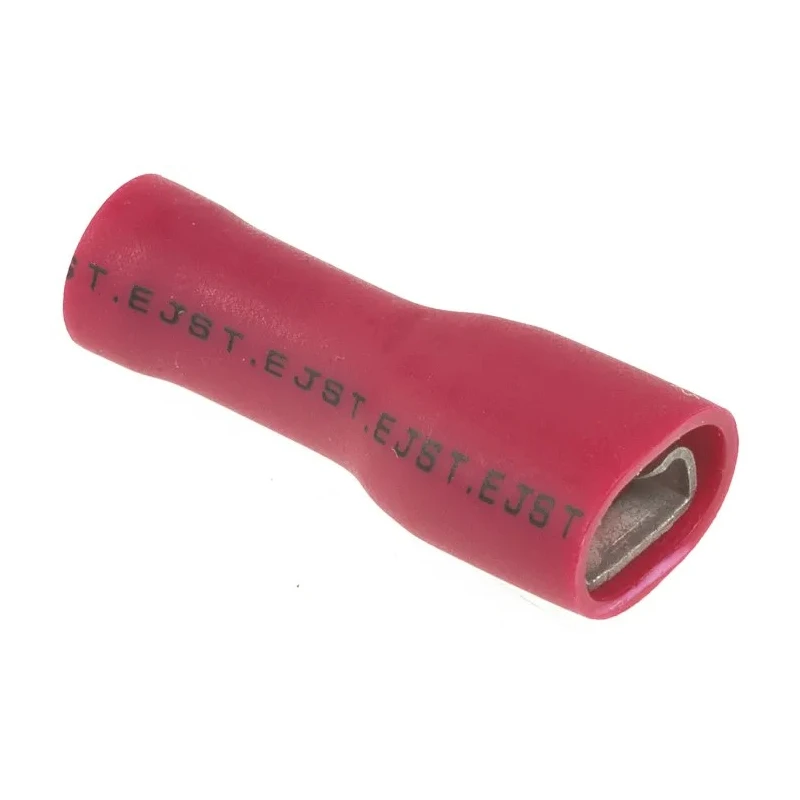

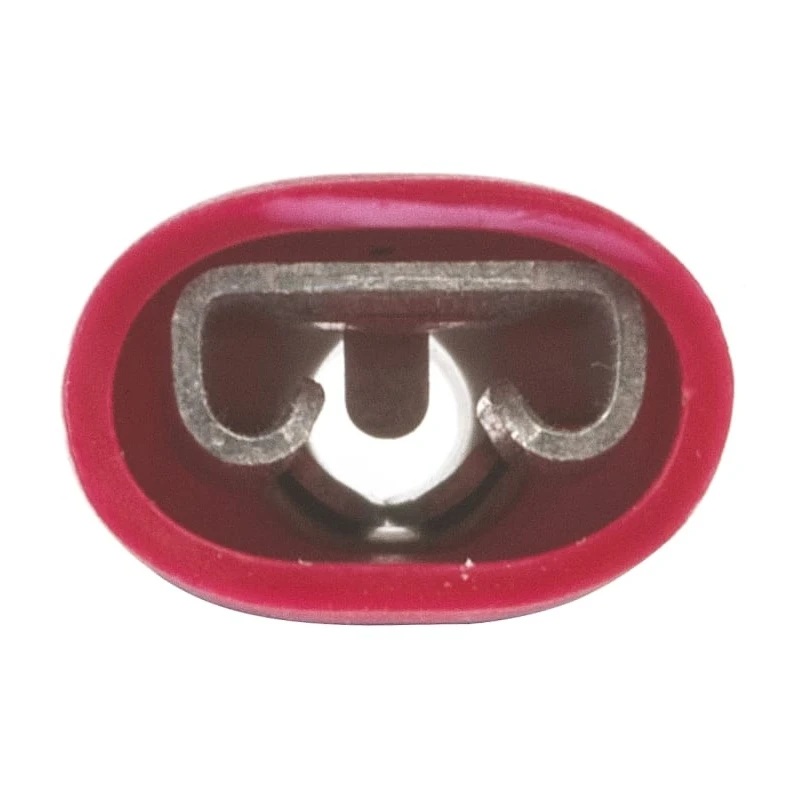

JST Red Insulated Female Spade Connector Crimp 4.75 x 0.8 mm Tab Size 22 AWG to 16 AWG FLVDDF1.25-187A-8(S)(LF)

Free Delivery in India | Lowest Global Shipping Charges

JST Red Insulated Female Spade Connector Crimp 4.75 x 0.8 mm Tab Size 22 AWG to 16 AWG FLVDDF1.25-187A-8(S)(LF)



Category Spade Connector Brand JST Condition New

Specifications

Country of Origin	India
Brand	JST
Colour	Red
Orientation	Straight
Model	FLVDDF1.25-187A-8(S)(LF)
Gender	Female
Insulation	Insulated
Overall Length	19mm
Contact Material	Copper
Series	FLVDDF
Termination Type	Crimp
Insulation Material	Vinyl
Minimum Wire Size mm²	0.25mm²
Maximum Wire Size mm²	1.65mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Tab Width	144.78mm
Tab Thickness	20.32mm
Tab Size	4.75 x 0.8 mm

Key Features

Fully insulated for enhanced electrical safety and durability.
Copper contact material ensures reliable conductivity.
Vinyl insulation material provides protection and color-coding in red.
Straight orientation optimizes connection assembly and maintenance.
Overall connector length measures 19 mm for compact installations.
Compatible with wire cross-section from 0.25 mm² (22 AWG) up to 1.65 mm² (16 AWG).
Meets JST's FLVDDF series standards for quality and performance.
Ideal for electronic components, power connectors, and wire terminal applications.

Product Description

JST FLVDDF1.25-187A-8(S)(LF) Red Insulated Female Spade Connector is a high-quality crimp terminal featuring a tab size of 4.75 x 0.8 mm suitable for wire sizes ranging from 22 AWG to 16 AWG (0.25 mm² to 1.65 mm²). This connector is fully insulated with red vinyl material, providing excellent electrical insulation and mechanical protection for reliable and safe operation in various electronic and power connector applications.

The connector incorporates copper contact material, ensuring excellent conductivity and stable performance even under demanding electrical conditions. Its straight orientation and overall length of 19 mm allow efficient space utilization and ease of connection in dense wiring assemblies.

Designed as part of the JST FLVDDF series, this female spade connector supports solderless crimp-type termination, facilitating quick, durable, and secure wire connections without the need for soldering. The flared vinyl insulation color coding improves visual identification during wiring and maintenance, enhancing safety and reducing errors.

This product is primarily used in electronic components, power connectors, wire terminals, and splicing applications across industrial, manufacturing, HVAC, and electrical assembly sectors. Its rugged construction and standard compliance make it suitable for both prototyping and production environments.

Fully insulated for enhanced electrical safety and durability. Copper contact material ensures reliable conductivity. Vinyl insulation material provides protection and color-coding in red. Straight orientation optimizes connection assembly and maintenance.

Overall connector length measures 19 mm for compact installations. Compatible with wire cross-section from 0.25 mm² (22 AWG) up to 1.65 mm² (16 AWG). Meets JST's FLVDDF series standards for quality and performance. Ideal for electronic components, power connectors, and wire terminal applications.

Crimp termination type facilitates solderless secure connections.

Set your projects up for reliable connectivity by choosing JST's FLVDDF insulated female Spade Connector. Explore more connectors and electronic components at EnvMart for comprehensive industrial-grade solutions.
