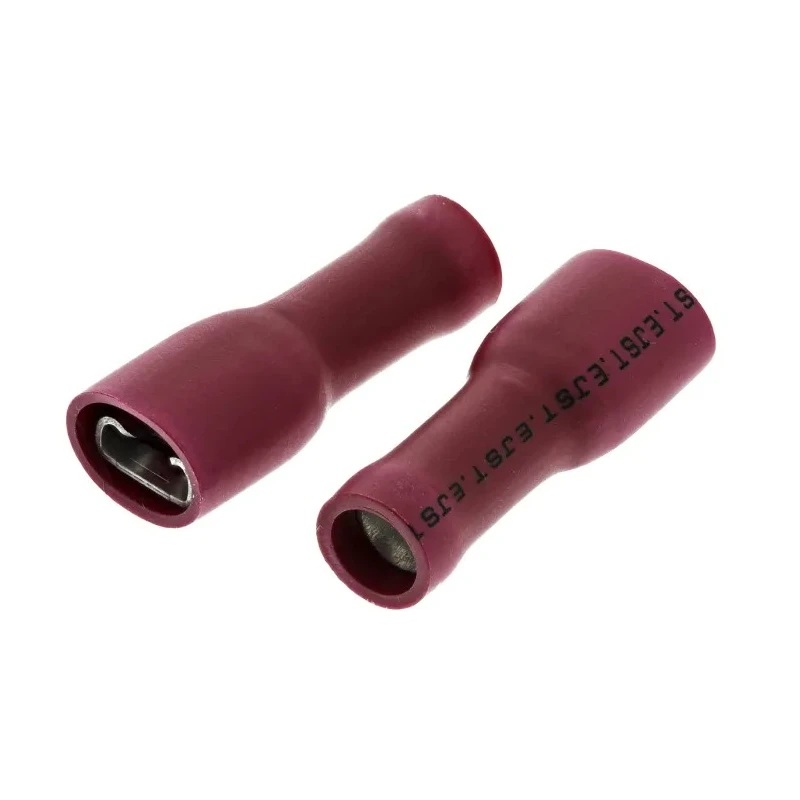

JST Red Insulated Female Spade Connector Crimp 4.75 x 0.5 mm Tab Size 22 AWG to 16 AWG FLVDDF1.25-187A-5PA S LF

Free Delivery in India | Lowest Global Shipping Charges

JST Red Insulated Female Spade Connector Crimp 4.75 x 0.5 mm Tab Size 22 AWG to 16 AWG FLVDDF1.25-187A-5PA S LF



Category Spade Connector Brand JST Condition New

Specifications

Country of Origin	India
Brand	JST
Colour	Red
Orientation	Straight
Model	FLVDDF1.25-187A-5PA S LF
Gender	Female
Insulation	Insulated
Overall Length	19mm
Contact Material	Copper
Series	FLVDDF
Termination Type	Crimp
Insulation Material	Vinyl
Minimum Wire Size mm²	0.25mm²
Maximum Wire Size mm²	1.65mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Tab Width	144.78mm
Tab Thickness	12.7mm
Tab Size	4.75 x 0.5 mm

Key Features

Fully insulated crimp receptacle terminal with vinyl insulation for safety.
Constructed with copper contact material to ensure good conductivity.
Designed with straight orientation and red colour coding.
Suitable for wire sizes ranging from 0.25 mm² (22 AWG) up to 1.65 mm² (16 AWG).
Overall connector length of 19 mm for compact applications.
Tab dimensions precisely 4.75 mm width by 0.5 mm thickness for secure fit.
Vinyl insulation material provides electrical insulation and mechanical protection.
Ideal for electrical and electronic component wiring applications requiring crimp termination.

Product Description

JST FLVDDF1.25-187A-5PA S LF is a red insulated female spade connector designed for crimp termination to wire sizes between 22 AWG and 16 AWG. This connector features vinyl insulation for electrical safety and mechanical protection. The fully insulated crimp receptacle terminal ensures reliable and solderless connection for electronic components and power wiring.

Constructed with copper contact material, it offers excellent electrical conductivity and durability in various industrial and electronic applications. The connector orientation is straight, and it is colour-coded red for easy identification and matching with corresponding terminals. Its tab size of 4.75 x 0.5 mm fits standard male tabs securely.

This Spade Connector has an overall length of 19 mm, making it compact and suitable for use in tight spaces. The insulation thickness and vinyl material provide additional safety against electrical shorts and environmental factors. It is a part of the FLVDDF series by JST, known for high quality and reliable wire terminal solutions.

Typical use cases include electrical wiring harnesses, electronic device assembly, automotive wiring, telecommunications equipment, and other power and signal applications in both industrial and laboratory environments. The crimp termination eliminates the need for soldering, enabling efficient and secure connections.

Fully insulated crimp receptacle terminal with vinyl insulation for safety. Constructed with copper contact material to ensure good conductivity. Designed with straight orientation and red colour coding. Suitable for wire sizes ranging from 0.25 mm² (22 AWG) to 1.65 mm² (16 AWG).

Overall connector length of 19 mm for compact applications. Precise tab dimensions of 4.75 mm width by 0.5 mm thickness. Provides reliable and solderless crimp termination. Ideal for industrial, laboratory, automotive, and electronic wiring.
