JST Red Insulated Female Spade Connector Crimp 4.75 x 0.8 mm Tab Size 22 AWG to 16 AWG FVDDF1.25-187A-8(S)(LF)

Free Delivery in India | Lowest Global Shipping Charges

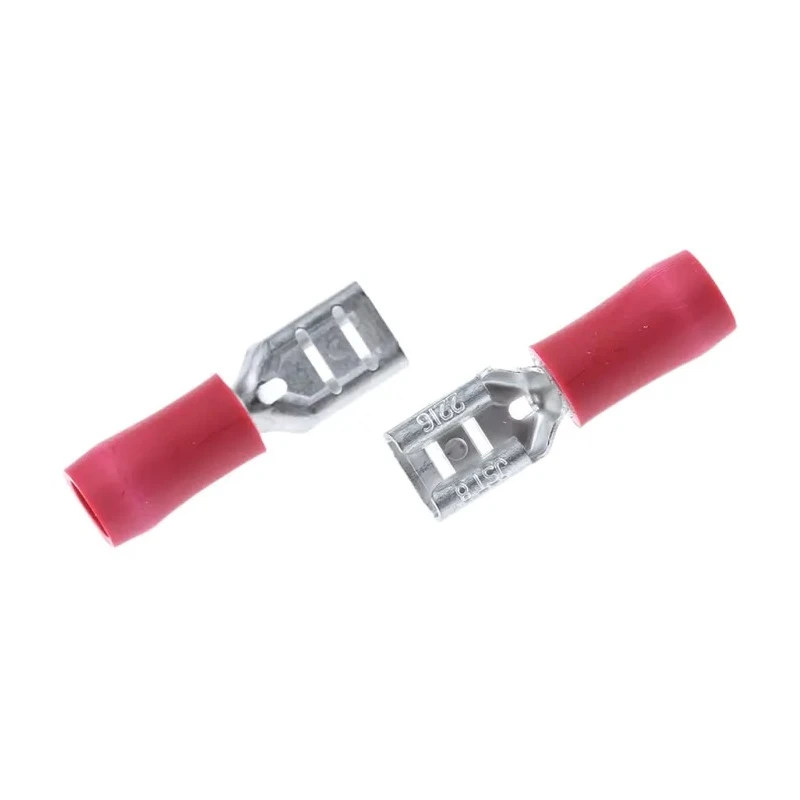

JST Red Insulated Female Spade Connector Crimp 4.75 x 0.8 mm Tab Size 22 AWG to 16 AWG FVDDF1.25-187A-8(S)(LF)



Category Spade Connector Brand JST Condition New

Specifications

Country of Origin	India
Brand	JST
Colour	Red
Orientation	Straight
Model	FVDDF1.25-187A-8(S)(LF)
Gender	Female
Insulation	Insulated
Overall Length	18.7mm
Contact Material	Copper
Series	FVDDF
Termination Type	Crimp
Insulation Material	Vinyl
Minimum Wire Size mm²	0.25mm²
Maximum Wire Size mm²	1.65mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Tab Width	5.7mm
Tab Thickness	0.8mm
Tab Size	4.75 x 0.8 mm

Key Features

Features a straight orientation with red vinyl insulation for electrical safety.
Designed with a copper contact material for reliable conductivity.
Tab size measures 4.75 x 0.8 mm with an overall length of 18.7 mm.
Suitable for wire sizes from 0.25 mm² to 1.65 mm².
Crimp termination ensures secure mechanical and electrical connection.
Insulation made of vinyl for durability and protection against short circuits.
Compatible with 22 AWG to 16 AWG wires commonly used in electronics and electrical applications.
Compact design allows easy integration in tight spaces.

Product Description

JST FVDDF1.25-187A-8(S)(LF) Red Insulated Female Spade Connector is a high-quality crimp termination component designed for secure electrical connections in electronic and electrical systems. Featuring a straight orientation and red vinyl insulation, this spade connector provides reliable contact and insulation, suitable for wires sized between 22 AWG (0.25 mm²) and 16 AWG (1.65 mm²).

The connector tab measures 4.75 x 0.8 mm with a tab width of 5.7 mm and an overall length of 18.7 mm, ensuring compatibility with standard male spade terminals. The copper contact material ensures excellent electrical conductivity, while the vinyl insulation provides robust protection against shorts and environmental factors.

This JST FVDDF series connector is engineered for industrial and commercial applications including electronic component manufacturing, appliance repair, automotive electrical systems, and other low to medium power electrical wiring tasks. Its compact size allows efficient use in confined spaces where reliable wire-to-wire or wire-to-terminal connections are required.

Features a straight, red insulated design for safety and ease of use. Constructed with copper contacts for high conductivity and durability. Suitable for wire gauge range from 22 AWG to 16 AWG (0.25 mm² to 1.65 mm²). Dimensions ensure compatibility with 4.75 x 0.8 mm tab sizes and 5.7 mm tab width.

Vinyl insulation provides electrical isolation and mechanical protection. Ideal for use across industrial, laboratory, HVAC, and manufacturing sectors for wiring and electrical junctions. Compact overall design length of 18.7 mm enables use in tight installations.

This product is new and made in India. It supports applications requiring reliable crimp female Spade Connectors that meet standard electrical wiring practices. Browse EnvMart's collection of JST connectors for more wire terminal solutions.
