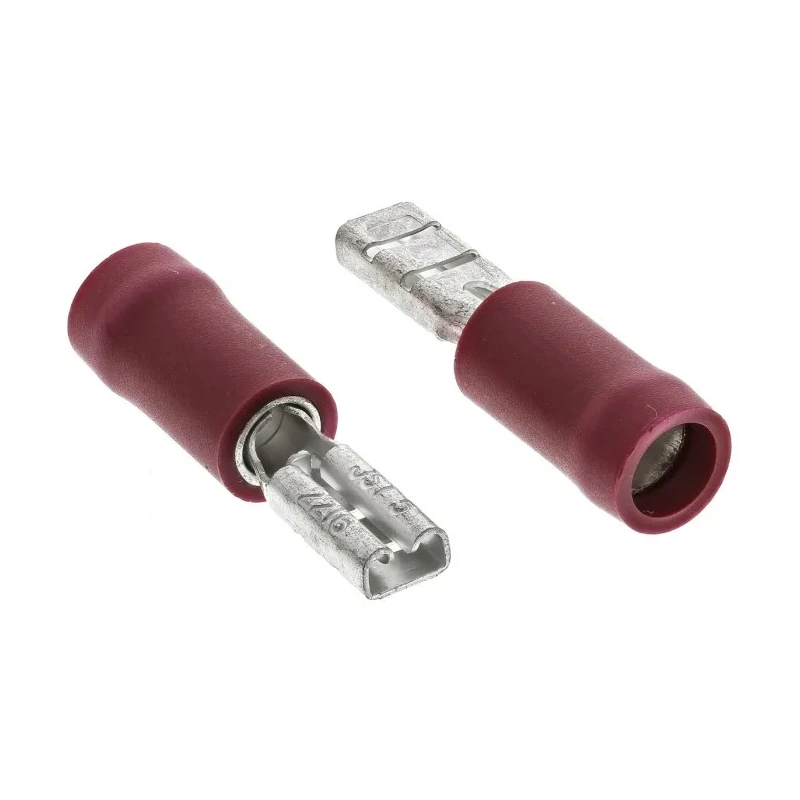

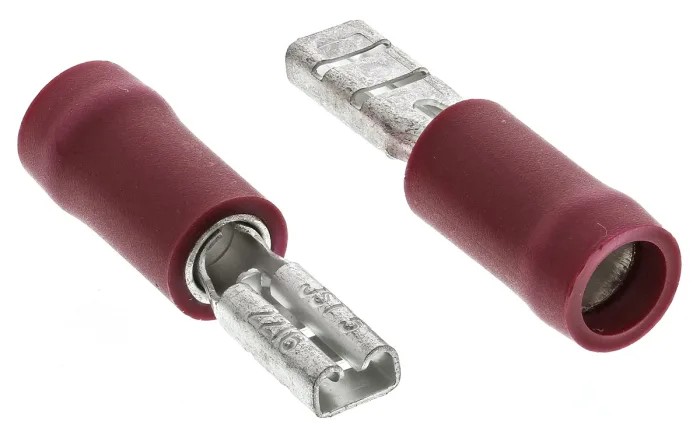

JST Red Insulated Female Spade Connector Crimp 2.79 x 0.5 mm Tab Size 22 AWG to 16 AWG FVDDF1.25-110A-5(S)(LF)

Free Delivery in India | Lowest Global Shipping Charges

JST Red Insulated Female Spade Connector Crimp 2.79 x 0.5 mm Tab Size 22 AWG to 16 AWG FVDDF1.25-110A-5(S)(LF)



Category Spade Connector Brand JST Condition New

Specifications

Country of Origin	India
Brand	JST
Colour	Red
Orientation	Straight
Model	FVDDF1.25-110A-5(S)(LF)
Gender	Female
Insulation	Insulated
Overall Length	17.9mm
Contact Material	Copper
Series	FVDDF
Termination Type	Crimp
Insulation Material	Vinyl
Minimum Wire Size mm²	0.25mm²
Maximum Wire Size mm²	1.65mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Tab Width	93.98mm
Tab Thickness	12.7mm
Tab Size	2.79 x 0.5 mm

Key Features

Constructed with copper contact material for excellent conductivity.
Features vinyl insulation ensuring electrical safety and durability.
Designed with a straight orientation and overall length of 17.9 mm.
Tab size measures 2.79 x 0.5 mm compatible with standard male tabs.
Accommodates minimum wire size of 0.25 mm² and maximum of 1.65 mm².
Suitable for insulated wire termination applications in electronics and electrical systems.
Red color coding aids easy identification in wiring schemes.
Part of the FVDDF series of insulated crimp receptacle terminals.

Product Description

The JST FVDDF1.25-110A-5(S)(LF) is a red insulated female spade connector designed for secure crimp termination of electrical wires. Featuring a copper contact material and vinyl insulation, this connector ensures excellent electrical conductivity combined with durable insulation protection. The connector offers a tab size of 2.79 x 0.5 mm suitable for mating with compatible male spade terminals. It supports wire sizes ranging between 22 AWG (0.25 mm²) and 16 AWG (1.65 mm²), making it versatile for various wiring tasks.

With a straight orientation and an overall length of 17.9 mm, it is easy to install in constrained installations while maintaining a reliable electrical connection. The red insulation color facilitates color-coding in wiring harnesses and electrical panels for easy identification. This product is part of the JST FVDDF series of insulated crimp receptacle terminals, known for quality and electrical performance.

Ideal for use in industrial, automotive, HVAC, manufacturing, and electronics assembly environments, this female Spade Connector suits applications requiring durable, insulated crimp connections. The vinyl insulation enhances resistance to environmental factors, adding longevity to the wire terminations.

Constructed with copper contact material for excellent conductivity. Features vinyl insulation ensuring electrical safety and durability. Designed with a straight orientation and overall length of 17.9 mm. Tab size measures 2.79 x 0.5 mm compatible with standard male tabs.

Accommodates minimum wire size of 0.25 mm² and maximum of 1.65 mm². Suitable for insulated wire termination applications in electronics and electrical systems. Red color coding aids easy identification in wiring schemes.

Part of the FVDDF series of insulated crimp receptacle terminals. Provides secure, reliable connection for automotive, HVAC, industrial, and electronic uses. For more quality connectors and electronic components, browse the Electronics & Electricals category at EnvMart.
