JST Red Insulated Female Spade Connector Crimp 4.75 x 1 mm Tab Size 22 AWG to 16 AWG FVDDF1.25-187A-10(LF)

Free Delivery in India | Lowest Global Shipping Charges

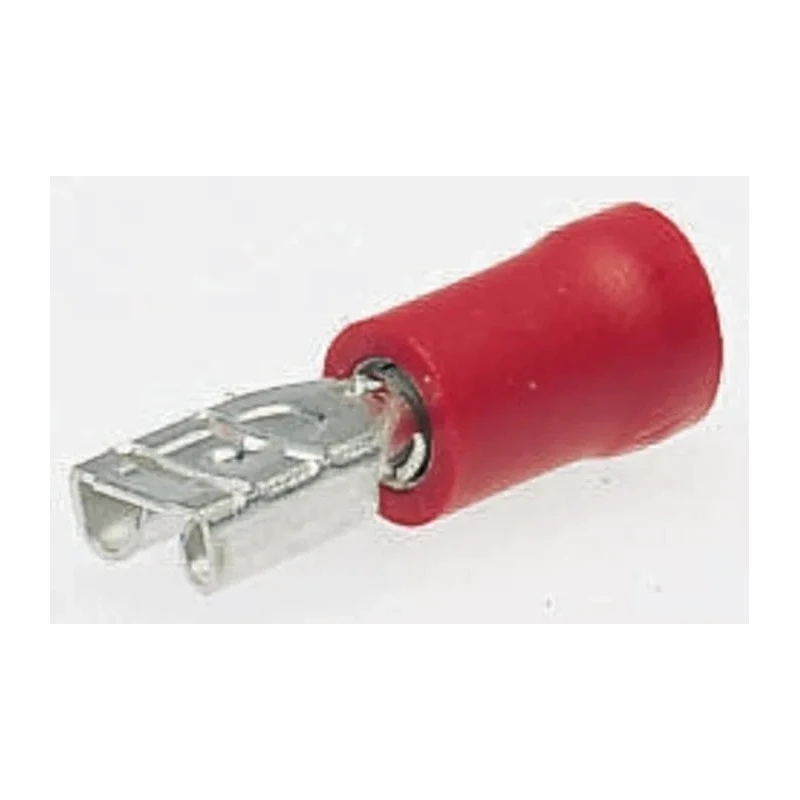

JST Red Insulated Female Spade Connector Crimp 4.75 x 1 mm Tab Size 22 AWG to 16 AWG FVDDF1.25-187A-10(LF)



Category Spade Connector Brand JST Condition New

Specifications

Country of Origin	India
Brand	JST
Colour	Red
Model	FVDDF1.25-187A-10(LF)
Gender	Female
Insulation	Insulated
Overall Length	18.7mm
Contact Material	Copper
Series	FVDDF
Termination Type	Crimp
Insulation Material	Vinyl
Standards/Approvals	CSA, UL
Minimum Wire Size mm²	0.25mm²
Maximum Wire Size mm²	1.65mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Tab Width	4.75mm
Tab Thickness	1mm
Tab Size	4.75 x 1 mm

Key Features

Constructed with high-quality copper contact material for excellent electrical conductivity.
Red vinyl insulation to ensure safe and reliable electrical insulation.
Designed for crimp termination ensuring secure and stable wire connections.
Compatible with wire size range from 0.25 mm² (22 AWG) to 1.65 mm² (16 AWG).
Complies with CSA and UL standards, ensuring industry reliability and safety.
Overall length of 18.7 mm providing easy fit in electrical assemblies.
Suitable for power connectors, electrical wiring, and electronics assembly applications.

Product Description

JST FVDDF1.25-187A-10(LF) red insulated female spade connector is an efficient and reliable wire terminal designed for crimp termination applications. It features a copper contact material encased in durable vinyl insulation, providing excellent electrical conductivity and insulation protection. The connector is compatible with wire sizes ranging from 22 AWG to 16 AWG and has a tab size of 4.75 x 1 mm, making it suitable for various electronics and electrical wiring applications.

This spade connector conforms to CSA and UL safety standards, ensuring its suitability for use in commercial and industrial electrical systems. Its red insulation color aids in easy identification and wiring management during installation and maintenance.

The compact design with an overall length of 18.7 mm allows integration into tight spaces, while the crimp termination ensures a secure mechanical and electrical connection. Such connectors are widely utilized in electronic components, power distribution systems, and electrical assemblies.

High-quality copper contact ensures excellent electrical performance. Vinyl insulation provides safety and durability in electrical systems. Tab size and wire gauge compatibility cover common wiring needs. CSA and UL approvals attest to its safety and reliability standards.

Crimp termination provides robust and lasting wire connections. Ideal for use in electronics manufacturing, power connectors, and wire terminal applications.

This JST Spade Connector belongs to the FVDDF series known for high performance and long-term reliability in crimp receptacle terminals. Its design and materials make it an excellent choice for professional electrical installations and maintenance tasks.

Explore more connectors and wire terminals in the Electronics & Electricals category to find compatible products and accessories tailored to your industrial and commercial needs.
