| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.01mm |
| Length | 3.04mm |
| Model | MMBZ15VALT1G |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | MMBZ A |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Number of Elements per Chip | 2 |
| Clamping Voltage VC | 21V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Common Anode |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 14.25V |
| Maximum Reverse Stand-off Voltage Vwm | 12V |
| Peak Pulse Power Dissipation Pppm | 24W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 1.9A |
| Maximum Reverse Leakage Current | 50nA |

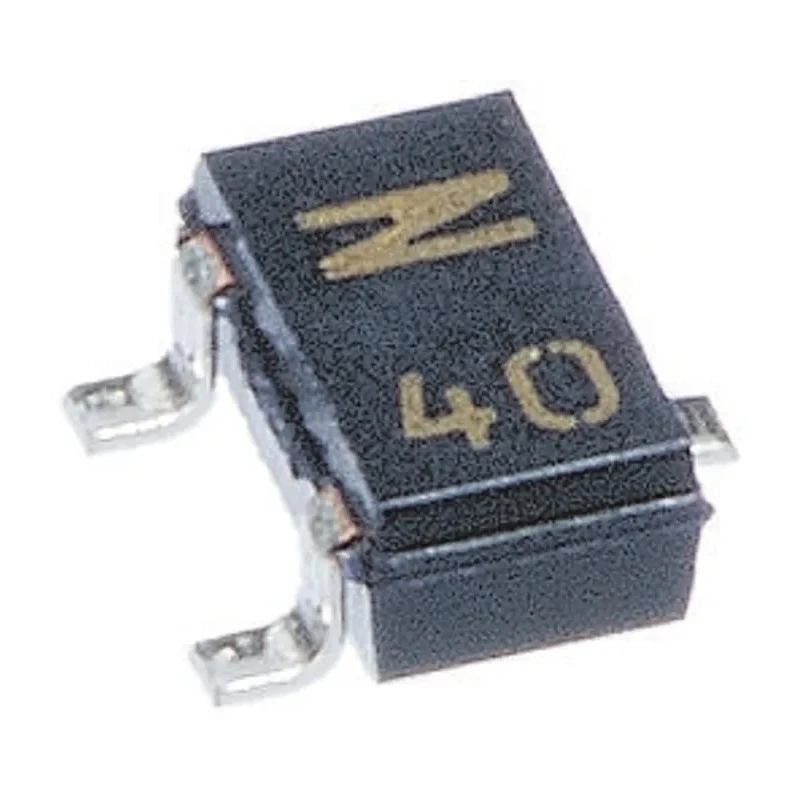

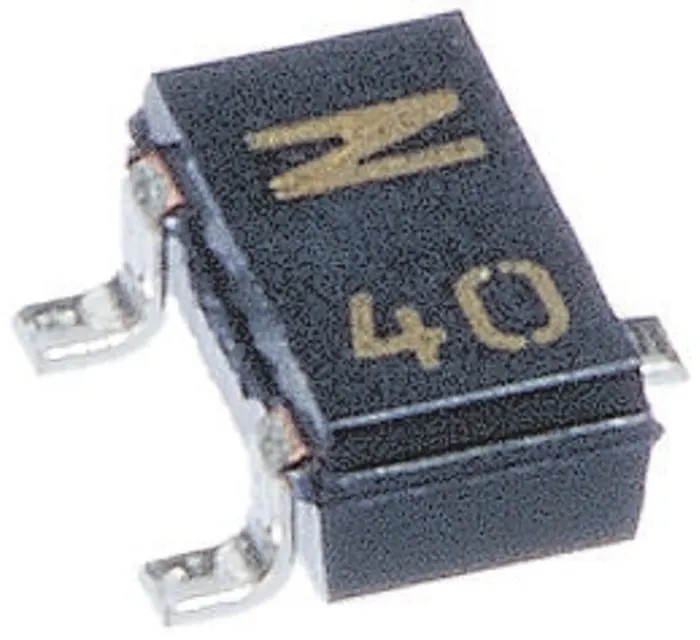

onsemi MMBZ15VALT1G 2-Element Uni-Directional TVS Diode provides a robust 24W peak pulse power dissipation capability in a compact 3-pin SOT-23 surface mount package.
This TVS diode is designed with a Common Anode diode configuration, offering uni-directional transient voltage suppression ideal for safeguarding sensitive semiconductor devices against voltage spikes and surges.
The device operates effectively over a wide temperature range from -55°C to 150°C, making it suitable for industrial, automotive, and commercial electronic applications.
The low leakage current of 50nA reduces power consumption while the dual elements per chip enhance the surge protection performance. It supports a maximum peak pulse current of 1.9A and a clamping voltage of 21V, ensuring circuit integrity under transient stress.
The MMBZ15VALT1G is AEC-Q101 qualified, assuring compliance with stringent automotive quality standards, which expands its applicability in automotive electronics and other high-reliability sectors.
Common Anode diode configuration provides reliable surge protection. Uni-directional operation for effective transient voltage suppression. Compact SOT-23 package enables easy surface mounting and space-saving design. Wide operating temperature range from -55°C to 150°C.
Low reverse leakage current minimizes power loss. Dual-element chip design enhances transient handling capabilities. AEC-Q101 automotive standard qualification guarantees durability and performance. Suitable for industrial, automotive, and commercial electronic applications.
Improves circuit longevity by protecting against voltage spikes and ESD events.
This onsemi TVS diode is an essential component for engineers requiring high-performance transient voltage suppression with compact form factor and automotive-grade reliability. Explore more products in the TVS Diode category on EnvMart for expanded options.
