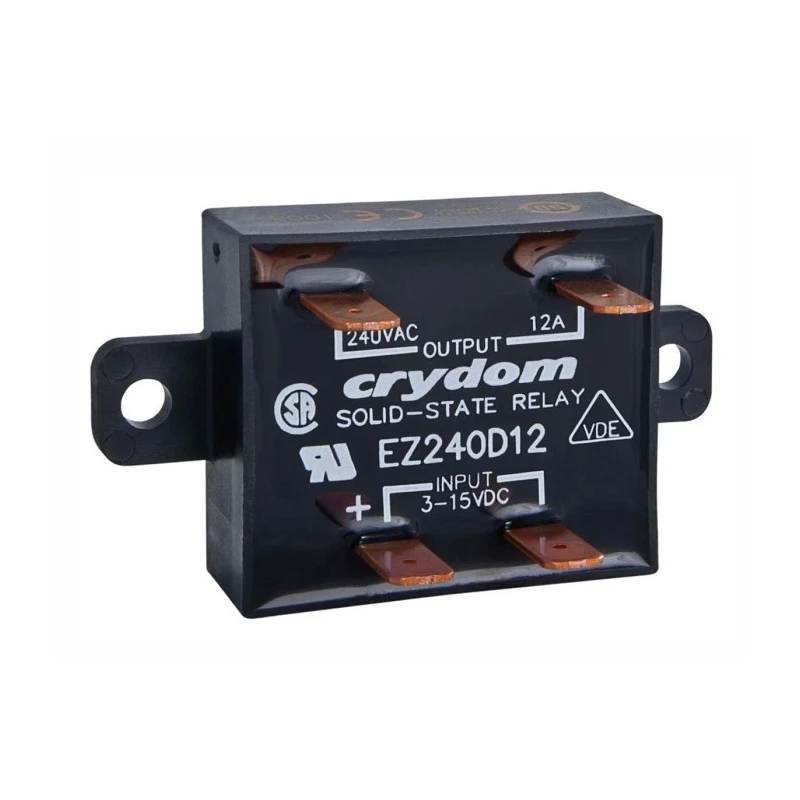

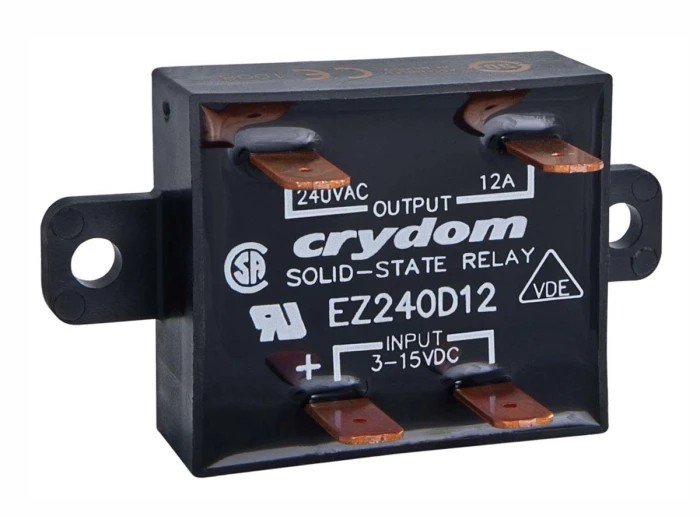

Crydom EZ Series Solid State Relay Panel Mount 12 Arms Load 280 Vrms Load 15V DC Control EZ240D12

Crydom EZ240D12 Solid State Relay is engineered specifically for industrial and commercial panel mount applications where reliable, high-current AC load switching is required. This relay supports a maximum load current of 12 Arms and a maximum load voltage of 280 Vrms, making it apt for controlling heavy industrial loads safely and efficiently.

It incorporates a zero cross switching function, which reduces electrical noise and extends load and relay life, ideal for inductive or resistive AC loads. The relay accepts DC control voltage ranging from 3V to 15V, with screw terminal connections facilitating straightforward and secure installation onto control panels.

Operating temperature range from -40°C to 80°C supports usage in varied industrial environments without performance degradation. Designed with compact dimensions of 13.9mm height and 43.9mm length, this relay fits well in restricted panel spaces while maintaining durability.

The SCR output type provides a dependable switching mechanism suited to various automation, industrial control, HVAC, and manufacturing applications. Compliance with international standards such as CE, CSA, EN 60950-1, EN 62314:2006, IEC, TUV, and UL demonstrates adherence to safety and quality benchmarks.

The low off-state leakage current of 0.1mArms and a capacitance of 8pF contribute to improved energy efficiency and signal quality in sensitive control circuits. Supports a maximum load current of 12 Arms for heavy industrial loads.

Features panel mount type with screw terminal connections. Operates with minimum control voltage of 3V DC and maximum control voltage of 15V DC. Built-in zero cross switching function enhances switching performance. Rated to function within operating temperatures from -40°C to 80°C.

Compact size with 13.9mm height and 43.9mm length for low-profile installations. Utilizes SCR output type to handle inductive and resistive loads effectively. Complies with CE, CSA, EN 60950-1, EN 62314:2006, IEC standards among others.

Very low off-state leakage current of 0.1mArms ensures energy efficiency. Capacitance value of 8pF supports signal integrity during operation.

This Crydom EZ Series relay is suitable for industrial automation, manufacturing line controls, HVAC systems, and other commercial electrical installations requiring robust and reliable relay switching.
