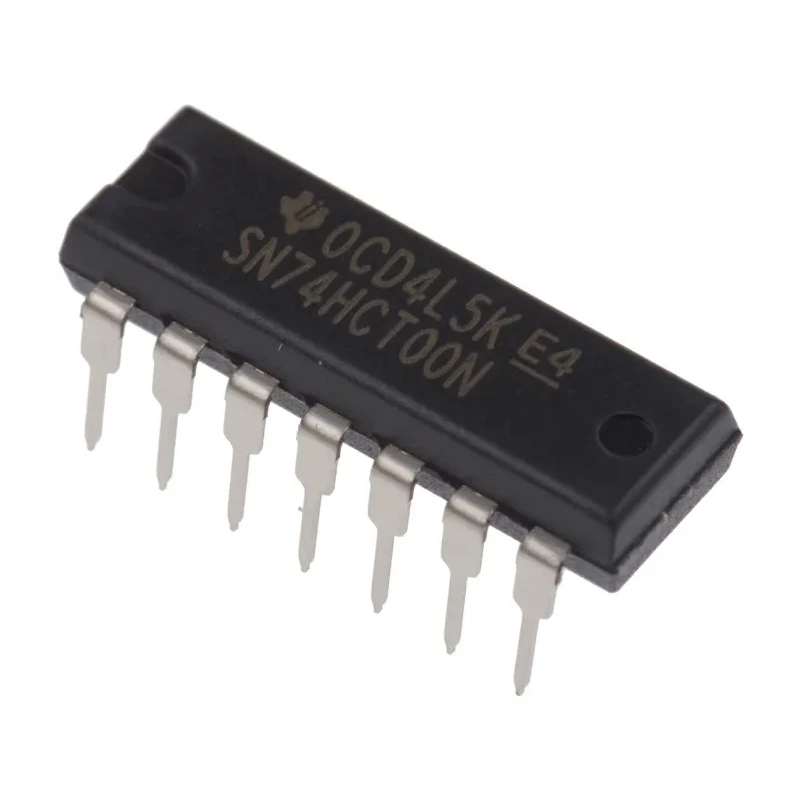

Texas Instruments 4 2-Input NAND Logic Gate 14-Pin PDIP SN74HCT00N

Texas Instruments SN74HCT00N is a 4 2-Input NAND Logic Gate IC housed in a 14-pin PDIP package. It is part of the SN74HCT00 series designed using high-speed silicon gate CMOS technology with TTL-compatible inputs, enabling efficient and reliable digital logic performance.

The IC integrates four independent NAND gates, each with two inputs, facilitating diverse logic circuit designs in industrial, electronic component manufacturing, and embedded systems applications.

The operating voltage range of 4.5 V to 5.5 V coupled with a maximum propagation delay of 22ns supports high-speed switching in complex logic circuits. The device's operating temperature range from -40°C to 85°C provides robustness for use in harsh or variable environments.

Featuring a standard 14-pin through-hole PDIP package, the SN74HCT00N ensures easy integration into legacy and modern PCB layouts. The product is suitable for industrial automation, electronic control systems, and digital circuit design.

It employs push-pull outputs for direct TTL and CMOS logic compatibility. The logic family HCT technology combines low power consumption with high-speed operation. Designed for through-hole mount technology enhancing durability in rugged industrial PCB assemblies.

Ideal for use in semiconductor applications requiring NAND logic functions. Explore other Logic Gate options and digital ICs at EnvMart to complement your electronic projects and industrial systems.
