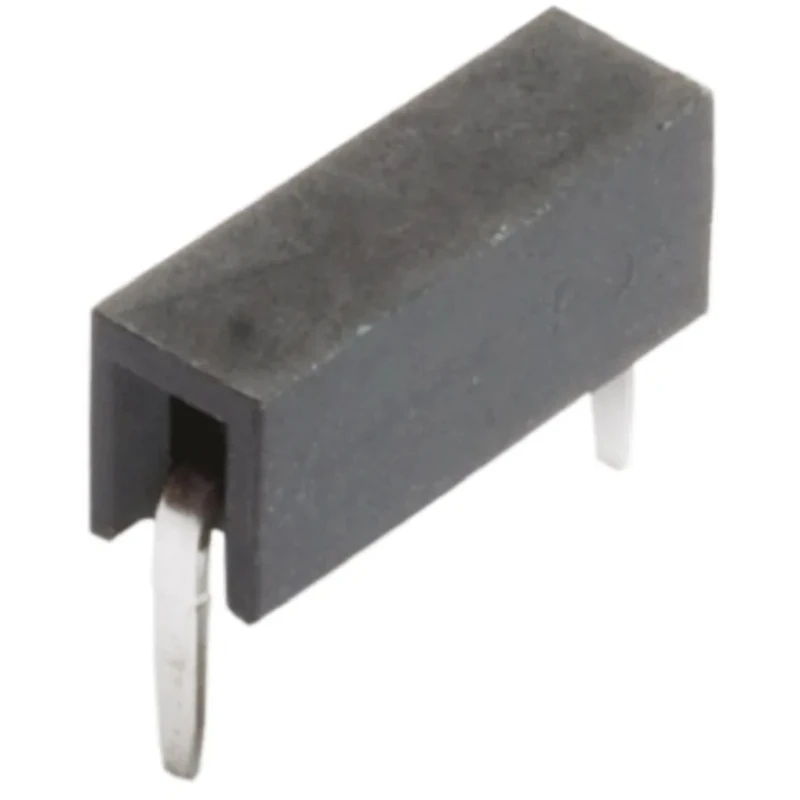

HARWIN Right Angle Through Hole PCB Socket 2-Contact 1 Row 2.54 mm Pitch Nylon Housing 12A M20-7890246
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | HARWIN |
| Orientation | Right Angle |
| Current | 12A |
| Model | M20-7890246 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Bronze |
| Series | M20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- The connector features a compact design suited for high density PCBs.
- Constructed with high temperature nylon housing rated UL94V-0 for durability.
- Supports a current rating of up to 12A per contact with bronze contacts plated with tin over nickel.
- Suitable for through-hole mounting and right angle orientation.
- Meets RoHS standards for environmental compliance.
- Designed for up to 300 mating cycles ensuring lasting reliability.
- Operating temperature range from -40°C to 105°C for versatile applications.
- Widely used in embedded PCs, motherboards, industrial monitoring, communication devices, and personal computing.
Product Description
HARWIN M20-7890246 is a right angle through hole PCB socket featuring 2 contacts in a single row with a 2.54 mm pitch. This connector is part of the M20 series renowned for its compact size and suitability in board-to-board interconnections.
The connectors utilize a high-quality nylon housing with UL94V-0 rating, engineered to endure high temperatures and reflow soldering processes. The bronze contacts plated with tin over nickel ensure excellent conductivity and corrosion resistance.
With a current rating of 12A per contact and an operational temperature range from -40°C up to 105°C, the socket is highly reliable for demanding electronic applications. The right angle orientation and through-hole mount type provide mechanical stability and design flexibility in PCB layouts.
This M20 series connector supports up to 300 mating cycles, offering long-term durability in industrial, laboratory, HVAC, and commercial electronics systems. It is widely adopted in embedded PCBs, motherboards, communication devices, drive controls, and monitoring systems.
The connector features a compact design suited for high density PCBs. Constructed with high temperature nylon housing rated UL94V-0 for durability. Supports a current rating of up to 12A per contact with bronze contacts plated with tin over nickel.
Suitable for through-hole mounting and right angle orientation. Meets RoHS standards for environmental compliance. Designed for up to 300 mating cycles ensuring lasting reliability. Operating temperature range from -40°C to 105°C for versatile applications.
Widely used in embedded PCs, motherboards, industrial monitoring, communication devices, and personal computing.
This product is manufactured in Taiwan, Province Of China, adhering to strict quality control standards. It is ideal for electronic component manufacturing, automation, and maintenance operations requiring reliable PCB connectivity.
Explore more HARWIN PCB Sockets and connectors at EnvMart to find reliable solutions that fit your electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HARWIN M20-7890246 PCB socket supports a current rating of up to 12A per contact.
This model features a pitch size of 2.54 mm.
The maximum operating temperature for this socket is 105°C.
The housing of this connector is constructed from nylon, rated UL94V-0 for high temperature applications.
The HARWIN M20-7890246 has 2 contacts in a single row.
This connector is suitable for through-hole mounting.
The orientation of this PCB socket is right angle.
The operating temperature range for this model is from -40°C to 105°C.
This connector is designed for up to 300 mating cycles, ensuring lasting reliability.
The contacts of this socket are made of bronze and are plated with tin over nickel for enhanced conductivity.
Yes, this connector meets RoHS standards for environmental compliance.
This product is manufactured in Taiwan, Province Of China.
