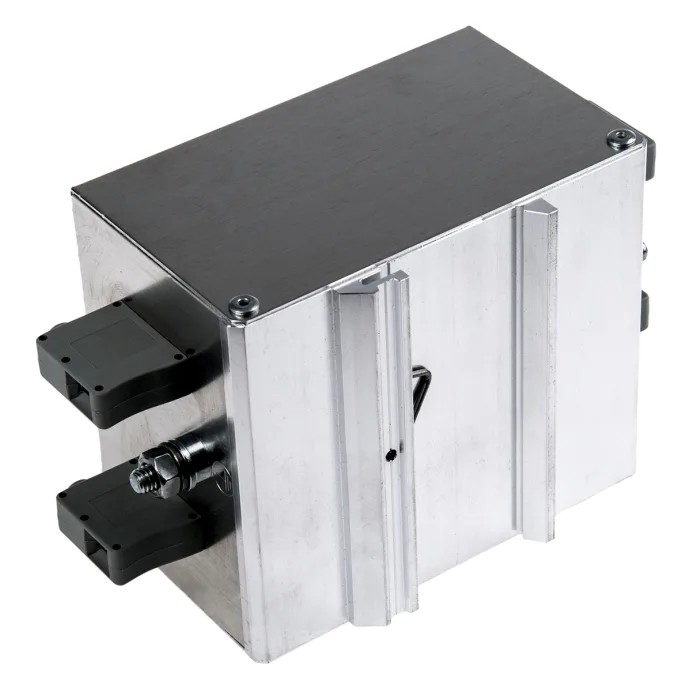

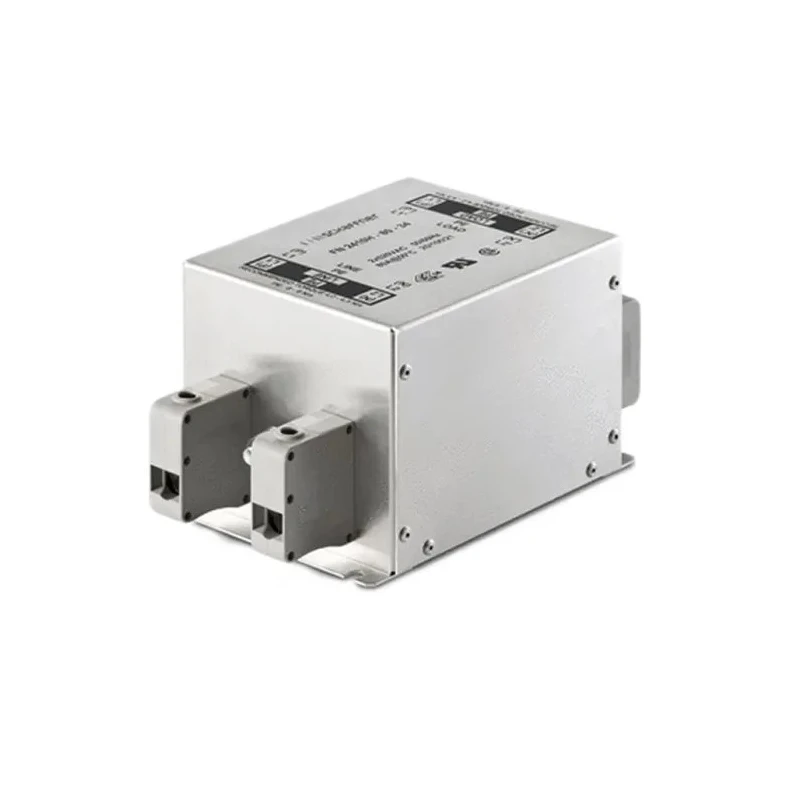

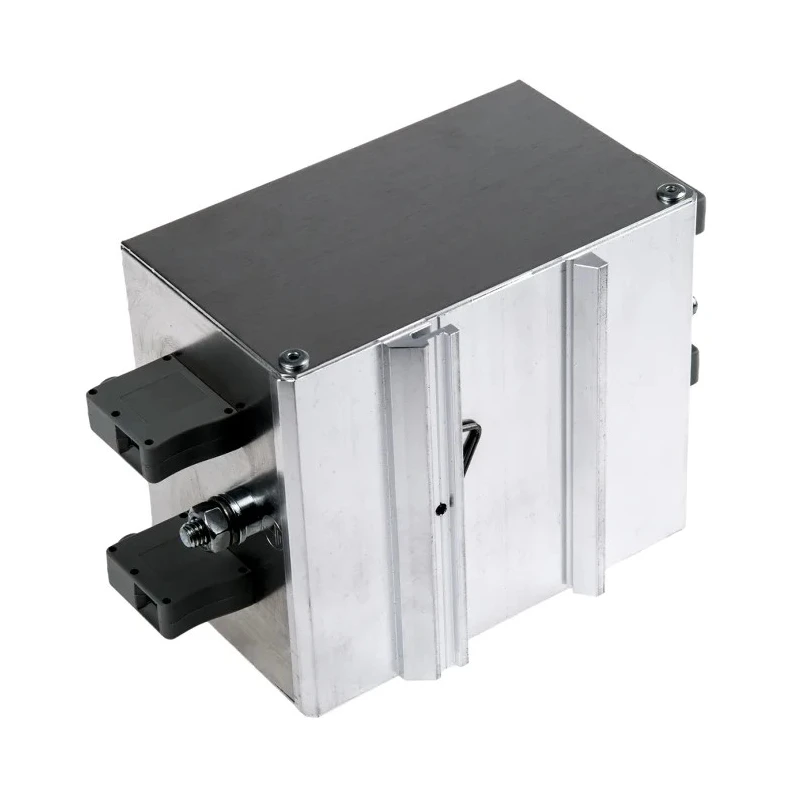

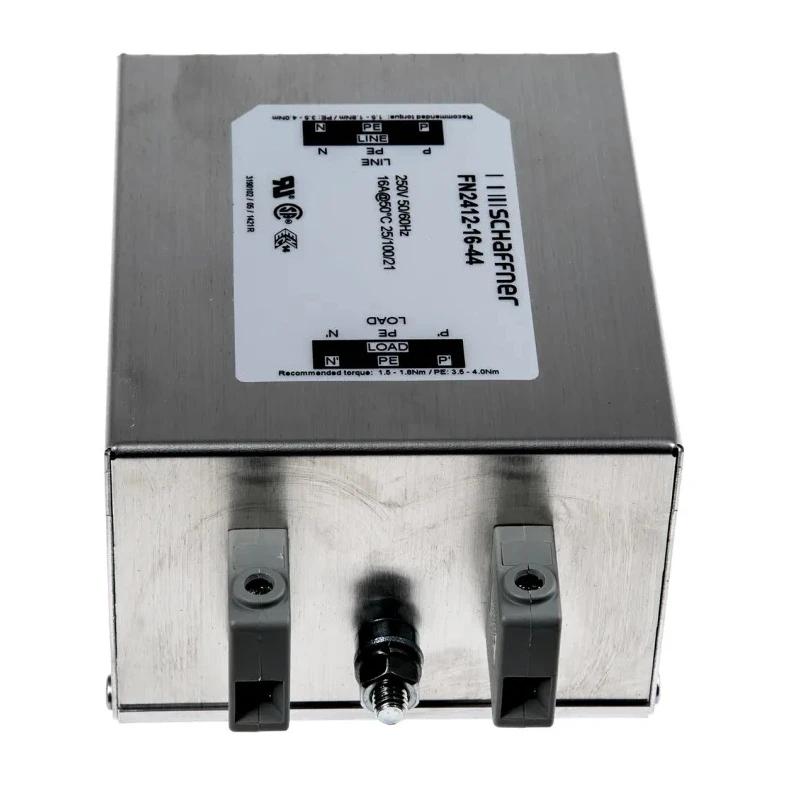

Schaffner Single Phase DIN Rail EMC Filter 16 A 250V ac 400Hz Terminal Block FN2412
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schaffner |
| Height | 73mm |
| Length | 154mm |
| Model | FN2412 |
| Depth | 93mm |
| Mount Type | DIN Rail |
| Operating Frequency | 400Hz |
| Series | FN2412 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Capacitance | 4.7μF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 16A |
| Number of Phases | 1 |
| Leakage Current | 3.4mA |
| Maximum Voltage | 250V ac |
| Termination Style | Terminal Block |
| Power Loss | 3.5W |
Key Features
- Designed for single-phase power line EMI filtering applications.
- Supports a maximum current rating of 16 amps.
- Operates effectively at a voltage of 250V AC and frequency of 400Hz.
- Compact dimensions with 154 mm length, 73 mm height, and 93 mm depth.
- Features a DIN rail mount for easy installation and industrial applications.
- Equipped with industrial-grade terminal blocks ensuring electrical safety.
- Leakage current is low at 3.4 mA for efficient performance.
- Can operate between -25°C and 100°C temperature range.
Product Description
Schaffner FN2412 is a single-phase DIN Rail EMC filter designed for high performance EMI filtering in electrical and industrial applications. It supports a maximum current of 16 A at 250V AC voltage and operates at a frequency of 400Hz, making it suitable for power line interference suppression in sensitive equipment.
The filter series features chokes with high saturation resistance and excellent thermal behavior, ensuring stable performance even in noisy environments and under full load conditions. Its compact size with dimensions of 154 mm length, 73 mm height, and 93 mm depth allows for space-efficient mounting on standard DIN rails.
The terminal block termination style provides fast and secure electrical connections with industrial-grade safety. Operating temperatures range from -25°C to 100°C, suitable for varied industrial conditions. The leakage current is maintained at a low 3.4 mA, reducing energy waste and improving reliability.
This EMC filter is ideal for use in single-phase variable speed motor drives, inverters, converters, and other industrial electronic equipment requiring conducted EMI attenuation. It is built to standards and carries approvals including UL1283 and CSA22.2 No.8 1986, ensuring compliance and safety.
Single-phase EMC filter with DIN rail mounting. Maximum current rating of 16 A for robust applications. Operates at 250V AC and 400Hz frequency. Compact form factor for space efficient installation. Industrial grade terminal block for secure connection.
Low leakage current of 3.4 mA for efficiency. Wide operating temperature range from -25°C to 100°C. Power loss of 3.5 watts under typical load. Suitable for industrial, manufacturing, and electronic equipment EMI suppression.
This product is part of the Schaffner FN2412 series known for superior EMI filtering performance. It fits applications in industrial automation, HVAC systems, manufacturing plants, and other commercial or industrial environments. For users seeking reliable noise suppression on their single-phase lines, this filter is a professional choice available through EnvMart.
Explore more products in our Power Line Filters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FN2412 filter supports a maximum current rating of 16 A.
It operates effectively at a voltage of 250V AC and a frequency of 400Hz.
The dimensions of this model are 154 mm in length, 73 mm in height, and 93 mm in depth.
The operating temperature range is from -25°C to 100°C.
This model features a DIN rail mount for easy installation.
The leakage current is low at 3.4 mA, which helps improve efficiency.
It is equipped with a terminal block termination style for secure electrical connections.
The power loss under typical load is 3.5 watts.
This EMC filter is suitable for single-phase variable speed motor drives, inverters, converters, and other industrial electronic equipment requiring EMI attenuation.
The capacitance value is 4.7μF.
It carries approvals including UL1283 and CSA22.2 No.8 1986, ensuring compliance and safety.
This model has a single stage design.
