HARWIN M20 Series Straight Surface PCB Socket 40-Contact 2 Row 2.54 mm Pitch Solder M20-7872042

Free Delivery in India | Lowest Global Shipping Charges

HARWIN M20 Series Straight Surface PCB Socket 40-Contact 2 Row 2.54 mm Pitch Solder M20-7872042

Name: HARWIN M20 Series Straight Surface PCB Socket 40-Contact 2 Row 2.54 mm Pitch Solder M20-7872042
Brand: HARWIN
SKU: 210678
Price: 4.92 USD
Availability: InStock



Category PCB Sockets Brand HARWIN Condition New

Specifications

Country of Origin	Taiwan
Brand	HARWIN
Orientation	Straight
Current	12A
Model	M20-7872042
Mount Type	Surface
Housing Material	Nylon
Contact Material	Bronze
Series	M20
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	Socket Strip
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Standards/Approvals	RoHS
Contact Plating	Gold
Number of Contacts	40
Contact Gender	Female
Connector System	Board-to-Board

Key Features

Durable phosphor bronze contacts with gold plating ensure reliable electrical connection.
Compact dual-entry design supports both top and bottom wire-to-board connections.
Supports a current rating of 12 A suitable for moderate power applications.
Constructed with a nylon housing for mechanical strength and dielectric insulation.
Operates reliably within temperature range -40°C to 105°C.
Mount type is surface mount technology (SMT) with a straight orientation for easy PCB integration.
Connector system is board-to-board for modular electronic assemblies.
RoHS compliant ensuring environmentally friendly materials and manufacturing.

Product Description

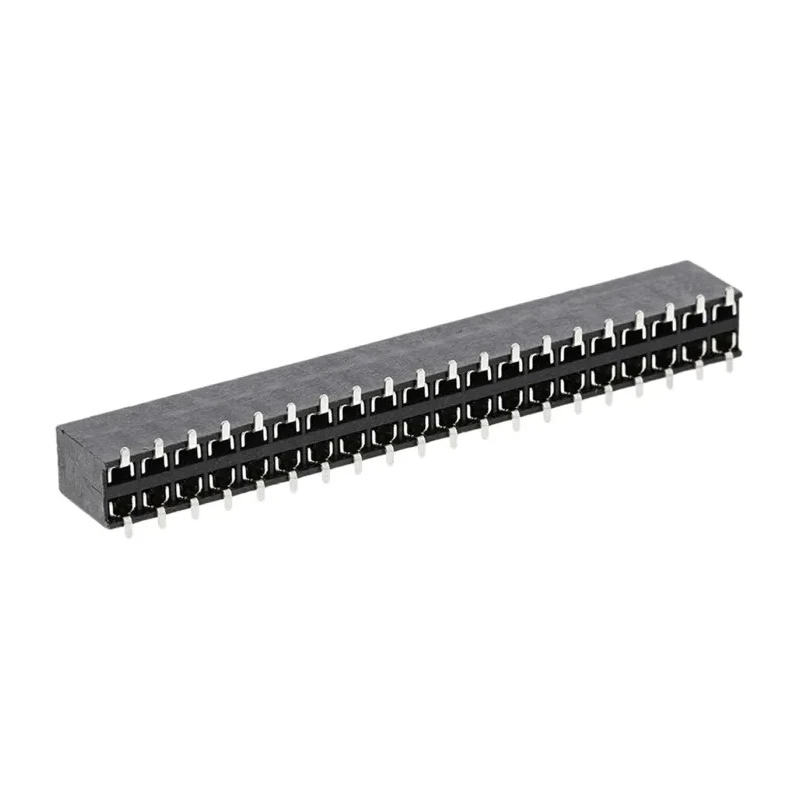

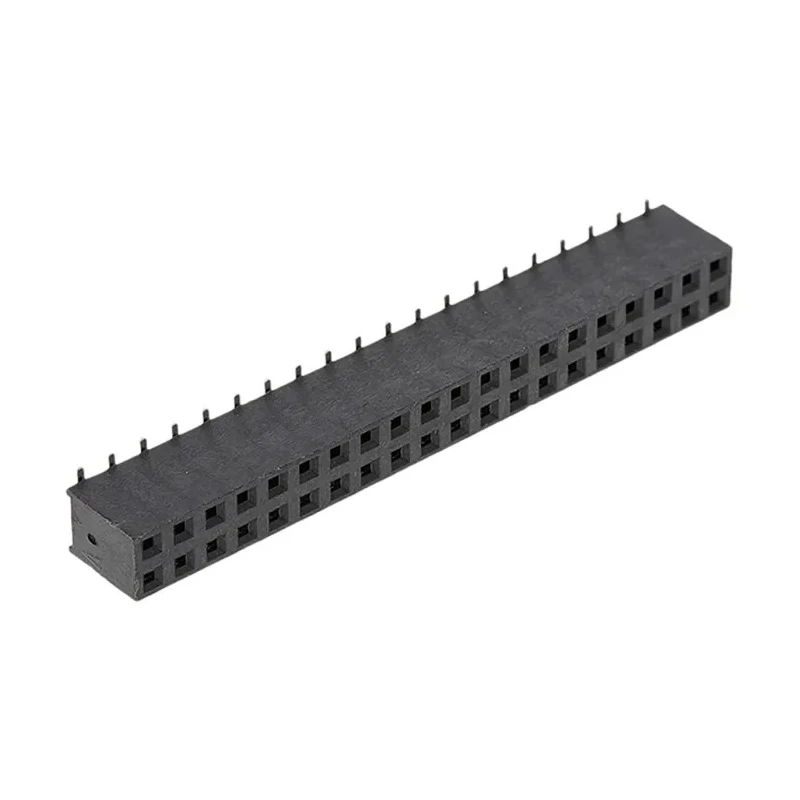

The HARWIN M20-7872042 is a straight surface mount PCB socket connector specifically designed with 40 female contacts arranged in 2 rows at a 2.54 mm pitch. It offers a robust and compact dual-entry SMT housing made from nylon, facilitating both top and bottom wire-to-board connectivity. The contact material is phosphor bronze with a gold plating finish to enhance conductivity and durability, delivering consistent performance in industrial and electronic applications.

This M20 series connector supports up to 12 A current and safely operates over a broad environmental temperature range from -40°C to 105°C. Its surface mount, straight orientation design integrates seamlessly into modern PCB layouts ensuring excellent mechanical retention and electrical integrity. The product is RoHS compliant and manufactured in Taiwan.

These connectors are suited for diverse industrial and commercial uses including consumer electronics assembly, communications hardware, drive and control systems, industrial monitoring equipment, and personal computing. Their dual-entry design improves versatility and assembly efficiency while maintaining a compact footprint on the PCB.

The M20-7872042 socket is supplied in tubes, facilitating automated insertion processes to enhance manufacturing throughput, reducing handling time and improving production efficiency.

Durable phosphor bronze contacts with gold plating ensure reliable electrical connection. Compact dual-entry design supports both top and bottom wire-to-board connections. Supports a current rating of 12 A suitable for moderate power applications.

Constructed with a nylon housing for mechanical strength and dielectric insulation. Operates reliably within a temperature range of -40°C to 105°C. Surface mount straight orientation for easy PCB integration. Ideal for industrial, communication, consumer electronics, and control applications.

RoHS compliant for environmentally responsible use. Made in Taiwan, Province Of China. Explore the HARWIN range and related PCB Sockets at EnvMart for industrial and electronic component needs.
