| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.7mm |
| Length | 1.7mm |
| Model | EDZVT2R10B |
| Mount Type | Surface |
| Series | EDZV |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-523 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 150mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 100nA |
| Nominal Zener Voltage Vz | 10V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 60Ω |

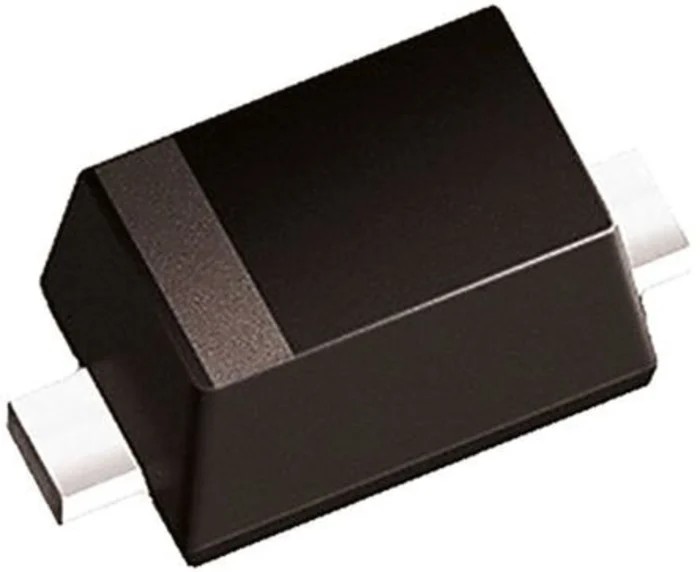

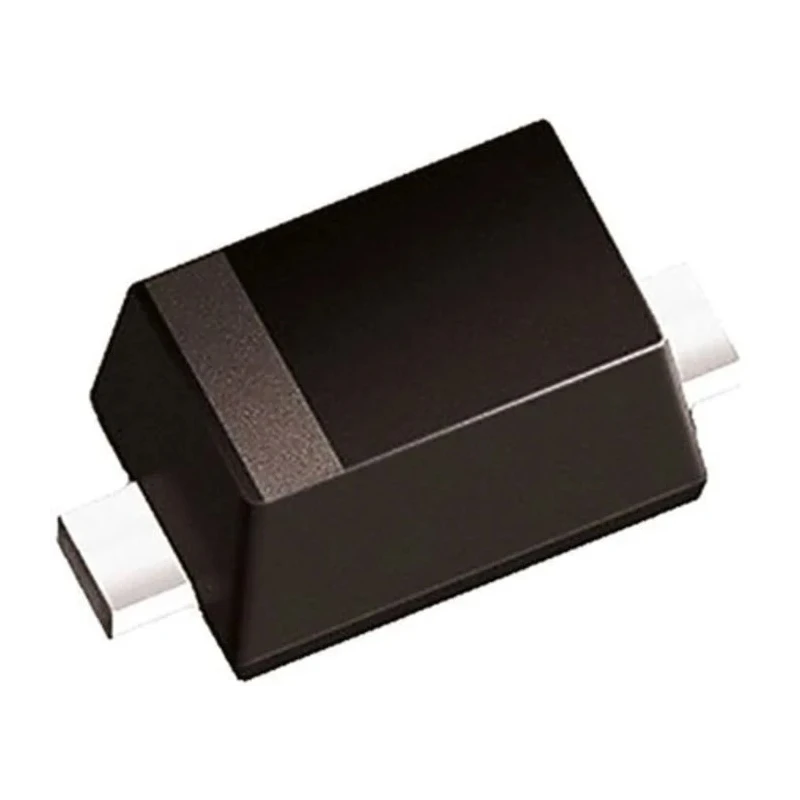

ROHM EDZVT2R10B is a high-quality 1, 10 V single Zener diode available in a surface mount SOD-523 package designed for effective voltage regulation in electronic circuits. With a nominal Zener voltage of 10 V and a maximum power dissipation rating of 150 mW, this diode is ideal for applications requiring voltage stabilization and voltage reference.
The compact surface mount package measures 1.7 mm in length and 0.7 mm in height, allowing for space-saving integration into printed circuit boards. The low reverse leakage current (100 nA max) and stable impedance characteristics (60 Ω max) contribute to reliable performance in sensitive electronics.
ROHM EDZVT2R10B supports a test current of 5 mA and operates reliably up to a maximum temperature of 150°C, making it suitable for diverse operating environments including industrial, consumer electronics, and communication devices.
This diode is a single-element chip configured specifically for voltage regulation with a 2-pin layout facilitating straightforward mounting and electrical connections. Single diode configuration for precise voltage regulation.
Nominal 10 V Zener voltage for stable voltage reference. Surface mount SOD-523 package for compact design. Maximum power dissipation of 150 mW to support low power applications. Small dimensions: 1.7 mm length and 0.7 mm height.
Low maximum reverse leakage current at 100 nA. Test current rating of 5 mA ensuring voltage accuracy. Maximum operating temperature rated at 150°C. Maximum Zener impedance of 60 Ω for stable regulation. 2-pin count for easy PCB integration.
This Zener diode is widely used in electronic circuit design, power supply regulation, voltage stabilization, and protection circuits across industrial, telecommunications, and consumer electronics sectors.
EnvMart offers this ROHM semiconductor device for efficient voltage regulation applications requiring compact surface mount solutions.
