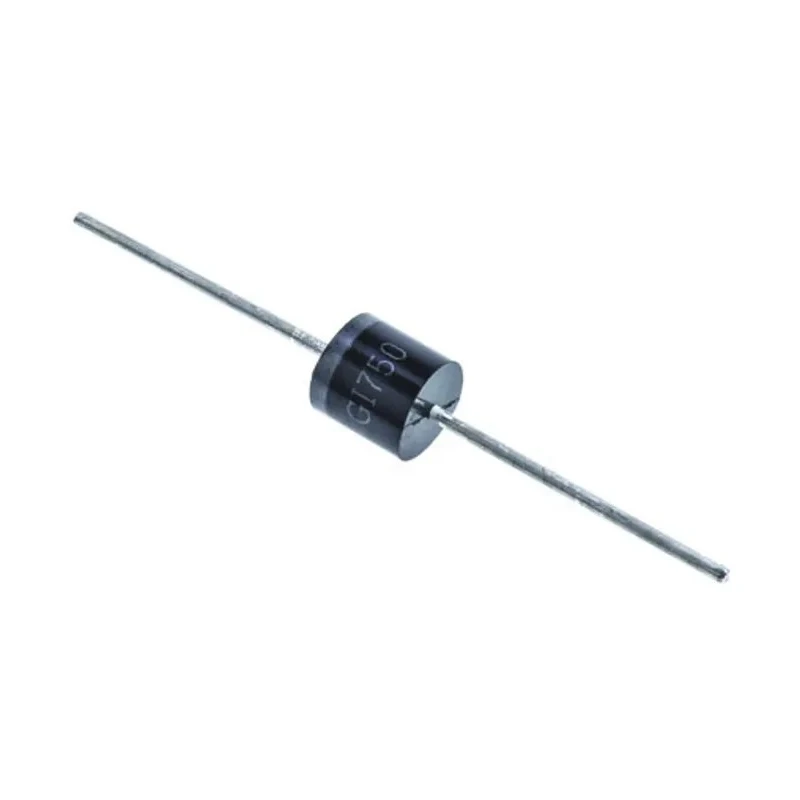

Littelfuse 1-Element Uni-Directional TVS Diode 30kW Peak Pulse Power, 2-Pin P600 Package 30KPA48A

Littelfuse 30KPA48A is a 1-element uni-directional TVS diode engineered for robust surge protection in electronic circuits. It offers 30kW peak pulse power dissipation to shield sensitive electronic equipment from transient voltage events such as those caused by lightning strikes and switching surges.

This diode features a single diode configuration with a minimum breakdown voltage of 53.6 V and a maximum reverse stand-off voltage of 48 V, ensuring excellent clamping capability with a voltage clamp of 81.6 V. Its fast response time of less than 1.0 picoseconds enables immediate transient suppression to prevent damage.

Housed in a durable P600 through-hole package measuring 9.1 mm in length and diameter, it provides ease of installation and reliable mechanical protection. The device is halogen-free and uses matte tin lead-free plating for environmentally responsible manufacturing, with high temperature soldering guaranteed at 265°C for durability under harsh assembly conditions.

Operating temperature range from -55°C to 175°C, this TVS diode maintains exceptional performance in demanding industrial, automotive, and electronic applications. With a peak pulse current rating of 371.3 A, it offers superior surge handling capabilities. Glass passivation of the chip junction enhances stability and longevity of the device.

This diode does not carry specific automotive or other certifications but represents a versatile solution for transient voltage suppression in power and signal line protection in a broad range of electronic equipment and circuits.

Designed to protect sensitive electronics from voltage transients and lightning surges. Features a minimum breakdown voltage of 53.6 V and maximum reverse stand-off voltage of 48 V. Offers fast response time typically less than 1.0 picoseconds for transient protection.

Capable of handling maximum peak pulse current of 371.3 A and clamping voltage of 81.6 V. Compact design with 9.1 mm length and diameter for through-hole mounting. Halogen-free and lead-free plated with matte tin finish.

Operates within temperature range from -55°C to 175°C and high-temp soldering at 265°C. Glass-passivated chip junction for enhanced durability.

This Littelfuse TVS diode series is suitable for industrial electronics, power supplies, telecommunications, and automotive transient protection requirements. Explore similar TVS Diodes and protective semiconductors in the semiconductor category at EnvMart.
