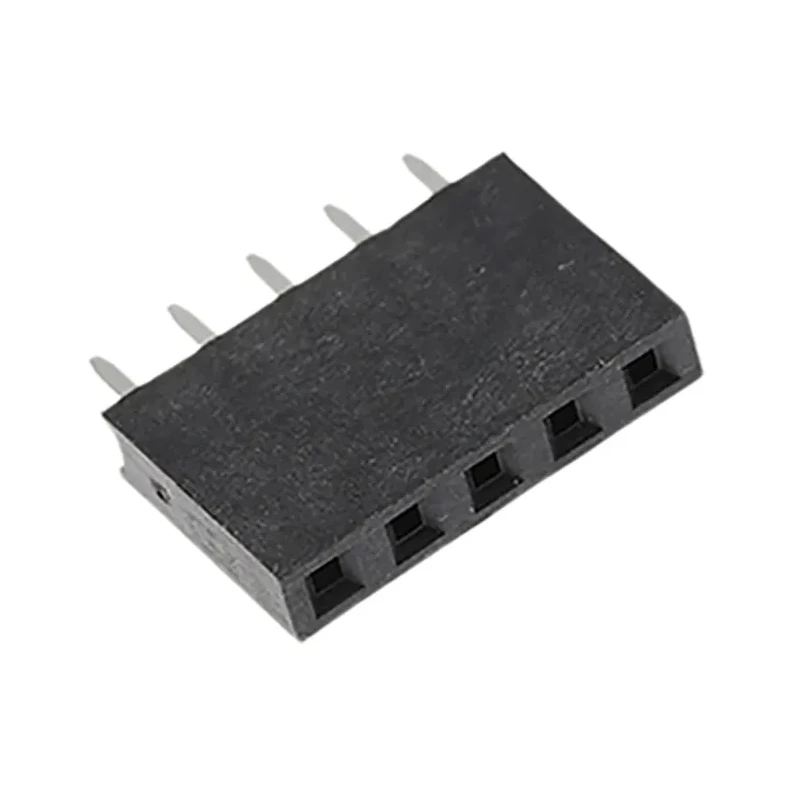

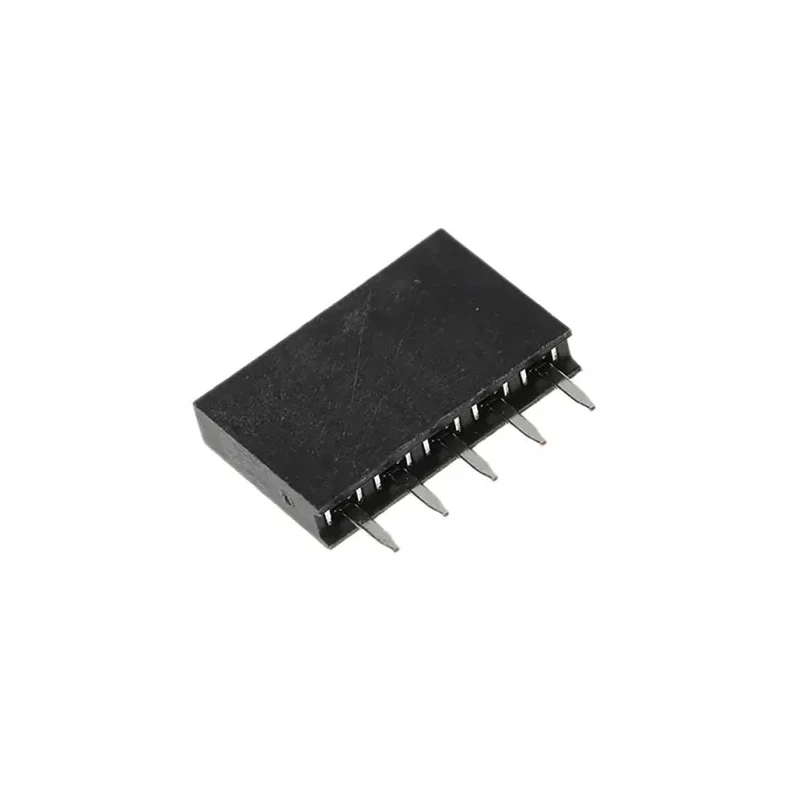

HARWIN M20 Series 5-Contact 1 Row Straight Through Hole PCB Socket 2.54 mm Pitch M20-7820546

HARWIN M20-7820546 is a PCB socket from the M20 series designed for straight through hole mounting with a 2.54 mm pitch. It features a compact and robust design suitable for high-density board-to-board connections in industrial, consumer electronics, communications, drive and control systems, and embedded PC applications.

The socket has 5 female contacts arranged in a single row and supports a current of up to 12 amperes per contact. Its housing is manufactured from high temperature resistant nylon rated to UL94V-0 for flame retardance and durable performance during reflow soldering processes.

The bronze contacts provide excellent conductivity and are plated with tin over nickel to ensure corrosion resistance and enhanced electrical reliability over multiple mating cycles. The termination type is solder, facilitating secure through hole PCB mounting.

This connector operates effectively across a wide temperature range from -55°C to 105°C, making it suitable for various harsh environment industrial and commercial applications. It complies with RoHS standards, guaranteeing compliance with international hazardous substance restrictions.

The M20 series socket is widely used in electronic systems including embedded PCs, motherboards, industrial monitoring systems, and complex consumer electronics. It is designed for sustainability and durability, supporting up to 300 mating operations.

The compact high temperature thermoplastic housing provides thermal stability and mechanical protection. Highly reliable dual beam female contacts enhance electrical connection and reduce failure rate. The socket supports a maximum operating current of 12A per contact for robust power transmission.

Designed for through hole PCB mounting with a solder termination type ensuring mechanical stability. Its 2.54 mm pitch matches industry-standard spacing for ease of integration. Meets environmental compliance with RoHS certification.

Ideal for use in industrial, laboratory, manufacturing, and consumer electronic applications. Manufactured in China ensuring standardized quality with industry approvals.

This product is ideal for engineers and designers requiring reliable, high-performance PCB sockets for demanding electronics applications. Explore more PCB Sockets and related components in the Electronics & Electricals category on EnvMart.
