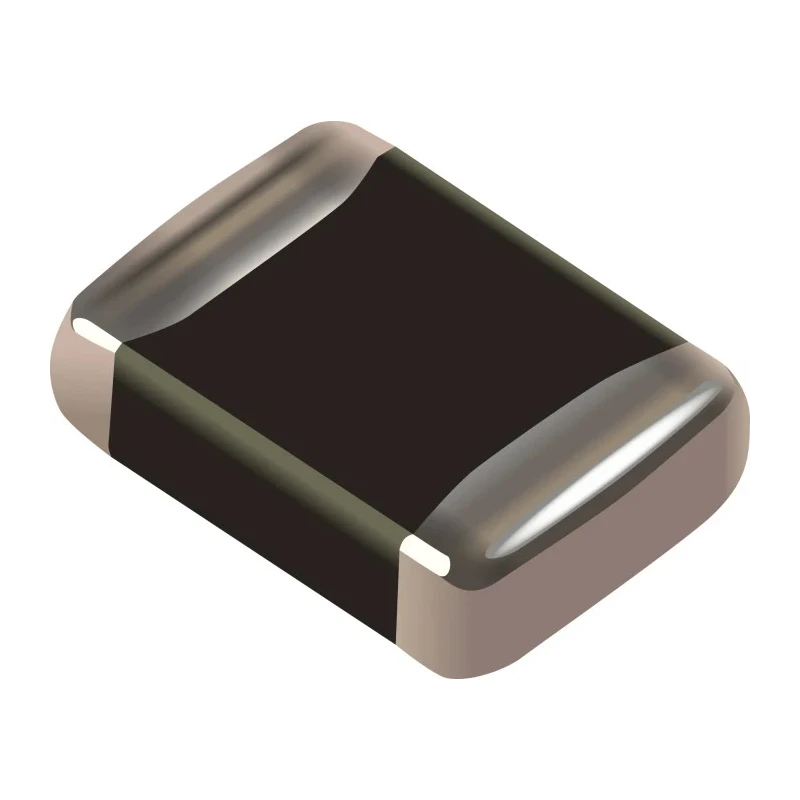

Bourns Low Voltage Surface Mount Varistor 22 V 1 A Clamping Current 38 V 195 pF Capacitance 0603 Package ZV14K0603300NIR1

Free Delivery in India | Lowest Global Shipping Charges

Bourns Low Voltage Surface Mount Varistor 22 V 1 A Clamping Current 38 V 195 pF Capacitance 0603 Package ZV14K0603300NIR1

Name: Bourns Low Voltage Surface Mount Varistor 22 V 1 A Clamping Current 38 V 195 pF Capacitance 0603 Package ZV14K0603300NIR1
Brand: BOURNS
SKU: 168190
Price: 0.08 USD
Availability: InStock



Category Varistor Brand BOURNS Condition New

Specifications

Country of Origin	Slovenia
Brand	Bourns
Material	Metal
THICKNESS	0.95mm
Length	1.6mm
Model	ZV14K0603300NIR1
Depth	0.8mm
Packaging	Tape & Reel
Mount Type	Surface
Series	ZV
Energy Rating	0.3J
Maximum Operating Temperature	125°C
Capacitance	195pF
Minimum Operating Temperature	-55°C
Maximum dc Voltage	18V dc
Standards/Approvals	UL, RoHS
Package/Case	0603
Termination Style	Surface Mount
Maximum AC Voltage	14V ac
Clamping Voltage VC	38V
Clamping Current	1A
Maximum Surge Current	30A
Varistor Voltage	22 V

Key Features

Provides high transient energy absorption with a capacitance of 195 pF.
Surface mount type with a compact 0603 package size.
Clamping voltage rated at 38 V and maximum surge current of 30 A.
Operates reliably over a wide temperature range from -55°C to 125°C.
Constructed with metal material and equipped with surface mount termination style.
Maximum AC voltage is 14 V and maximum DC voltage is 18 V to suit low voltage applications.
Energy rating of 0.3 joules for handling transient surges.
Compliance with UL and RoHS standards ensures quality and environmental safety.

Product Description

The Bourns ZV14K0603300NIR1 is a low voltage varistor designed specifically for protecting sensitive electronic devices from high voltage surges in low voltage regions.

This surface mount varistor features a varistor voltage of 22 V, a capacitance of 195 pF, and supports a clamping current of 1 A and clamping voltage of 38 V, providing excellent transient energy absorption due to improved energy volume distribution and power dissipation.

Its compact 0603 package and surface mount termination style make it suitable for modern electronic circuit designs requiring space-saving components.

The device operates reliably within a wide temperature range from -55°C minimum to 125°C maximum, with a threshold voltage temperature coefficient less than +0.05%/°C, ensuring stable performance under variable environmental conditions.

The varistor can handle a maximum surge current of 30 A, an AC voltage of 14 V, and a DC voltage of 18 V, making it ideal for applications requiring transient voltage suppression and spike absorption.

Constructed with metal material and compliant with UL and RoHS standards, it meets rigorous quality and environmental requirements, although it does not meet automotive standards.

Manufactured in Slovenia, this varistor is suitable for use in industrial electronics, power management systems, consumer electronics, and other applications that demand reliable surge protection.

Provides high transient energy absorption with a capacitance of 195 pF. Surface mount type with a compact 0603 package size. Clamping voltage rated at 38 V and maximum surge current of 30 A. Operates reliably over a wide temperature range from -55°C to 125°C.

Constructed with metal material and equipped with surface mount termination style. Maximum AC voltage is 14 V and maximum DC voltage is 18 V to suit low voltage applications. Energy rating of 0.3 joules for handling transient surges.

Compliance with UL and RoHS standards ensures quality and environmental safety. Manufactured in Slovenia ensuring consistent industrial-grade quality. Explore more surge protection components and Varistors in the Electronics & Electricals category at EnvMart for all your industrial and electronic component needs.
