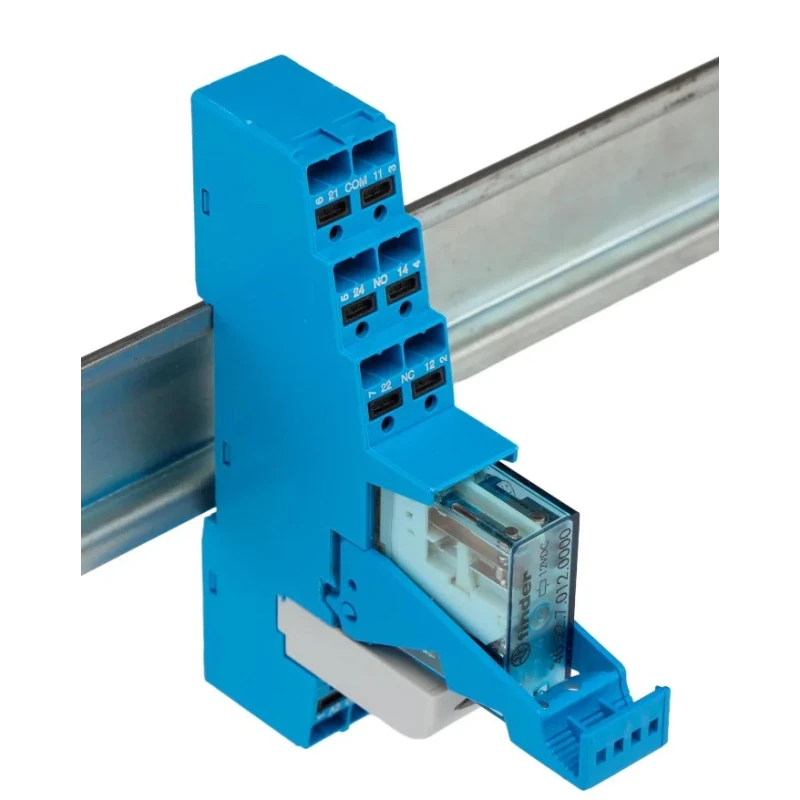

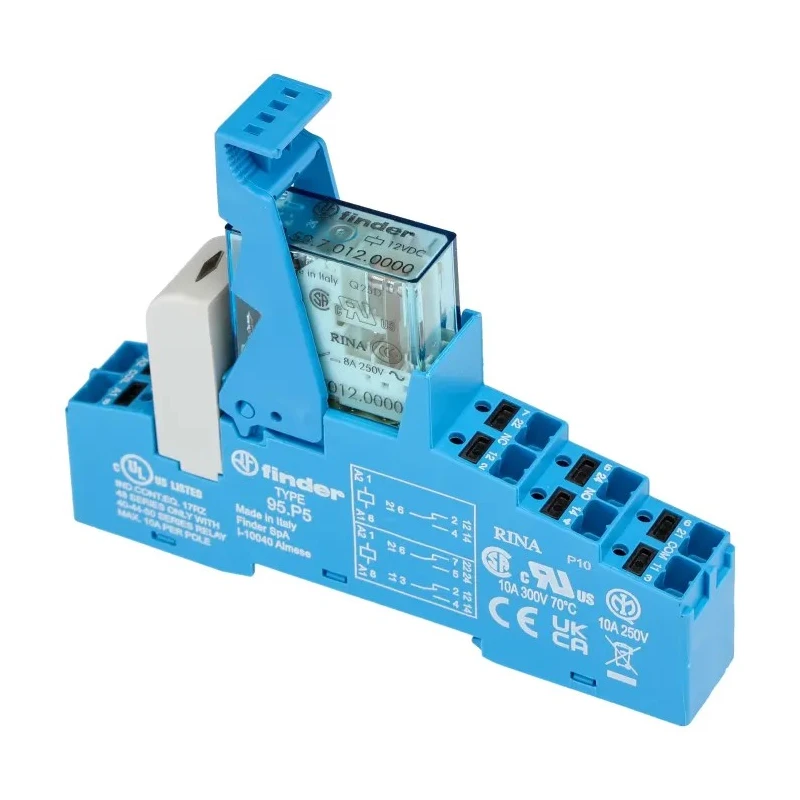

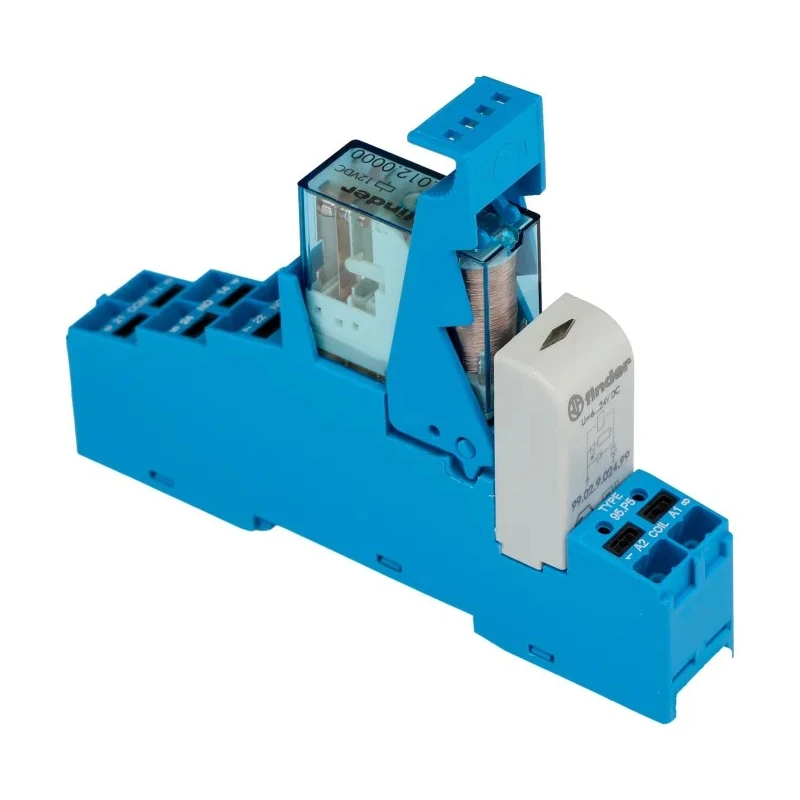

Finder 48 Series Electromechanical Interface Relay, DIN Rail Mount, 12V DC Coil, DPDT-2 CO, 8A Load 48.P5.7.012.0050SPA
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |
| Height | 95.5mm |
| Length | 15.8mm |
| Model | 48.P5.7.012.0050SPA |
| Width | 75.3mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | 48 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT-2 CO |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Push-in |
| Standards/Approvals | RoHS |
| Coil Voltage | 12V dc |
| Coil Current | 41mA |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 400V ac |
Key Features
- Operates with a coil voltage of 12V DC and coil current of 41mA.
- Features double pole double throw (DPDT) contacts for versatile switching.
- Supports switching current of 8A for reliable load handling.
- Constructed with silver alloy contacts for durability and excellent conductivity.
- Compact dimensions of 15.8mm (L) × 75.3mm (W) × 95.5mm (H) for space-saving DIN rail installation.
- Wide operating temperature range from -40°C to +70°C for harsh environments.
- Includes push-in terminal connectivity that simplifies installation and maintenance.
- Complies with RoHS standards ensuring safe and environmentally friendly use.
Product Description
The Finder 48.P5.7.012.0050SPA is a high-performance electromechanical interface relay module designed for industrial and commercial automation systems. Featuring a 12V DC coil voltage and a DPDT-2 CO contact arrangement, it provides reliable switching functions for a wide range of applications. The relay is designed for DIN rail mounting, facilitating easy integration into control panels where space efficiency is critical.
Its compact dimensions (15.8mm length, 75.3mm width, and 95.5mm height) make it suitable for installations with limited room. The device operates with a coil current of 41mA and supports a switching current rating of 8A, allowing it to handle various loads effectively. Silver alloy contacts enhance durability and ensure excellent electrical conductivity, critical for reliable switching over the device's lifespan.
Operating reliably in extreme temperatures from -40°C to 70°C, this relay module is well-suited for environments that demand robustness and performance stability. The inclusion of push-in terminal technology simplifies wiring, reducing installation time and ensuring secure connections. RoHS compliance guarantees that it meets environmental and safety standards.
This interface relay is commonly used in medical and dental machinery, lifts and elevator systems, building automation control panels, warehouse carousel systems, hoists, and cranes. Its high switching voltages up to 400V AC and 30V DC further enhance its versatility across applications requiring safety and control redundancy.
Operates with 12V DC coil voltage and 41mA coil current. DPDT-2 CO contact configuration for dual-circuit control. 8A switching current rating suitable for diverse electrical loads. Silver alloy contact material for reliable conduction.
Compact DIN rail mount design with dimensions 15.8 x 75.3 x 95.5 mm. Wide temperature range from -40°C to 70°C for various environments. Push-in terminals enable easy installation and maintenance. RoHS-compliant for environmental safety.
Ideal for industrial automation including medical equipment, elevators, and warehouse systems.
Choose the Finder 48.P5.7.012.0050SPA interface relay for dependable and flexible operation in your automation and control applications. Discover more products like this in the Electromechanical Interface Relay category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a coil voltage of 12V DC.
It supports a switching current rating of 8A, making it suitable for various electrical loads.
The relay has compact dimensions of 15.8mm in length, 75.3mm in width, and 95.5mm in height.
It features a double pole double throw (DPDT-2 CO) contact configuration for versatile switching.
The unit operates reliably within a temperature range of -40°C to +70°C, suitable for harsh environments.
It includes push-in terminals, which simplify installation and maintenance.
The contacts are made from silver alloy, which enhances durability and ensures excellent conductivity.
Yes, it complies with RoHS standards, ensuring safe and environmentally friendly use.
It can switch up to 400V AC and 30V DC, providing versatility across various applications.
The coil current for this model is 41mA.
This relay is designed for DIN rail mounting, facilitating easy integration into control panels.
It is commonly used in medical and dental machinery, lifts and elevator systems, and building automation control panels.
