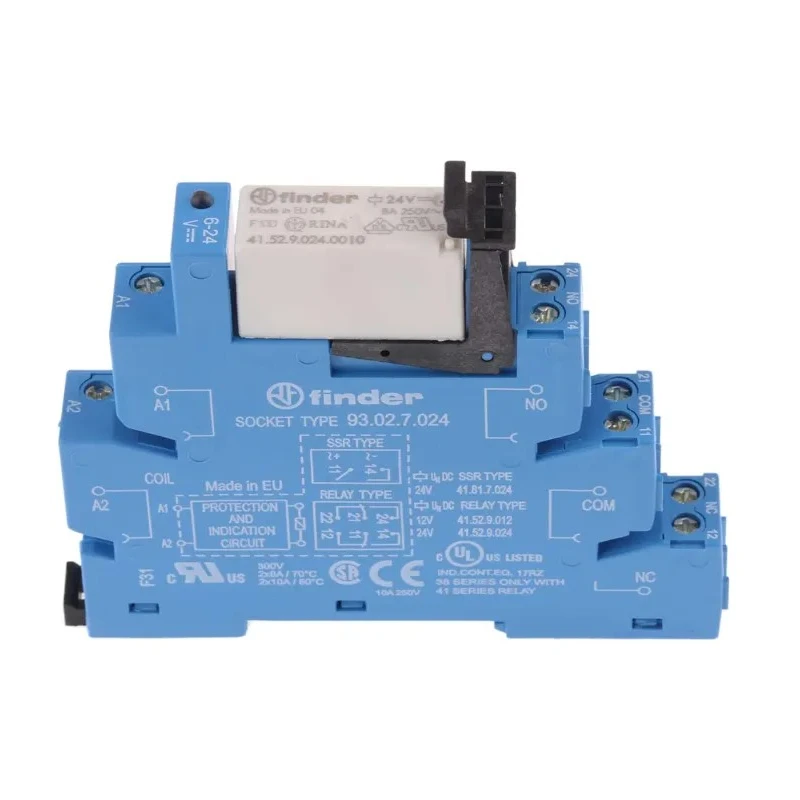

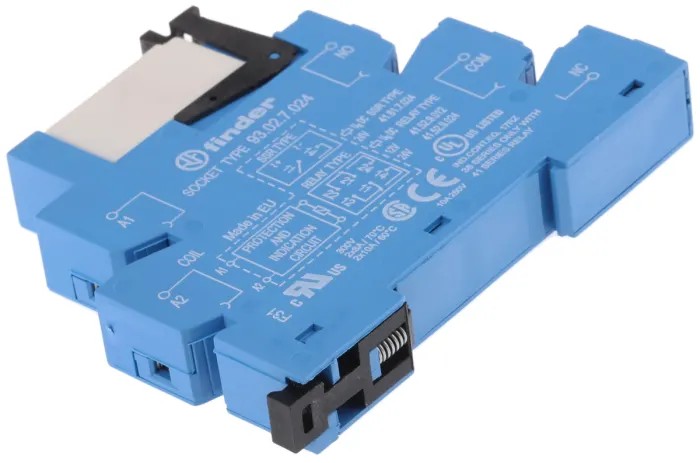

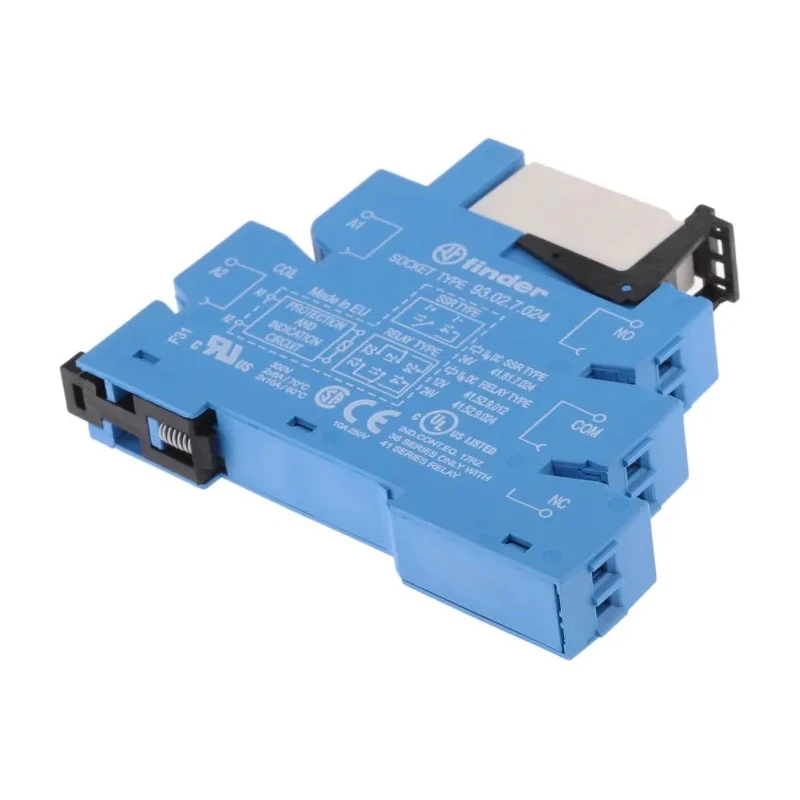

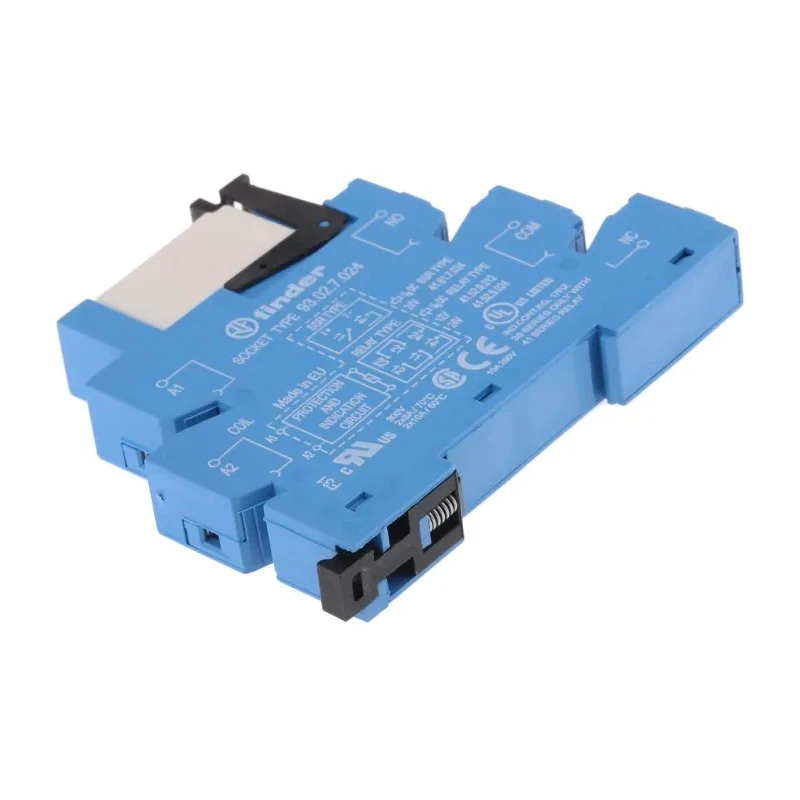

Finder 38 Series Interface Relay DIN Rail 24V DC DPDT 19.5mA 8A 1230Ω 250VAC 38.52.7.024.0050

The Finder 38.52.7.024.0050 is a high-quality interface relay engineered for use in industrial automation and control panels. Built with robust materials, this relay features a DPDT (Double Pole Double Throw) contact configuration to manage two independent loads simultaneously, enabling flexible switching in critical applications. It integrates seamlessly onto DIN rail installations, simplifying both initial mounting and future replacements.

This relay is driven by a 24V DC coil voltage and requires a minimal coil current of just 19.5mA, ensuring energy-efficient operation even in dense control environments. The unit manages switching loads of up to 8A at 250V AC, making it well-suited for switching power in medium-duty circuits, and its 1230Ω coil resistance helps ensure stable and safe actuation. Silver alloy contacts ensure low resistance, reliable signal transfer, and extended service life, reducing maintenance needs over the relay's expected 60,000 cycles under standard conditions.

Installation is simplified with its compact 14mm width, 77.1mm overall dimension, and screw terminals for secure wiring. The relay's enclosure is engineered to withstand harsh conditions with an operating temperature range from -40°C to +70°C, making it equally effective in climatic and industrial process environments. Standard EAC and CE certifications provide further confidence in its safety and performance for international projects.

This model is primarily used in machinery control panels, process automation, and energy management systems, where reliable switching and electrical isolation are critical. It also finds application in safety system circuits, transportation controls, and automated manufacturing lines, where fault-tolerant, durable switching is a necessity.

Engineers and panel builders choose the Finder 38 Series Interface Relay for its combination of performance, installation convenience, and compliance with international standards. Whether integrating with PLC systems or manual control circuits, this relay provides a trusted solution for commercial and industrial switching automation.
