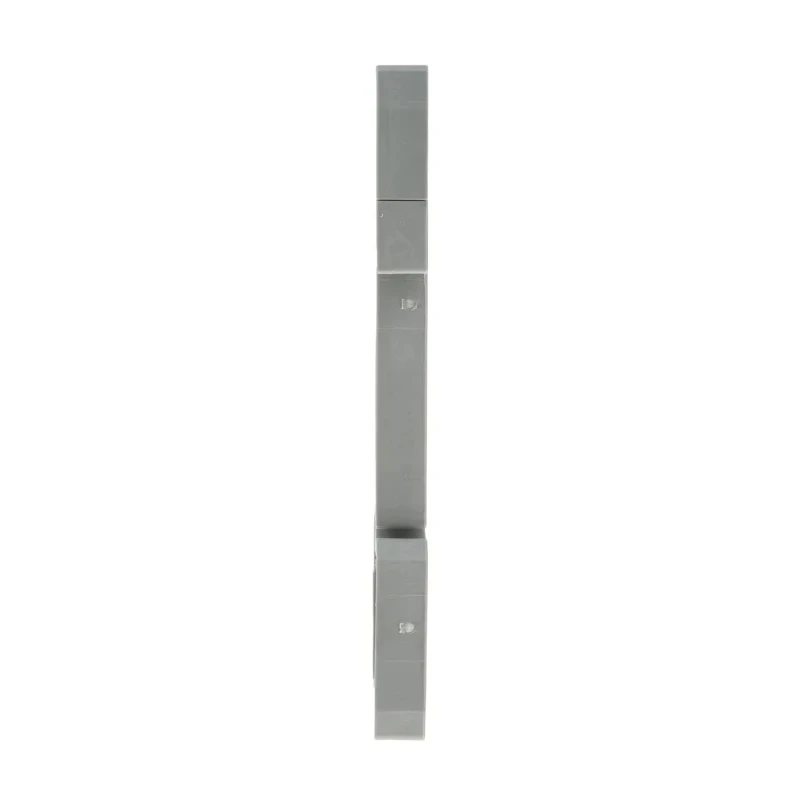

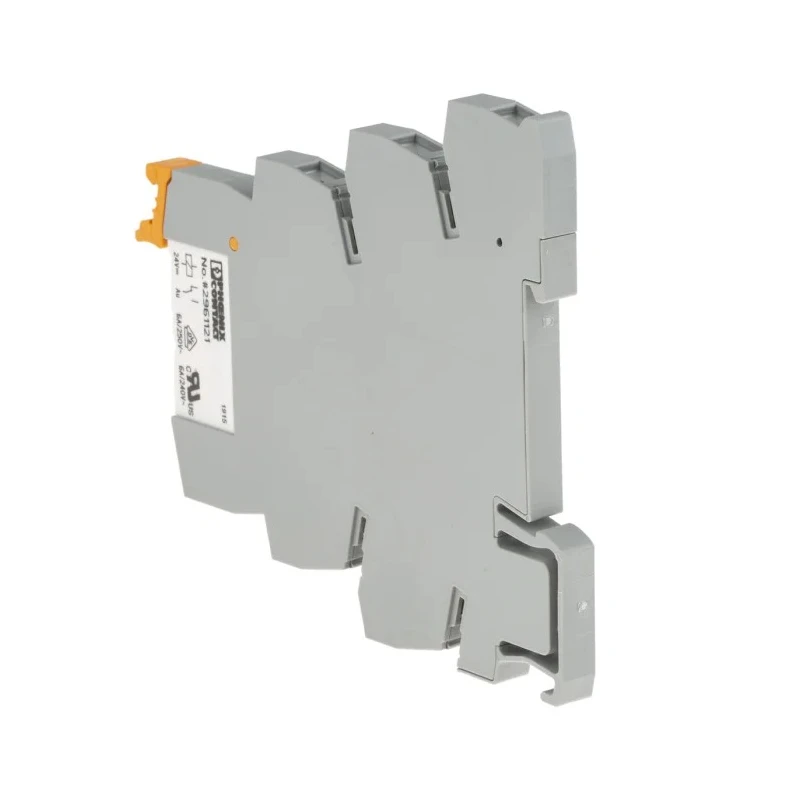

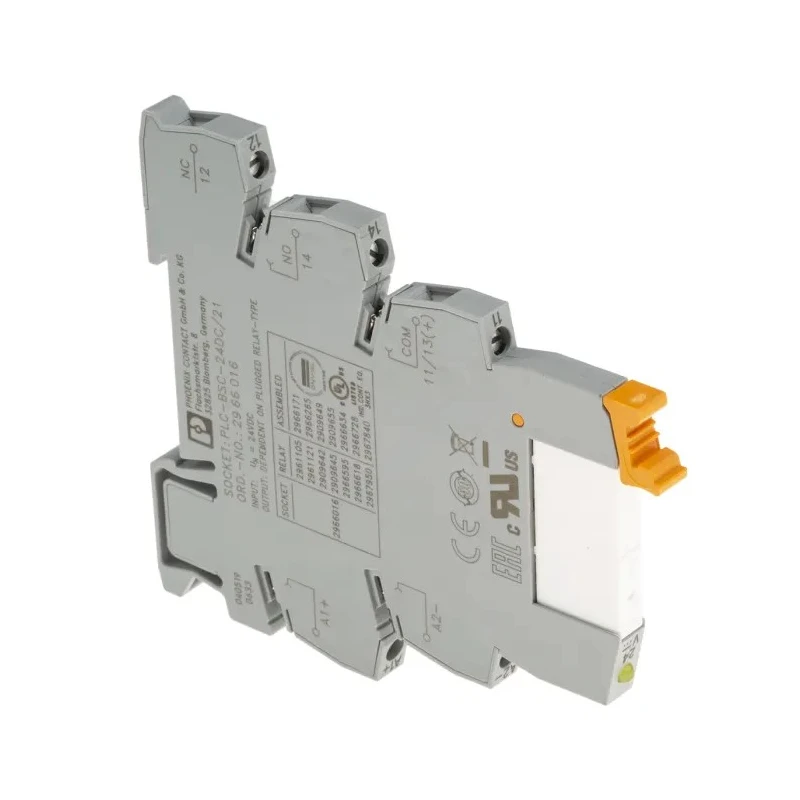

Phoenix Contact Electromechanical Interface Relay DIN Rail Mount 24V DC Coil SPDT 6A 2966265
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Height | 94mm |
| Length | 80mm |
| Model | 2966265 |
| Width | 6.2mm |
| Mount Type | DIN Rail |
| Contact Material | Gold Plated |
| Series | PLC-RSC- 24DC/21AU |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Screw |
| Standards/Approvals | EAC, UL |
| Coil Resistance | 2660Ω |
| Coil Voltage | 24V dc |
| Coil Current | 9mA |
| Switching DC Voltage | 36V dc |
| Switching AC Voltage | 30V ac |
Key Features
- Coil voltage of 24 V DC suitable for industrial automation.
- Switching current rating of 6 A supports robust electrical loads.
- Single Pole Double Throw (SPDT) contact configuration for versatile applications.
- Gold-plated contacts ensure reliable conductivity and corrosion resistance.
- Compact dimensions of 80 mm (L) x 94 mm (H) x 6.2 mm (W) save DIN rail space.
- Screw terminal connection provides secure and easy wiring.
- Operating temperature range from -40°C to 60°C enables use in harsh environments.
- Compliance with EAC and UL standards ensures safety and reliability.
Product Description
Phoenix Contact 2966265 Electromechanical Interface Relay offers a compact DIN rail mount solution with a 24V DC coil, making it ideal for automation and control systems requiring reliable switching capabilities. This interface relay serves as a vital link between automation equipment and peripheral devices, enabling effective electrical isolation and power amplification within industrial programmable logic controllers (PLCs).
The relay features a Single Pole Double Throw (SPDT) contact configuration with gold-plated contacts, enhancing conductivity and protection against wear and corrosion. Its slimline form factor - 80 mm length, 94 mm height, and 6.2 mm width - optimizes DIN rail space utilization.
The coil current is 9 mA with a coil resistance of 2660 Ω, operating at 24 V DC. It has a rated switching current of 6 A and supports switching voltages up to 36 V DC and 30 V AC. The screw terminals allow easy, maintenance-free connection while maintaining high contact force and secure conductor fixation.
Engineered to sustain operating temperatures from -40°C up to 60°C, this relay is suited for demanding industrial environments, including automotive automation and machinery control. The plug-in miniature relay design exhibits resistance to shock and vibration, ensuring operational stability under harsh conditions.
Safety certifications such as EAC and UL 94-V0 flame retardance attest to its reliability. This model is produced in Germany, assuring high manufacturing quality. Coil Voltage: 24 V DC. Switching Current: 6 A. Contact Configuration: SPDT.
Contact Material: Gold Plated. Mounting Type: DIN Rail. Terminal Type: Screw. Operating Temperature: -40°C to 60°C. Dimensions: 80 x 94 x 6.2 mm (LxHxW). Coil Resistance: 2660 Ω. Coil Current: 9 mA.
This Phoenix Contact interface relay is commonly applied in industrial automation, manufacturing lines, control panels, and signal conditioning systems. It enables cost-effective control solutions with space-saving design optimized for DIN rail mounting. It is part of the PLC-RSC-24DC/21AU relay series known for robustness and flexibility.
For additional Phoenix Contact automation and relay products, explore the relevant categories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this model is 24 V DC, making it suitable for various industrial automation applications.
It has a switching current rating of 6 A, which supports robust electrical loads in control systems.
This relay features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile applications in automation.
The dimensions of this unit are 80 mm in length, 94 mm in height, and 6.2 mm in width, optimizing space on DIN rails.
It operates within a temperature range of -40°C to 60°C, making it suitable for harsh industrial environments.
The contacts are gold-plated, which enhances conductivity and provides corrosion resistance.
This relay uses screw terminal connections, ensuring secure and easy wiring.
It can switch voltages up to 36 V DC and 30 V AC, accommodating a range of applications.
The coil resistance is 2660 Ω, which is relevant for calculating the current draw when the relay is activated.
This model complies with EAC and UL standards, ensuring safety and reliability in its applications.
It is commonly applied in industrial automation, manufacturing lines, control panels, and signal conditioning systems.
This electromechanical interface relay is part of the PLC-RSC-24DC/21AU series, known for its robustness and flexibility.
