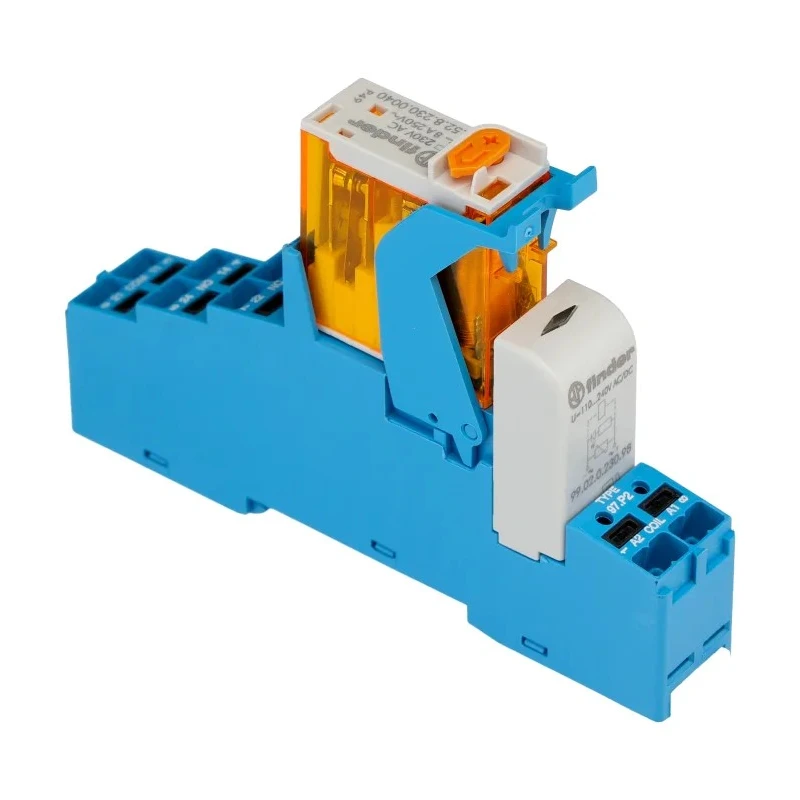

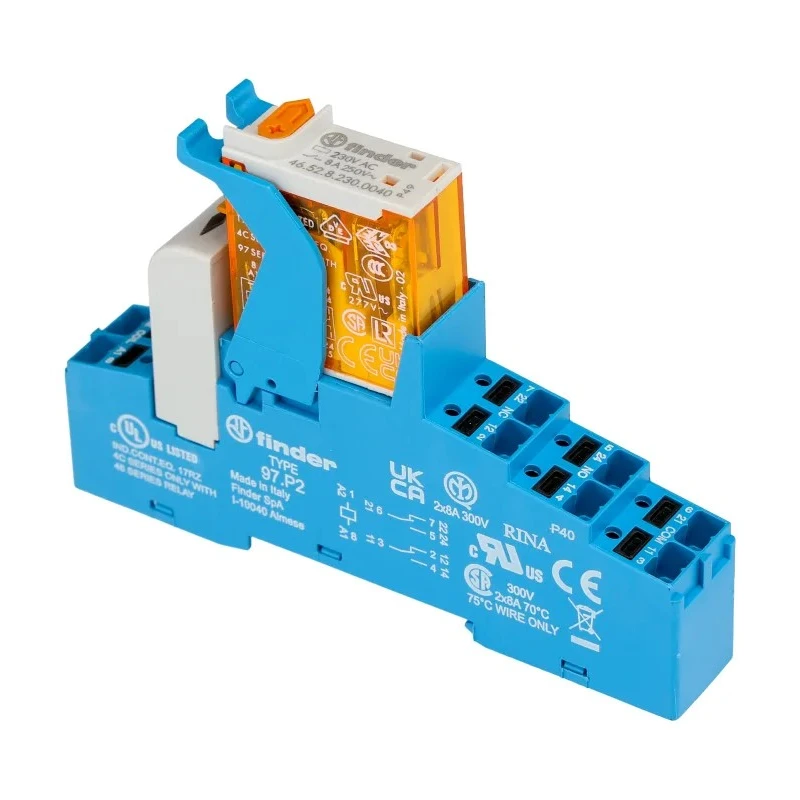

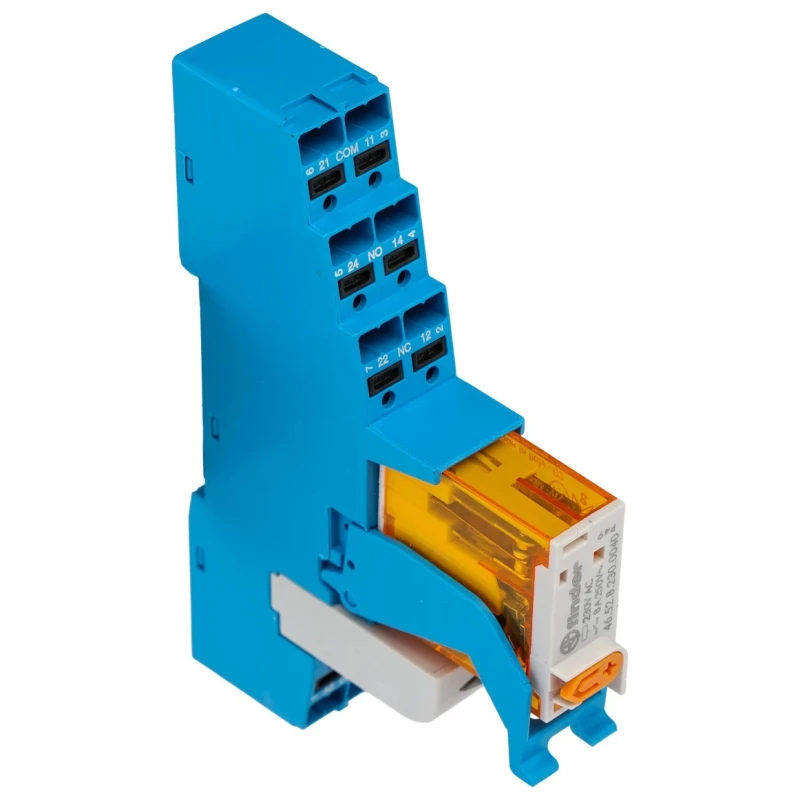

Finder 4C Series Interface Relay DIN Rail 230V AC Coil DPDT-2 CO 8A 4C.P2.8.230.0060SPA
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |
| Height | 95.5mm |
| Length | 15.8mm |
| Model | 4C.P2.8.230.0060SPA |
| Width | 66.8mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | 4C |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT-2 CO |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Push-in |
| Standards/Approvals | RoHS |
| Mechanical Life | 10 million cycles |
| Coil Resistance | 28000Ω |
| Coil Voltage | 230V ac |
| Coil Current | 5mA |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 440V ac |
| Finder 4C Series Interface Relay Module, DIN Rail Mount, 230V ac Coil, DPDTBrand | Finder |
Key Features
- Features a high-quality silver alloy contact material for reliable performance.
- Designed for DIN rail mounting, simplifying integration into industrial control panels.
- Rated for operation with a 230V AC coil and 8A switching current.
- Compact construction with dimensions of 15.8 x 66.8 x 95.5 mm.
- Supports a wide switching voltage range up to 440V AC and 30V DC.
- Temperature operation range from -40°C to +70°C for diverse environments.
- Push-in terminals enable quick and secure wiring.
- DPDT-2 CO relay configuration enhances circuit control flexibility.
Product Description
Finder 4C.P2.8.230.0060SPA Interface Relay from the 4C Series is engineered for demanding automation and control applications. This device features a robust DPDT-2 CO contact configuration and is designed for DIN rail mounting, streamlining installation into industrial electrical panels.
The relay operates with a 230V AC coil voltage and offers up to 8A switching current. Its contact material is silver alloy, ensuring reliability and longevity through more than 10 million mechanical cycles. The compact form factor measures 15.8 mm (length), 66.8 mm (width), and 95.5 mm (height), making it ideal for space-saving panel layouts.
It supports a wide range of switching voltages, including up to 440V AC and 30V DC, providing versatility across high and low voltage applications. The push-in terminal type facilitates fast and secure wire connections, while onboard supply status indication enhances operational awareness and troubleshooting.
High mechanical durability for continuous industrial use. Wide operating temperature range, -40°C to +70°C, for reliable performance in extreme conditions. RoHS-compliant, supporting environmental and safety standards. Country of origin: Italy, recognized for precision engineering in relay design.
Ideal for escalator systems, tunnel lighting, hoists, cranes, carousel warehouses, and electrical distribution systems where reliable switching is essential.
The DPDT-2 CO configuration provides flexible switching for control circuits, making this relay suitable for a vast range of use cases in manufacturing, building automation, HVAC, and electrical distribution. The push-in terminal innovation reduces wiring time, ensuring efficiency and consistent connections.
Discover more relays and industrial automation products from Finder in the Electromechanical Interface Relay category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 8A.
It operates with a coil voltage of 230V AC.
The dimensions of this relay are 15.8 mm in length, 66.8 mm in width, and 95.5 mm in height.
This model features a DPDT-2 CO contact configuration, providing flexible switching capabilities.
It supports a maximum switching voltage of up to 440V AC and 30V DC.
This relay utilizes push-in terminals for quick and secure wiring connections.
The operating temperature range is from -40°C to +70°C.
It is designed for a mechanical life of over 10 million cycles.
Yes, it is RoHS compliant, supporting environmental and safety standards.
The relay is manufactured in Italy, known for its precision engineering in relay design.
This relay is suitable for applications such as escalator systems, tunnel lighting, hoists, cranes, and electrical distribution systems.
The coil current for this relay is 5mA.
