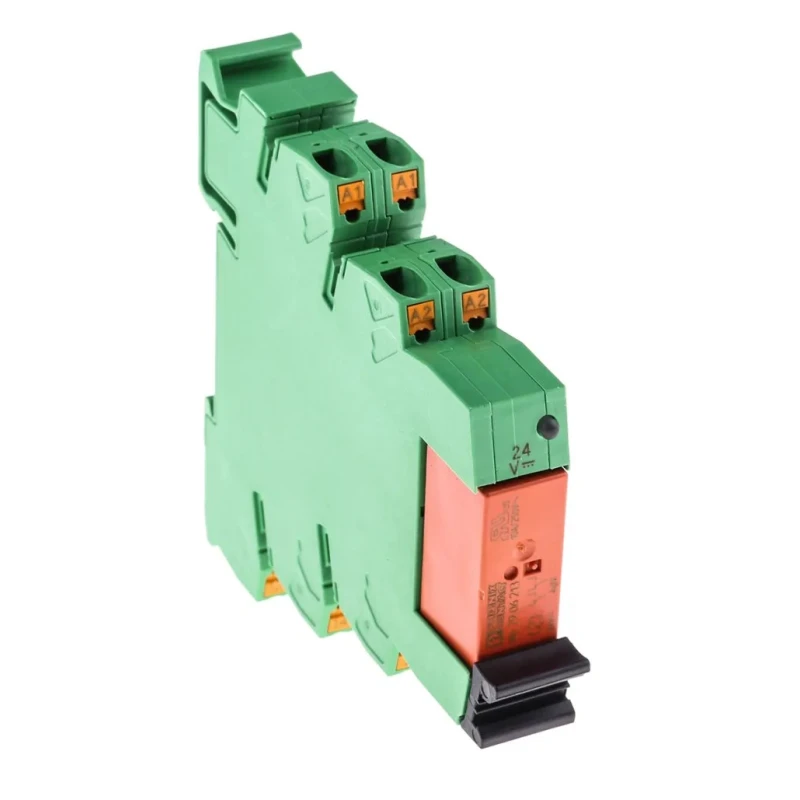

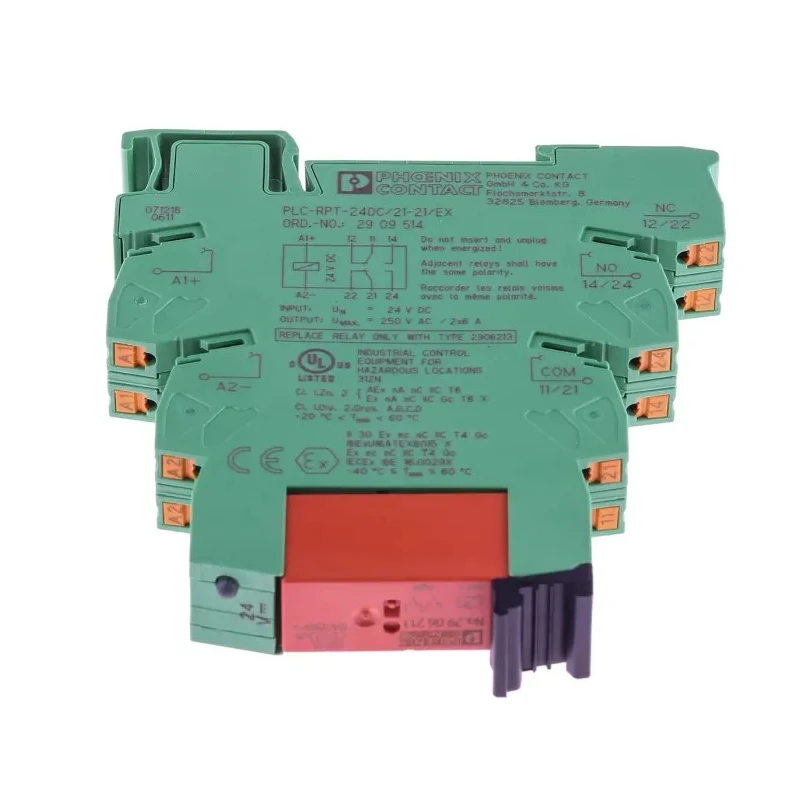

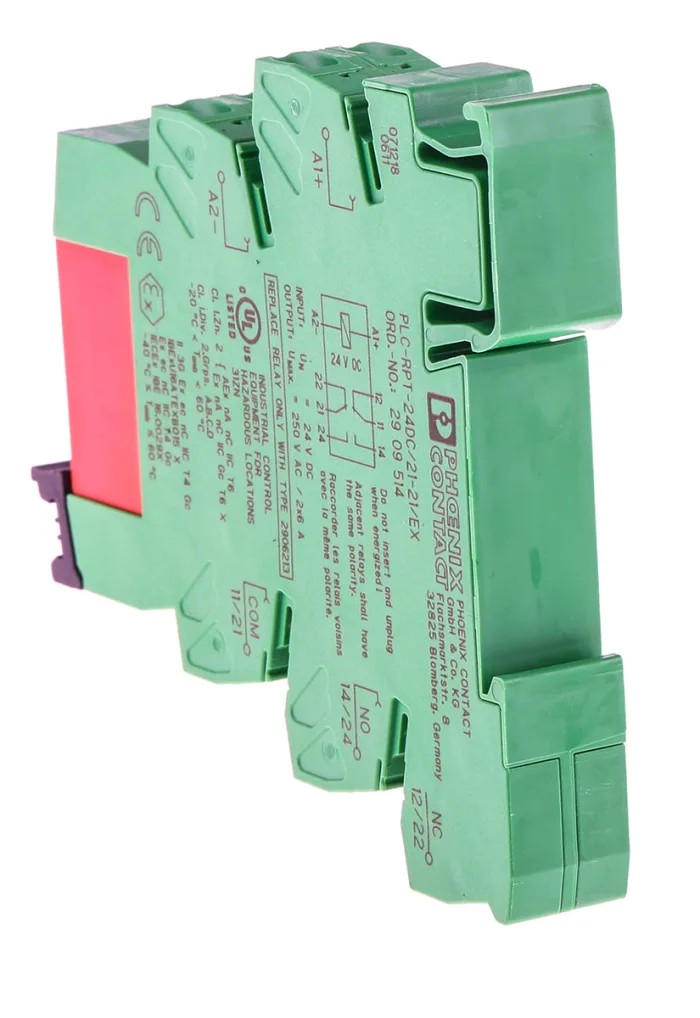

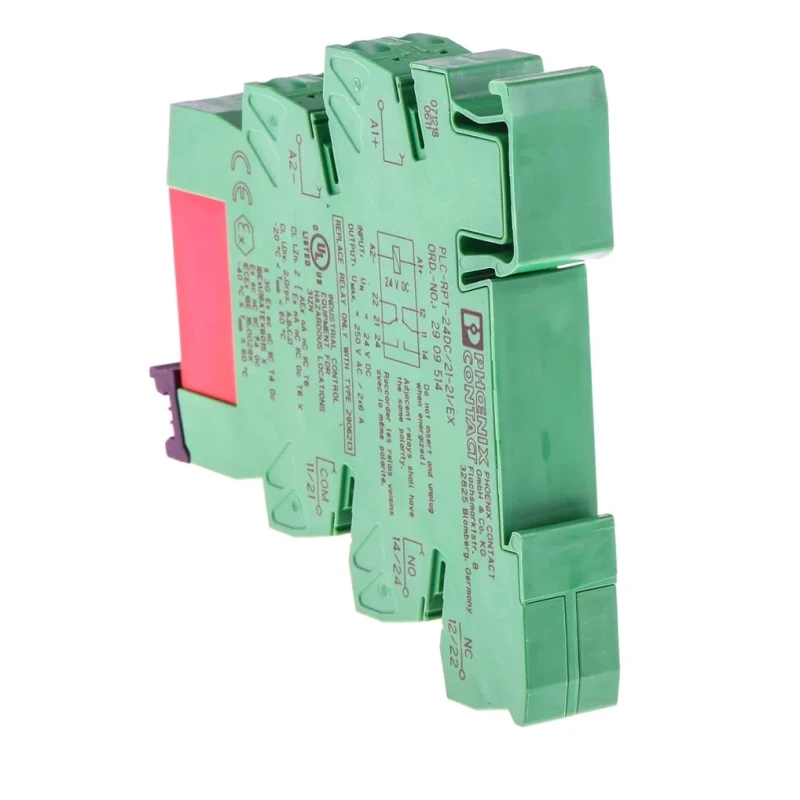

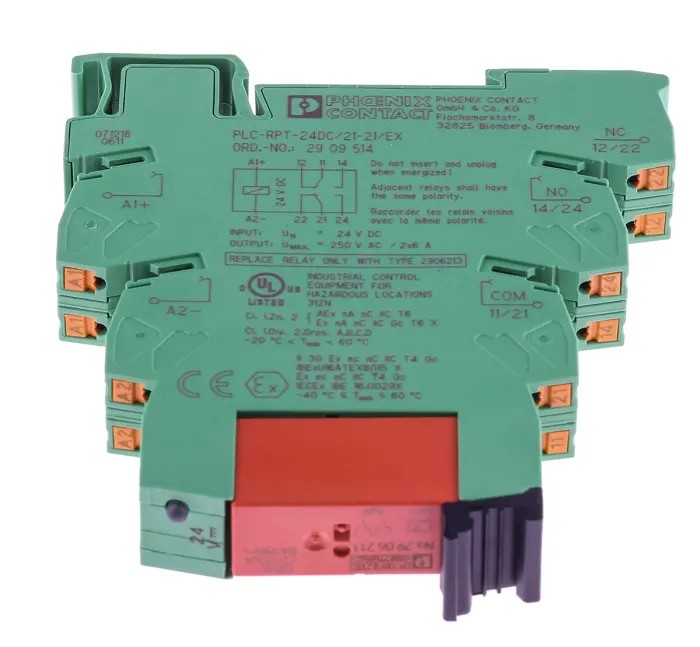

Phoenix Contact Electromechanical Interface Relay DIN Rail Mount 24V DC Coil DPDT 18mA Coil Current 2909514
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Height | 80mm |
| Length | 14mm |
| Model | 2909514 |
| Width | 94mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | PLC-RPT- 24DC/21-21/EX |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10mA |
| Terminal type | Push-in |
| Standards/Approvals | IEC 60947-5-1 |
| Coil Voltage | 24V dc |
| Coil Current | 18mA |
| Switching DC Voltage | 5V dc |
| Switching AC Voltage | 5V ac |
Key Features
- Operates with 24V DC coil voltage for reliable switching.
- Features double pole double throw (DPDT) contact configuration.
- Designed for DIN rail mounting with push-in terminal connection.
- Low coil current consumption of 18mA increases energy efficiency.
- Switching current rated up to 10mA for signal applications.
- Suitable for operating temperatures ranging from -40°C to 60°C.
- Silver alloy contact material ensures superior conductivity and durability.
- Complies with IEC 60947-5-1 standards for interface relays.
Product Description
Phoenix Contact 2909514 Electromechanical Interface Relay is a compact DIN rail mount relay module designed for industrial and automation applications requiring reliable signal switching with isolation between coil and contact circuits.
This model features a 24V DC coil voltage with a low 18mA coil current for energy-efficient operation. It provides a double pole double throw (DPDT) contact configuration suitable for controlling multiple circuits without interference.
The relay incorporates push-in terminal technology for secure and easy wiring on standard DIN rails, streamlining installation in electrical panels. The contacts are made of silver alloy, offering excellent conductivity and longevity under switching loads up to 10mA, ideal for signal-level applications.
The relay operates safely within a wide temperature range from -40°C to +60°C, making it suitable for harsh industrial environments. Compliance with IEC 60947-5-1 standards guarantees product safety and performance.
This relay series is also approved according to ATEX/IECEx for use in Zone 2 hazardous locations and Class I Division 2 areas, extending its applicability in demanding industrial sectors.
Operates with 24V DC coil voltage for reliable switching. Double pole double throw (DPDT) contact configuration for versatile circuit control. DIN rail mounting with push-in terminal connection facilitates quick installation.
Low coil current of 18mA reduces power consumption. Switching current capacity of 10mA suitable for control signals. Temperature range -40°C to 60°C supports operation in extreme environments. Silver alloy contacts provide high conductivity and durability.
Meets IEC 60947-5-1 safety and performance standards. Approved for hazardous area use with ATEX/IECEx certifications. Compact dimensions: 80mm height, 94mm width, 14mm length. Typical applications include automation systems, control cabinets, and signal isolation in industrial, manufacturing, and process control environments.
Explore the wide range of Phoenix Contact interface relays and electrical components on EnvMart for advanced industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC.
It features a double pole double throw (DPDT) contact configuration.
The maximum switching current capacity is 10mA, suitable for signal applications.
The coil current consumption is low at 18mA, which enhances energy efficiency.
It can operate safely within a temperature range of -40°C to +60°C.
This model uses push-in terminal technology for secure and easy wiring.
The relay has dimensions of 80mm in height, 94mm in width, and 14mm in length.
It complies with IEC 60947-5-1 standards for interface relays.
The country of origin for this relay is Germany.
The contacts are made of silver alloy, which provides excellent conductivity.
Yes, it is approved according to ATEX/IECEx for use in Zone 2 hazardous locations and Class I Division 2 areas.
It is suitable for automation systems, control cabinets, and signal isolation in industrial environments.
