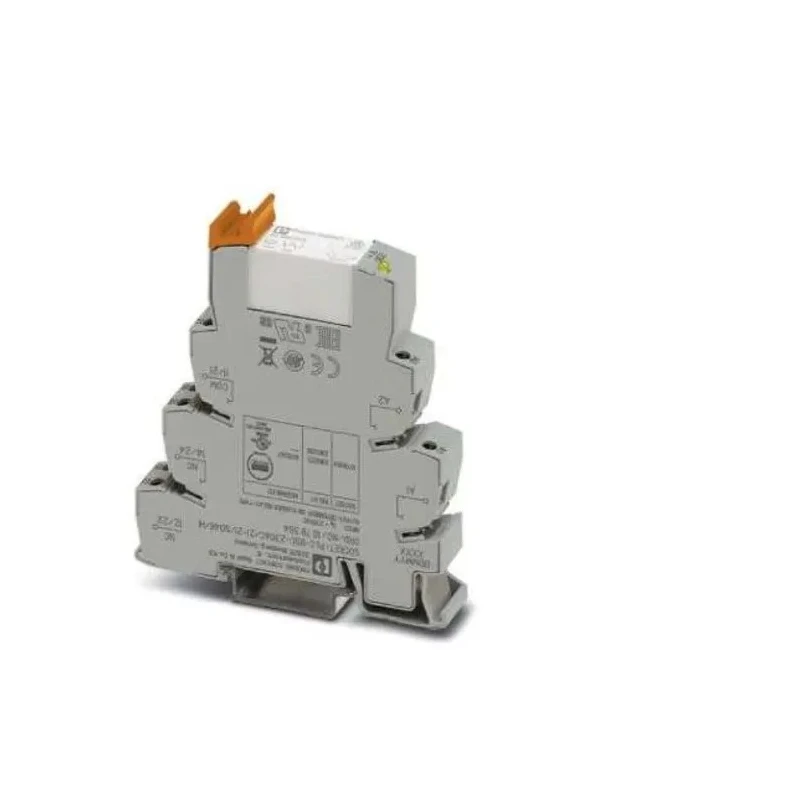

Phoenix Contact HI Series Relay Module DIN Rail 60V DC Coil DPDT PLC-RPT-230AC/21-21/SO46/HI SO46

Phoenix Contact SO46 HI Series Relay Module combines robust engineering and compact packaging for demanding industrial automation projects. The PLC-RPT-230AC/21-21/SO46/HI module is specifically designed for DIN rail mounting, allowing easy integration into control panels and systems.

This relay module features a DPDT (Double Pole Double Throw) contact configuration, suitable for flexible control and switching in circuits requiring isolation or dual output. The 60V DC coil voltage delivers precise actuation, making it ideal for PLC interfacing and signal conditioning tasks in manufacturing and process industries.

The relay's coil current is rated at 38mA, and the non-latching coil type supports rapid response and reset in control environments. Rugged screw terminals facilitate secure wiring, and the silver alloy (AgNi) contact material provides superior reliability, excellent conductivity, and wear resistance, supporting extended operational life under frequent cycles.

The module's minimum operating temperature is -40°C and maximum is 70°C, ensuring performance in harsh environments. With dimensions of 50mm length, 15mm height, and 10mm width, its compact size conserves panel space. Rated for switching DC voltage up to 60V and AC voltage up to 240V, it handles a maximum switching current of 1A, and can manage inrush currents up to 15A for short durations.

Quick and secure DIN rail installation optimizes panel space. DPDT contact configuration gives versatile circuit control. Operates reliably across a wide temperature range (-40°C to 70°C). Silver alloy contacts ensure efficient operation with extended lifespan.

Handles high AC and DC voltages for flexible industrial applications. RoHS-compliant construction for environmental responsibility. Screw terminals simplify installation and maintenance. Suitable for PLC interface, signal relay, machine automation, laboratory process control, and commercial equipment.

German origin assures quality and consistency for industrial users.

This relay module is commonly used in industrial automation systems, manufacturing lines, signal relay panels, laboratory process control, and commercial equipment requiring robust interfacing and switching solutions. With its high reliability and compliance standards, Phoenix Contact's relay module is preferred in sectors such as power distribution, HVAC, CNC automation, and environmental monitoring.
