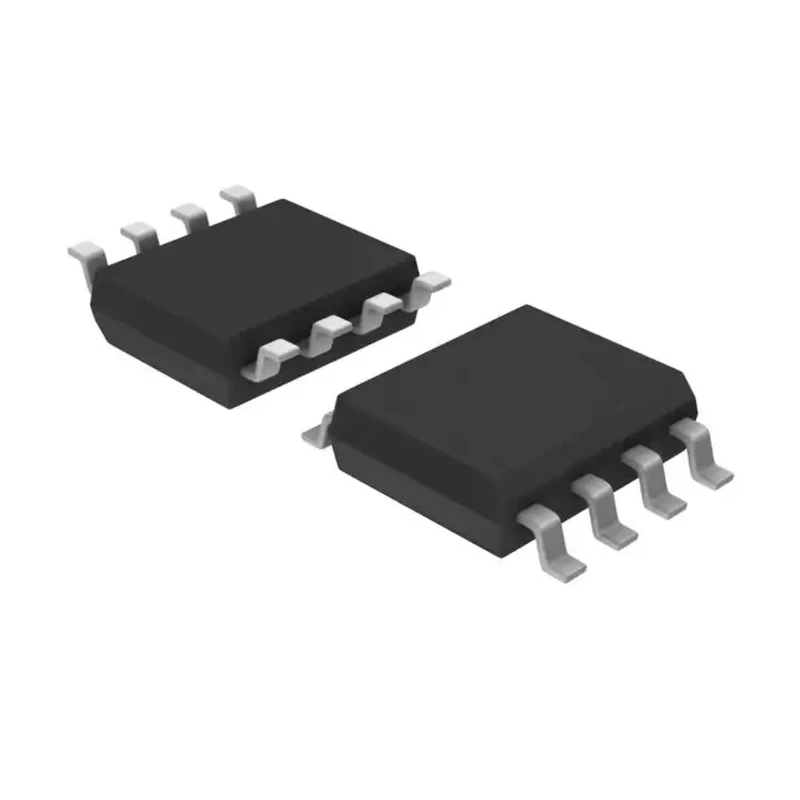

Renesas Electronics PS9821-1-F3-AX DC Input Photocoupler, Surface Mount, 8-Pin SO Package PS9821-1-F3-AX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Model | PS9821-1-F3-AX |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | PS |
| Maximum Operating Temperature | 85°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 12.5mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL |
| Maximum Forward Voltage | 1.8V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 20μs |
| Typical Fall Time | 5μs |
| Isolation Voltage | 566V |
Key Features
- High common mode transient immunity suitable for high density applications.
- Utilizes GaAlAs LED input and photodetector IC output on the same chip.
- Offers low pulse width distortion and open collector output.
- Maximum forward voltage of 1.8V and maximum input current of 12.5mA.
- Typical rise time of 20μs and fall time of 5μs for fast switching.
- Isolation voltage rating of 566V ensures electrical safety.
- Operates reliably between -40°C and 85°C ambient temperatures.
- Available in tape & reel packaging for efficient manufacturing integration.
Product Description
Renesas Electronics PS9821-1-F3-AX is a high-speed DC input photocoupler designed for surface mounting in electronic assemblies. It features an active-low operation mode, combining a GaAlAs light-emitting diode on the input side and a photodetector IC with photodiode and signal processing circuitry on the output side within the same package.
This photocoupler is engineered for applications demanding high common mode transient immunity and low pulse width distortion, ideal for high density electronic circuits. The device offers an isolation voltage of 566V which enhances electrical separation between the input and output circuits, ensuring safety and reducing noise interference.
The PS9821-1-F3-AX comes in an 8-pin small-outline (SO) surface-mount package, with specifications supporting a maximum forward voltage of 1.8V and a maximum input current of 12.5mA. Typical switching speeds are 20 microseconds rise time and 5 microseconds fall time, enabling efficient signal transfer in various industrial and electronic control systems.
Operating temperature ranges from -40°C to 85°C making it suitable for industrial environments. The product is UL approved but is not rated for automotive standard compliance. Packaged in tape and reel format, it facilitates automated manufacturing processes.
High common mode transient immunity for noise-sensitive environments. Compact surface mount design reduces PCB space. Low power consumption supports efficient circuit design. Open collector output for flexible interfacing.
High isolation voltage ensures safety and noise reduction. Fast switching speeds support dynamic applications. Wide operating temperature range suits industrial use cases. UL approval certifies compliance with safety standards.
Packaged for automated assembly processes.
This photocoupler is ideal for industrial electronics, communication equipment, power supplies, and other applications requiring reliable optoelectronic isolation. Explore more options in optocouplers and Electronic Components at EnvMart to enhance your projects with trusted components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The isolation voltage rating of this model is 566V, ensuring electrical safety and reducing noise interference between the input and output circuits.
It operates reliably between -40°C and 85°C, making it suitable for industrial environments.
The maximum input current for this model is 12.5mA, which supports its efficient operation in electronic circuits.
The typical rise time is 20μs and the fall time is 5μs, enabling fast switching for efficient signal transfer.
This model is packaged in tape and reel format, facilitating automated manufacturing processes.
It features an 8-pin configuration, suitable for surface mounting in electronic assemblies.
This photocoupler uses a DC input current type, which is common in various electronic applications.
The maximum forward voltage for the PS9821-1-F3-AX is 1.8V, which is essential for its operation.
It is ideal for industrial electronics, communication equipment, and power supplies, requiring reliable optoelectronic isolation.
This model is designed for surface mounting, which helps save PCB space in electronic assemblies.
Yes, this model is UL approved, certifying its compliance with safety standards.
