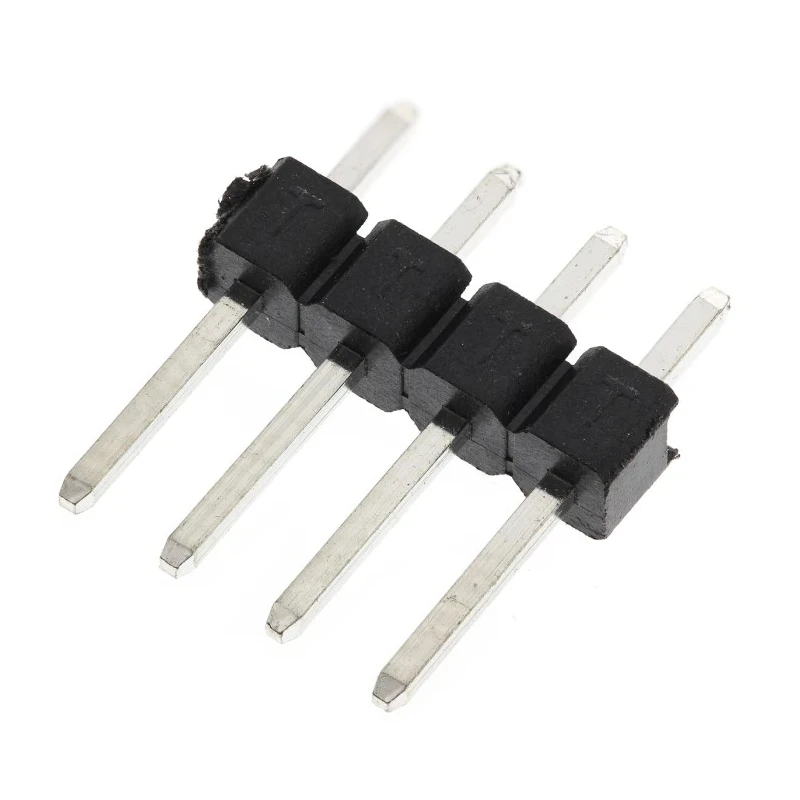

HARWIN M20 Series Straight Through Hole Pin Header 4 Contacts 2.54 mm Pitch 1 Row Unshrouded M20-9990446

Free Delivery in India | Lowest Global Shipping Charges

HARWIN M20 Series Straight Through Hole Pin Header 4 Contacts 2.54 mm Pitch 1 Row Unshrouded M20-9990446

Name: HARWIN M20 Series Straight Through Hole Pin Header 4 Contacts 2.54 mm Pitch 1 Row Unshrouded M20-9990446
Brand: HARWIN
SKU: 210619
Price: 0.12 USD
Availability: InStock



Category PCB Headers Brand HARWIN Condition New

Specifications

Country of Origin	India
Brand	HARWIN
Orientation	Straight
Current	3A
Model	M20-9990446
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	M20
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	4
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	3mm
Mating Pin Length	6.1mm

Key Features

The connector is made with a nylon housing durable for high temperature soldering processes.
It supports a current rating of 3A suitable for board-to-board and wire-to-board connections.
Contacts are brass with tin plating ensuring reliable conductivity and corrosion resistance.
Operating temperature ranges from -40°C to 105°C, allowing use in extreme environments.
It has a tail pin length of 3 mm and mating pin length of 6.1 mm for secure connection retention.
The straight orientation and unshrouded design facilitate easy insertion and flexibility in tight circuits.
This connector does not come with any specific certifications but meets industry standards for PCB headers.

Product Description

HARWIN M20-9990446 is a high-quality straight through hole pin header connector with 4 contacts arranged in a single row at 2.54 mm pitch. It features an unshrouded nylon housing capable of withstanding reflow soldering temperatures, making it suitable for mass production PCB assembly processes.

The connector is designed for board-to-board and wire-to-board connections in embedded PCs, motherboards, consumer electronics, communications, industrial controls, and other electronic applications. The brass contacts plated with tin ensure reliable electrical performance and durability under mechanical stress.

With a current rating of 3A and an operating temperature range from -40°C to 105°C, this pin header functions well under a wide range of environmental conditions. The tail pins extend 3 mm for through-hole mounting, while the mating pins have a length of 6.1 mm to provide secure mate with complementary connectors.

Construction includes features such as castellations allowing size customization by cutting; care should be taken to avoid damaging the tail pins during modification. The unshrouded, straight orientation design enables versatile integration into various PCB layouts.

The connector housing is made of high-temperature nylon to endure reflow soldering. Four brass contacts provide a robust electrical interface supporting 3A current. 2.54 mm pin pitch matches industry-standard spacing for PCB connectors.

Operating temperature specifications allow use in harsh industrial environments. Pin lengths are optimized for secure solder joints and mating connection retention. The design supports board-to-board and wire-to-board connector systems.

This product is ideal for embedded systems, consumer electronics, and industrial control applications.

This pin header is part of the HARWIN M20 series, recognized for its flexibility and quality in PCB connection solutions. Explore the wide range of connectors and accessories in the PCB Headers category on EnvMart for complementary products and technical support.
