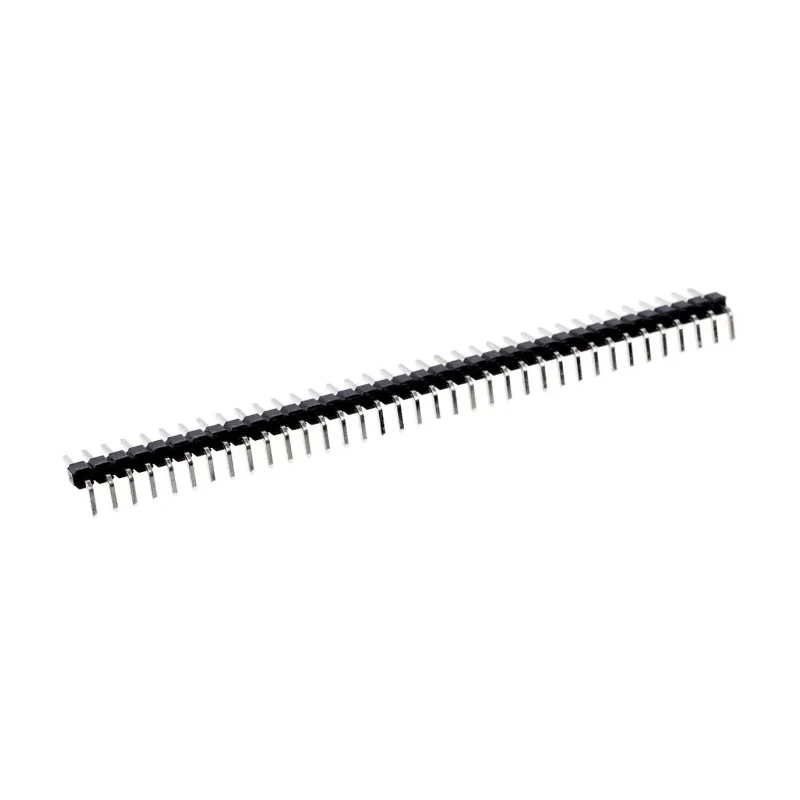

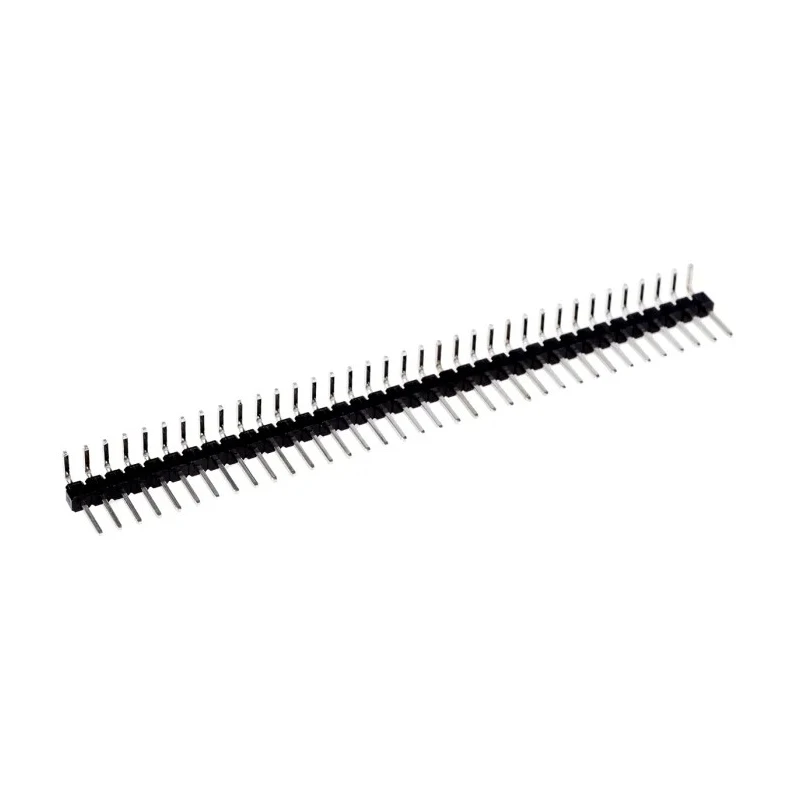

HARWIN M20 Series Right Angle Through Hole Pin Header 36 Contacts 2.54 mm Pitch 1 Row Unshrouded M20-9963646

Free Delivery in India | Lowest Global Shipping Charges

HARWIN M20 Series Right Angle Through Hole Pin Header 36 Contacts 2.54 mm Pitch 1 Row Unshrouded M20-9963646

Name: HARWIN M20 Series Right Angle Through Hole Pin Header 36 Contacts 2.54 mm Pitch 1 Row Unshrouded M20-9963646
Brand: HARWIN
SKU: 210617
Price: 1.48 USD
Availability: InStock



Category PCB Headers Brand HARWIN Condition New

Specifications

Country of Origin	India
Brand	HARWIN
Orientation	Right Angle
Current	3A
Model	M20-9963646
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	M20
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	36
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	3mm
Mating Pin Length	6.1mm

Key Features

This pin header is constructed with brass contacts plated in tin for reliable connectivity.
Housing is made of nylon, capable of withstanding high temperatures and reflow soldering processes.
The component supports a maximum operating current of 3A and temperature range from -40°C to 105°C.
Tail pin length measures 3 mm with a mating pin length of 6.1 mm for secure connection.
It is designed for board-to-board and wire-to-board connector systems in electronic applications.
The unshrouded, single row configuration provides easy access for soldering and is adaptable to custom sizes.

Product Description

HARWIN M20-9963646 is a right angle through hole pin header connector from the M20 series, offering 36 male contacts arranged in a single row with a 2.54 mm pitch. It features an unshrouded housing made from high temperature nylon that supports SMT and through hole PCB mounting.

This connector is designed to deliver a reliable current capacity of 3 amps and can operate within a temperature range of -40°C to 105°C, making it suitable for diverse industrial and electronics applications. The brass contacts are plated with tin to ensure corrosion resistance and excellent electrical contact.

The tail pin length is 3 mm, while the mating pin length is 6.1 mm, optimized for secure mechanical and electrical connections. The component supports both board-to-board and wire-to-board configurations, allowing flexible usage in embedded systems, consumer electronics, communications equipment, drives, controls, and industrial monitoring.

The housing is capable of withstanding reflow soldering processes and can be cut to size by utilizing castellations in the design, providing customization for various installation requirements.

Constructed from durable nylon housing ensuring high temperature tolerance. 36 contact unshrouded design allows easy soldering and flexible connectivity. Right angle orientation optimizes PCB layout and space utilization.

Supports 3A current rating suitable for standard electronic circuits. Operates reliably between -40°C and 105°C ambient temperatures. Designed for board-to-board and wire-to-board connector systems.

This HARWIN M20 series pin header is an established standard connector widely used in industrial, laboratory, and commercial electronics manufacturing for embedding into motherboards, embedded PC solutions, and large electronic systems.

Explore more PCB Headers and connectors of similar specifications at EnvMart to find compatible products and system integration solutions.
