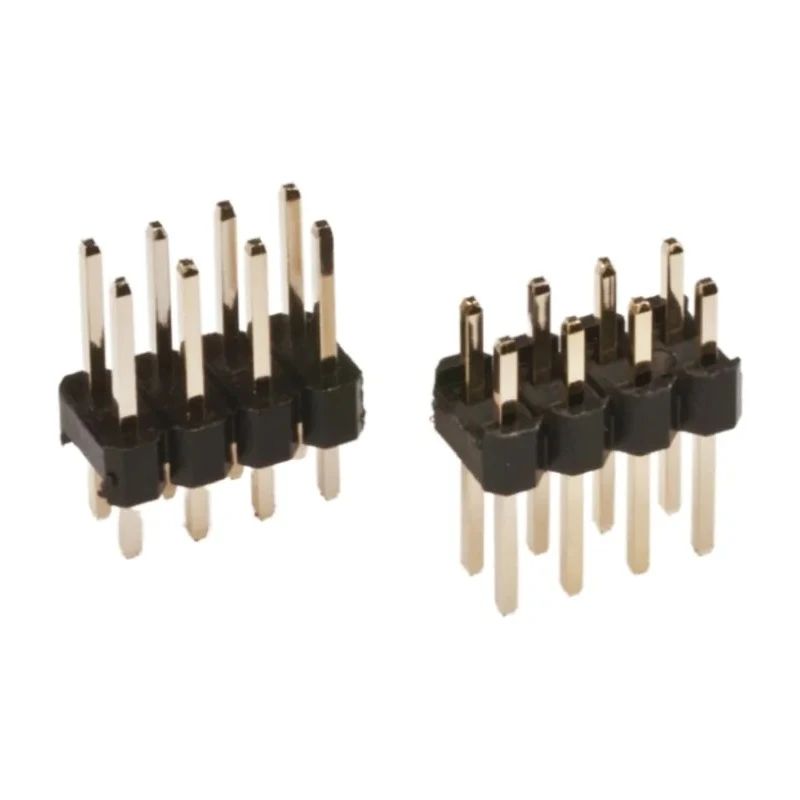

HARWIN M20 Series Straight Through Hole 16 Contact Pin Header 2.54 mm Pitch 2 Row Unshrouded M20-9980846
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARWIN |
| Orientation | Straight |
| Current | 3A |
| Model | M20-9980846 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | M20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3mm |
| Mating Pin Length | 6.1mm |
Key Features
- The connector features an unshrouded, straight orientation ideal for versatile board-to-board and wire-to-board applications.
- Constructed with brass contact material plated in tin to ensure reliable electrical conductivity.
- Housing is made from high-temperature resistant nylon suitable for reflow soldering processes.
- Supports a current rating of 3A and operates reliably within a temperature range of -40°C to 105°C.
- Termination is via soldering with male contact gender and tail pin length of 3 mm for secure mounting.
- Dual row design with 16 contacts spaced at 2.54 mm pitch, optimizing space and connection density.
- Designed to mate with M20 series PCB sockets, socket housings, and jumpers for modular connectivity solutions.
- Suitable for consumer electronics, communications, industrial monitoring, and embedded PC applications.
Product Description
HARWIN M20-9980846 is a high quality straight through hole pin header connector featuring 16 contacts arranged in 2 rows with a 2.54 mm pitch. This unshrouded connector is designed for board-to-board and wire-to-board connections in electronic assemblies requiring durable and precise interfacing.
The connector housing is molded from thermoplastic nylon, which offers excellent thermal resistance enabling it to withstand reflow soldering processes commonly used in PCB assembly. Brass contacts with tin plating ensure excellent conductivity and corrosion resistance, making it suitable for robust and long-lasting connections in demanding environments.
Key technical details include a current carrying capacity of 3 amperes, tail pin length of 3 mm for reliable through hole solder termination, and operation within an ambient temperature range from -40 degrees Celsius to 105 degrees Celsius. The male contact gender and unshrouded design provide flexibility for mating with a variety of compatible components including M20 series sockets and jumpers.
This M20 series pin header finds applications across a wide range of sectors including embedded systems, consumer electronics, communications equipment, drives and control units, industrial monitoring systems, and computing devices. The connector series offers multiple configuration options, including different row counts and pin mating lengths, allowing design versatility and adaptability to specific requirements.
The connector enables flexible design choices with multiple pin and row configurations and varied mating pin lengths. Thermoplastic nylon housings ensure durability and compatibility with soldering processes. Can conveniently be cut to size with attention to tail pin integrity.
Reliable solder termination enhances connection strength and electrical performance. Application versatility for use in embedded PCs, industrial systems, and communication devices.
HARWIN pin headers are trusted components in the electronics industry, known for precise mechanical and electrical performance. Discover more in the PCB Pin Header category on EnvMart for compatible components and related connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3A.
It operates reliably within a temperature range of -40°C to 105°C.
The contacts are spaced at a pitch of 2.54 mm.
The HARWIN M20-9980846 features 16 contacts arranged in 2 rows.
The housing is made from high-temperature resistant nylon, and the contacts are brass plated in tin for reliable conductivity.
Termination is via soldering, with a male contact gender.
The tail pin length is 3 mm, allowing for secure mounting.
It is suitable for consumer electronics, communications, industrial monitoring, and embedded PC applications.
This connector features a straight orientation, making it versatile for board-to-board and wire-to-board applications.
The maximum operating temperature is 105°C.
Yes, it is designed to mate with M20 series PCB sockets, socket housings, and jumpers for modular connectivity solutions.
The country of origin for this product is India.
