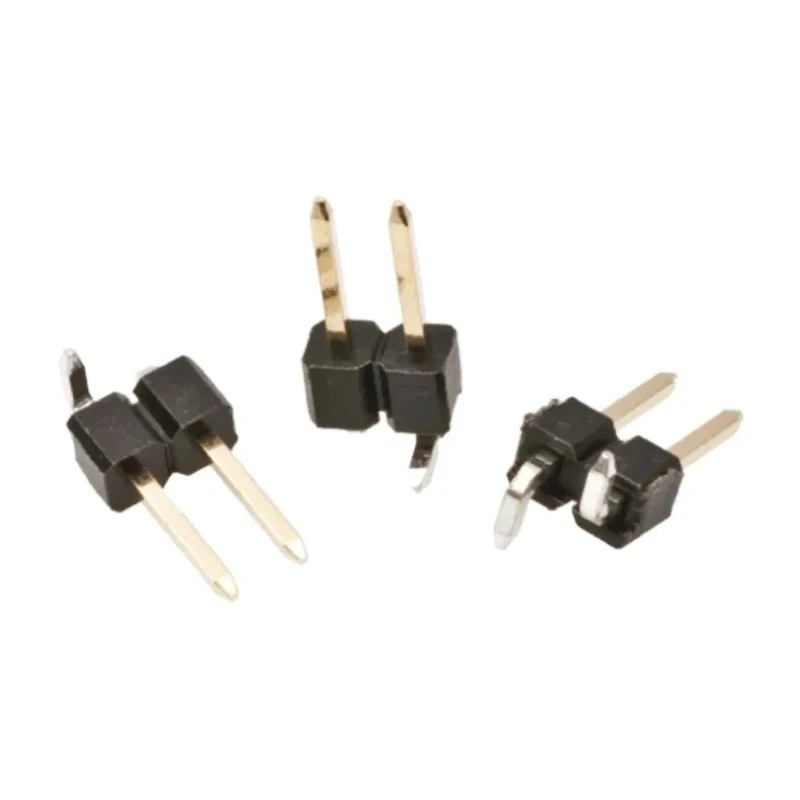

HARWIN M20 Series Straight Surface Pin Header, 10 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded M20-8771042
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | HARWIN |
| Orientation | Straight |
| Current | 3A |
| Model | M20-8771042 |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | M20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Mating Pin Length | 5.8mm |
Key Features
- The connector is made with a nylon housing resistant to high temperatures.
- Contacts are brass with gold plating ensuring reliable conductivity.
- Supports a current rating of 3A for reliable electrical performance.
- Designed for surface mount applications with solder terminations.
- Operating temperature ranges from -40°C to 105°C for versatile environments.
- Mating pin length of 5.8 mm ensures secure connections.
- Provides compatibility with board-to-board and wire-to-board systems.
- Offers flexibility in PCB design with a single row and unshrouded layout.
Product Description
HARWIN M20-8771042 is a straight surface pin header connector designed with 10 male contacts arranged in a single row with a 2.54 mm pitch. Its unshrouded configuration makes it ideal for board-to-board and wire-to-board applications in electronics manufacturing.
The connector housing is constructed from high-temperature resistant nylon allowing it to withstand reflow soldering processes commonly used in PCB assembly. Brass contacts with gold plating ensure excellent electrical conduction and corrosion resistance, supporting a current capacity of 3A. The 5.8 mm mating pin length provides reliable signal integrity through robust mechanical engagement.
Designed for surface mounting with solder termination, this header connector accommodates operating temperature extremes from -40°C to 105°C, making it suitable for diverse industrial and consumer electronics environments. It is crafted to meet compatibility requirements with M20 series PCB sockets, socket housings, and jumpers, enhancing modularity in embedded systems and motherboards.
The flexible design allows cutting to smaller sizes by utilizing castellations on the housing, affording customization in PCB layouts. Common application areas include industrial monitoring, communication devices, drives and controls, and general electronics manufacturing.
The connector features a 2.54 mm pitch with 10 contacts in one row. Housing material is thermoplastic nylon suitable for solder reflow processes. Gold-plated brass contacts optimize conductivity and reliability. Supports 3A current with operating temperature from -40°C to 105°C.
Surface mount design with solder termination provides integration ease. Mating pin length of 5.8 mm ensures secure electrical connection. Unshrouded connector accommodates board-to-board and wire-to-board systems. Flexible housing can be cut to size with care for tails.
Manufactured in Taiwan, Province Of China assuring quality manufacturing standards.
This HARWIN M20 series pin header is a trusted solution for embedded PCs, industrial electronics, and communication equipment fabrication. Its robust construction and versatility support demanding electronic applications requiring reliable PCB interconnects.
Explore more in the EnvMart electronics connectors category to find complementary components for your assembly needs.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3A, ensuring reliable electrical performance.
It operates within a temperature range of -40°C to 105°C, making it suitable for various environments.
The housing is made from high-temperature resistant nylon, while the contacts are brass with gold plating for improved conductivity.
This pin header features 10 male contacts arranged in a single row.
The connector has a pitch size of 2.54 mm, which is standard for many PCB applications.
It utilizes solder termination, which is common for surface mount applications.
The mating pin length is 5.8 mm, ensuring secure connections during use.
Yes, it is designed for both board-to-board and wire-to-board systems, providing versatility in connectivity.
This model is designed for surface mounting, facilitating easy integration into PCB layouts.
Yes, the flexible housing can be cut to smaller sizes using the castellations, allowing for customization in PCB layouts.
It is manufactured in Taiwan, Province of China, ensuring adherence to quality manufacturing standards.
Common application areas include industrial monitoring, communication devices, drives and controls, and general electronics manufacturing.
