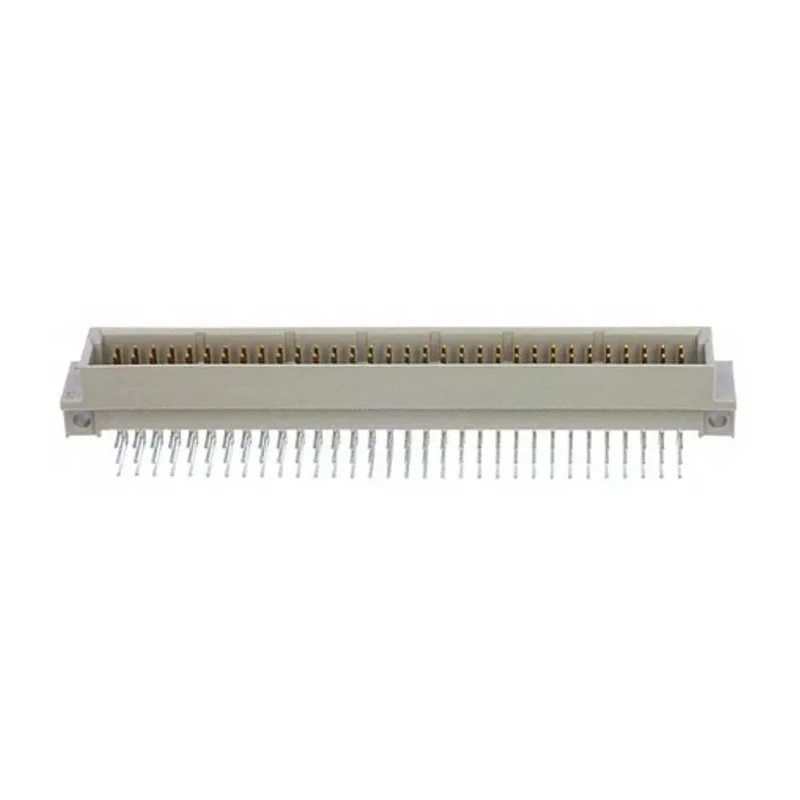

TE Connectivity Eurocard DIN 41612 Connector 96 Way 2.54 mm Pitch Through Hole Type C/2 Solder Class C2 3 Row 9-1393644-1

Name: TE Connectivity Eurocard DIN 41612 Connector 96 Way 2.54 mm Pitch Through Hole Type C/2 Solder Class C2 3 Row 9-1393644-1
Brand: TE Connectivity
SKU: 210588
Price: 6.55 USD
Availability: InStock



Category DIN 41612 Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	250V ac
Brand	TE Connectivity
Orientation	Right Angle
Current	1.5A
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Series	Eurocard
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	C/2
Minimum Operating Temperature	-55°C
Number of Rows	3
Pitch	2.54mm
Standards/Approvals	RoHS
Number of Contacts	96
Contact Gender	Male
Connector Gender	Male
Maximum Contact Resistance	15mΩ
Row Loading	A/B/C

Key Features

Meets DIN 41612 and IEC 60603-2 standards for durability and reliability.
Features 96 contact points across 3 rows for extensive connectivity.
Utilizes copper alloy contacts with maximum contact resistance of 15mΩ.
Operates at a voltage rating of 250V AC and current of 1.5A per contact.
Constructed with thermoplastic housing material that is flame retardant.
Includes solder termination type with through hole mounting for secure installation.
Designed with polarization and boardlocks to prevent mismating and ensure PCB retention.
Suitable for industrial applications including telecommunications, data centers, and modular rack systems.

Product Description

TE Connectivity 9-1393644-1 Eurocard DIN 41612 Connector is a high-quality 96 Way connector with a 2.54 mm pitch. Featuring a robust three-row male pin design (Type C/2), it ensures reliable electrical performance and signal integrity. This connector is intended for through hole mounting with solder termination and complies with DIN 41612 and IEC 60603-2 standards.

The connector has copper alloy contacts with a maximum contact resistance of 15mΩ and supports an operating voltage of 250V AC and current rating of 1.5A per contact. Its thermoplastic housing is flame retardant, providing increased safety and durability. Polarizing features and optional boardlocks prevent mismating and ensure stable PCB attachment.

This connector is widely used in industrial and commercial applications such as telecommunications equipment, data centers, backplanes, modular rack systems, and control systems in manufacturing environments. It is designed to operate reliably across a temperature range from -55°C to 125°C, suitable for harsh environmental conditions.

Meets DIN 41612 and IEC 60603-2 standards for connector quality and reliability. 96 contacts arranged in 3 rows with a 2.54 mm pitch for high-density applications. High signal integrity and electrical performance with copper alloy contacts.

Thermoplastic flame retardant housing with polarization to avoid mismating. Solder termination and through hole mount type for secure and stable PCB connection. Temperature range from -55°C to 125°C ensures durability in industrial environments.

Suitable for use in telecommunications, data centers, industrial control, and modular rack systems. Explore the extensive selection of DIN 41612 Connectors at EnvMart for your industrial and electronic component needs.
