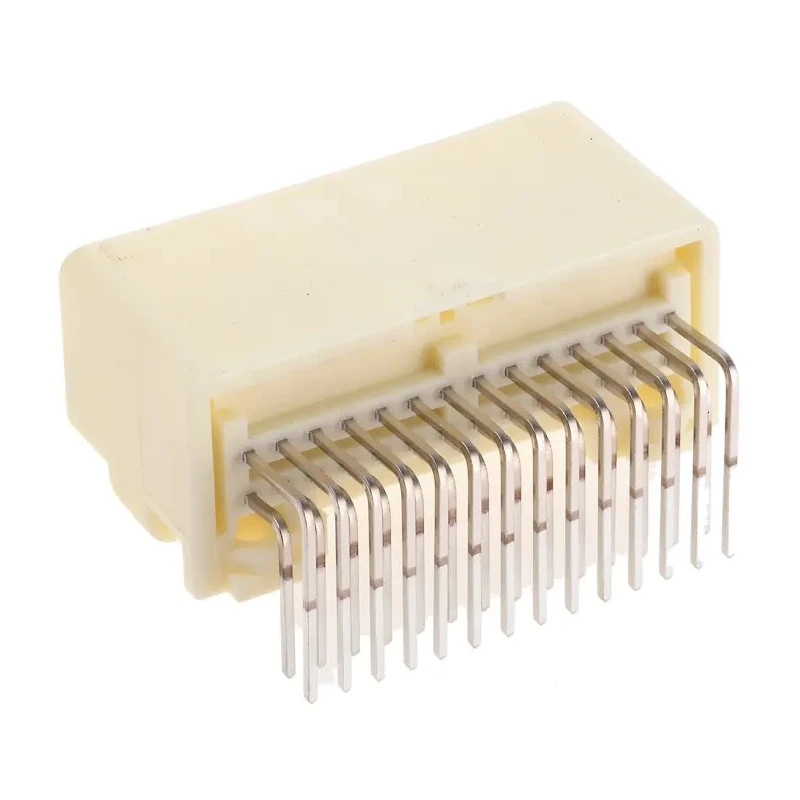

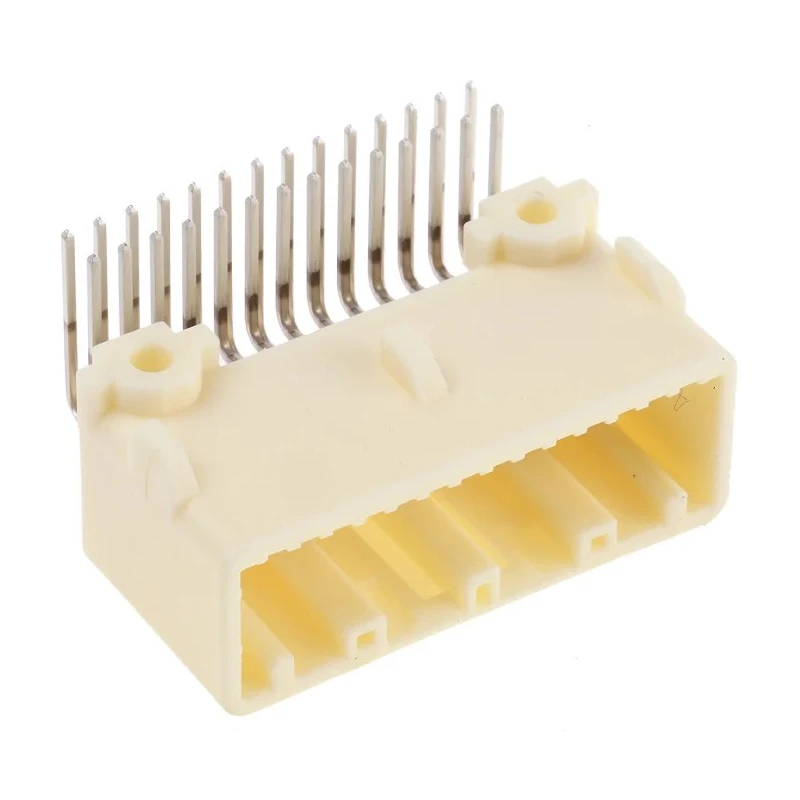

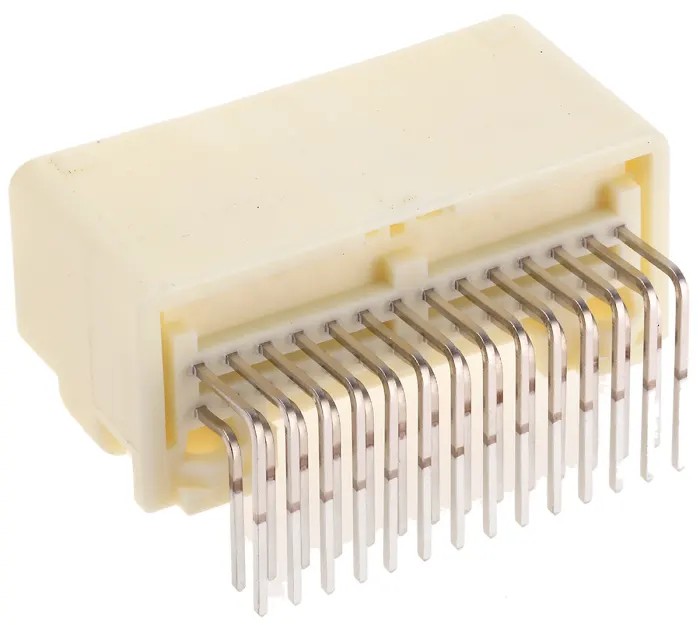

TE Connectivity TH 025 Series Automotive Connector Female Natural Through Hole 28 Way Solder Termination 1565373-4
Specifications
| Brand | TE Connectivity |
|---|---|
| Colour | Natural |
| Height | 15.5mm |
| Depth | 24.47mm |
| Width | 36.2mm |
| Gender | Female |
| Mount Type | Through Hole |
| Housing Material | Polystyrene |
| Contact Material | Brass |
| Series | TH 025 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Automotive Wire Connector |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Standards/Approvals | EU RoHS, EU ELV |
| Contact Plating | Tin |
| Number of Contacts | 28 |
Key Features
- This connector features a compact design with a high-density 2.2 mm pitch for space-efficient PCB mounting.
- It includes board fixation screws ensuring a secure connection to the PCB.
- Colour coded natural housing aids easy identification in automotive applications.
- Designed for through hole mounting with solder termination for reliable electrical connections.
- Constructed with brass contacts plated with tin for corrosion resistance.
- Suitable for a wide temperature range from -30°C to 105°C ensuring durability under harsh conditions.
- Two rows of contacts with a total of 28 contacts support high connectivity needs.
- Applications include automotive safety, security, multimedia, airbag ECU, switches, and dashboard systems.
Product Description
TE Connectivity 1565373-4 TH 025 Series Automotive Connector Female is designed to provide high-performance, reliable electrical connections in automotive control systems.
This connector features a compact, high-density 2.2 mm pitch design with 28 female contacts arranged in two rows. The natural polystyrene housing is colour coded for identification and is equipped with board fixation screws to ensure a secure fit on through hole mounting PCBs.
Contacts are made of brass and plated with tin to resist fretting corrosion and provide low mating force. The connector supports solder termination, offering a robust and durable connection in automotive electronics.
Operating temperature ranges from -30°C to 105°C, making it suitable for demanding environments in vehicle safety, security, driver information, and body systems. Typical applications include mirrors, multimedia devices, display screens, airbag ECU, switches, body controller management, and dashboards.
This TH 025 series connector family is ideal for automotive wire-to-wire, wire-to-board, and ECU interface requirements, combining compact size and secure connections. This connector has a compact design with a 2.2 mm high-density pitch.
Board fixation screws provide a secure PCB connection. Natural colour housing aids in easy identification. Brass contacts with tin plating resist corrosion. Suitable for automotive applications including safety and multimedia systems.
Operates reliably from -30°C to 105°C. 28 contacts arranged in two rows for high connectivity. Through hole mount with solder termination ensures solid electrical connections. Explore more Automotive Connectors from TE Connectivity to meet your electronic system requirements in automotive, industrial, and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector features a high-density pitch size of 2.2 mm, designed for space-efficient PCB mounting.
This model has a total of 28 contacts arranged in two rows, supporting high connectivity needs.
It operates reliably within a temperature range of -30°C to 105°C, making it suitable for demanding automotive environments.
This connector utilizes solder termination, ensuring robust and durable electrical connections.
The contacts are made of brass and are plated with tin to resist fretting corrosion.
The housing is constructed from natural polystyrene, which is colour coded for easy identification.
It is designed for through hole mounting and includes board fixation screws to ensure a secure connection.
This connector complies with EU RoHS and EU ELV standards, ensuring environmental compliance.
Typical applications include automotive safety systems, multimedia devices, airbag ECU, switches, and dashboard systems.
The dimensions of this connector are 36.2 mm in width, 24.47 mm in depth, and 15.5 mm in height.
This connector is a female type, designed for compatibility with male connectors in automotive applications.
The compact design with a high-density pitch allows for efficient use of space on PCBs, making it suitable for various automotive applications.
