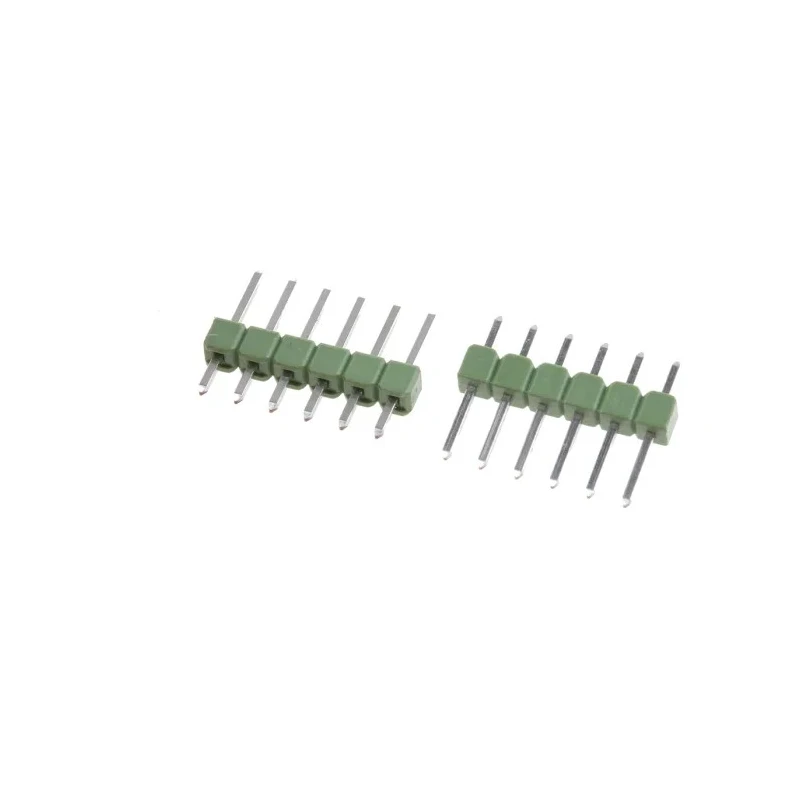

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header 6 Contacts 2.54 mm Pitch 1 Row Unshrouded 826936-6

TE Connectivity 826936-6 AMPMODU MOD II Series Straight Through Hole Pin Header, featuring 6 contacts at a 2.54 mm pitch, 1 row unshrouded design, is engineered for reliable board-to-board and wire-to-board connections. This pin header facilitates easy breakaway sizing and quick solder post installation, optimizing assembly efficiency.

Its polybutylene terephthalate housing ensures mechanical stability while the phosphor bronze contact material with tin plating offers excellent conductivity and corrosion resistance. The connector supports up to 750V voltage and 3A current, meeting demanding electrical specifications.

Designed for through hole mounting with solder termination, it operates effectively in temperature ranges from -65°C to 105°C. The straight orientation and unshrouded structure allow for flexible use in various electronic equipment.

This series suits diverse applications such as automotive control systems, industrial automation, testing devices, computing hardware, telecommunications, medical instrumentation, storage solutions, and household appliances. The AMPMODU Interconnect System standard embodied in this product ensures compact, reliable, and cost-effective connectivity solutions.

Key features include a 3.2 mm tail pin length and a 5.8 mm mating pin length which contribute to secure mechanical and electrical connections. Its breakaway design allows customization to fit different PCB configurations.

Features a straight orientation with unshrouded, breakaway single row design. Constructed with polybutylene terephthalate housing and phosphor bronze contacts plated with tin. Rated for 750V and 3A current capacity ensuring reliable performance.

Suitable for through hole mounting with solder termination type. Operational temperature range from -65°C to 105°C supports diverse environments. Provides a tail pin length of 3.2 mm and mating pin length of 5.8 mm. Versatile and economical solution for automotive controls, industrial, test equipment, computers, telecommunications, and medical instruments.
