TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 3 Contact, 2.54 mm Pitch, 1 Row, Unshrouded 825433-3

Free Delivery in India | Lowest Global Shipping Charges

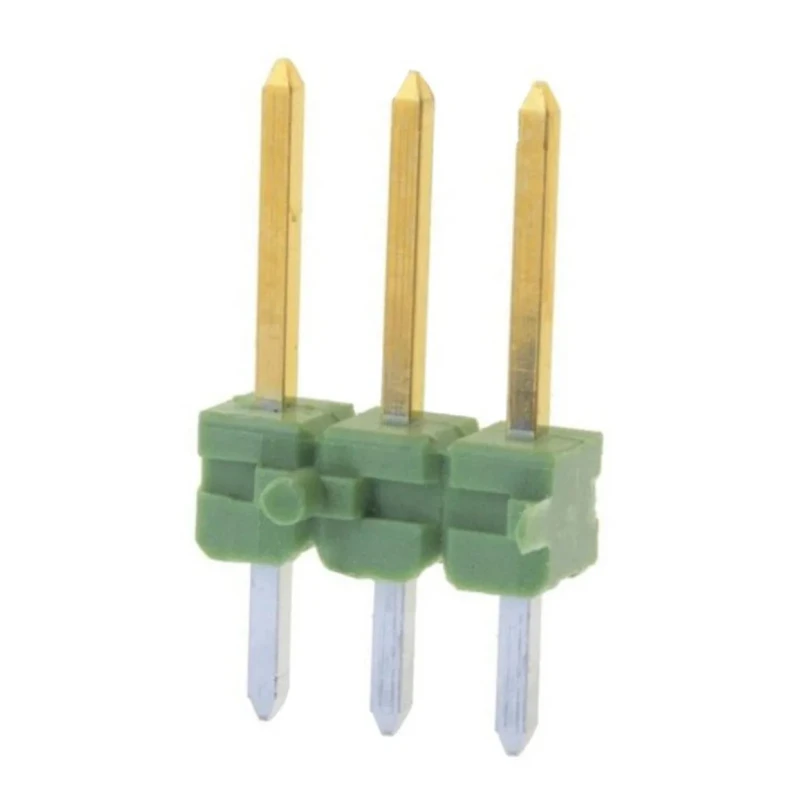

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 3 Contact, 2.54 mm Pitch, 1 Row, Unshrouded 825433-3

Name: TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 3 Contact, 2.54 mm Pitch, 1 Row, Unshrouded 825433-3
Brand: TE Connectivity
SKU: 210552
Price: 0.63 USD
Availability: InStock



Category PCB Headers Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	750V
Brand	TE Connectivity
Orientation	Straight
Current	3A
Model	825433-3
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	AMPMODU MOD II
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-65°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	3
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	3.2mm
Mating Pin Length	6.7mm

Key Features

This pin header features a single row with unshrouded design for versatile applications.
Contacts are made of brass with gold plating to ensure durability and conductivity.
The housing is constructed from polybutylene terephthalate offering robust insulation.
Operates reliably between -65°C and 105°C temperature range.
Designed for through-hole mounting and solder termination.
Supports a maximum voltage of 750 V and current rating of 3 A.
Tail pin length is 3.2 mm with mating pin length of 6.7 mm.
This model allows breakaway to required sizes saving installation time and labor cost.

Product Description

TE Connectivity 825433-3 AMPMODU MOD II Series straight through hole pin header is a high-quality PCB connector designed for board-to-board and wire-to-board applications. With a 2.54 mm pitch and single row of 3 contacts, this header offers a compact and reliable interconnect solution suitable for a broad range of industrial, automotive, telecommunications, and medical applications.

The pin header features brass contacts with gold plating for excellent conductivity and corrosion resistance. Its polybutylene terephthalate housing ensures strong electrical insulation and mechanical durability. The unshrouded design enables flexible connection configurations and easy inspection.

Operating temperature ranges from -65°C to 105°C, supporting harsh environments. The solder termination and through-hole mount type facilitates secure and robust PCB assembly. Each pin has a tail length of 3.2 mm and mating pin length of 6.7 mm, meeting industry standards for reliable signal transmission.

These AMPMODU MOD II pin headers can be broken down to the required size, allowing quick and economical installation by enabling all solder posts to be installed simultaneously, thus saving labor costs and reducing assembly time.

This pin header supports a maximum current of 3 A at 750 V, suitable for low power signal applications. The compact single-row configuration with 2.54 mm pitch is widely used in automation and control systems. Its applications cover automotive controls, industrial and test equipment, computers, telecommunications, medical instruments, storage devices, and various appliances.

The AMPMODU Interconnect system by TE Connectivity is recognized as a signal standard in automation and control, combining reliability with economic efficiency. This product embodies these principles, delivering precise performance and easy integration in demanding industrial environments.
