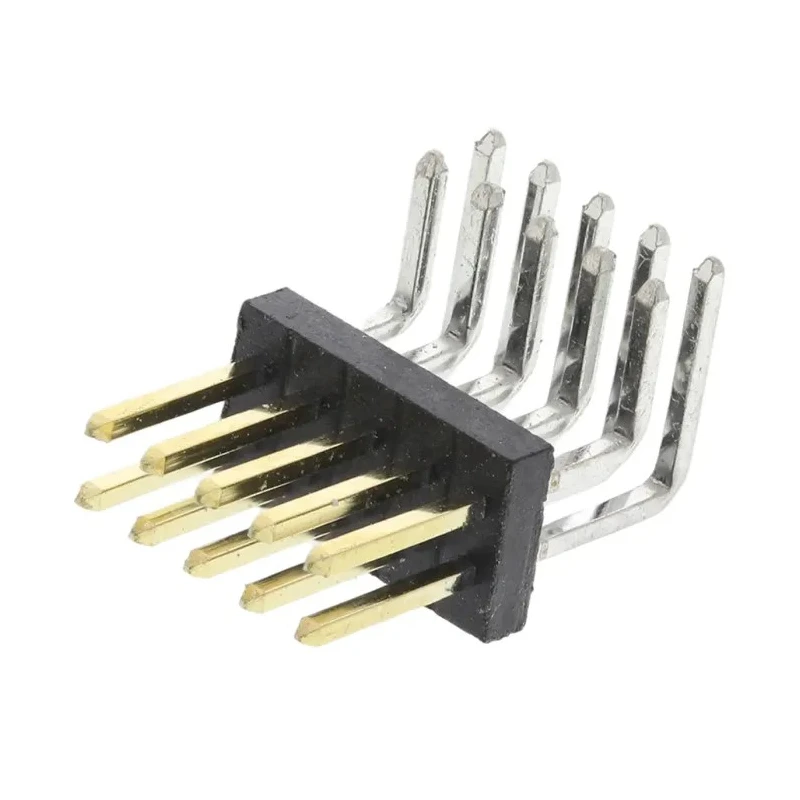

HARWIN Archer M50 Series Right Angle Through Hole Pin Header 10 Contacts 1.27 mm Pitch 2 Row Unshrouded M50-3900542

HARWIN M50-3900542 Archer M50 Series Right Angle Through Hole Pin Header is designed for robust and compact PCB interconnection with 10 contacts arranged in 2 rows and spaced at a standard 1.27 mm pitch.

The connector housing is made of tough nylon material, providing electrical insulation and mechanical durability in demanding industrial and commercial applications. The contacts are constructed from phosphor bronze alloy and plated with gold, which ensures excellent conductivity, corrosion resistance, and long-term reliability.

This pin header features a right angle orientation that facilitates space-saving designs on printed circuit boards. The termination type is solder, securing the pins firmly onto the PCB for enhanced mechanical stability.

It supports a current rating of 1 amp and operates within a temperature range from -40°C to 105°C, making it suitable for harsh environments and various industrial, automotive, communications, and medical equipment applications including navigation systems, sonar displays, test equipment, telecoms, datacoms, and X-ray diagnostic machines.

The precision 1.27 mm pitch is compatible with standard IDC ribbon cable sockets and jumper sockets, providing flexibility in board-to-board and wire-to-board connector systems. The connector is unshrouded, allowing easy accessibility to pins while supporting custom cable routing and modular assembly.

Compact 2 row, 10-contact right angle unshrouded pin header. Phosphor bronze contacts with gold plating for superior electrical performance. Nylon housing for mechanical robustness and insulation. Through hole mount for reliable solder termination on PCBs.

Rated for 1 amp current and operating temperatures between -40°C and 105°C. Tail pin length of 2 mm, mating pin length 3.8 mm. Industry standard 1.27 mm pitch suitable for flexible cable connections. Ideal for use in industrial, automotive, communications, and medical diagnostic equipment.

This product is part of the HARWIN Archer M50 series renowned for quality and design flexibility in PCB connectors, supporting efficient manufacturing and reliable electronic assemblies.
