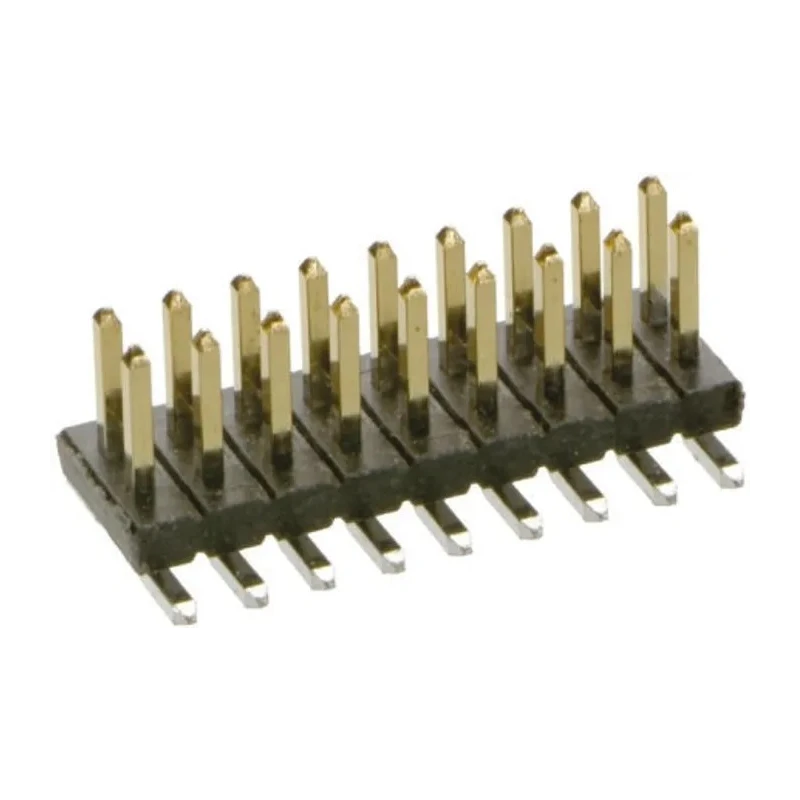

HARWIN Archer M50 Series Straight Surface Pin Header 20 Contacts 1.27 mm Pitch 2 Row Unshrouded M50-3601042

Free Delivery in India | Lowest Global Shipping Charges

HARWIN Archer M50 Series Straight Surface Pin Header 20 Contacts 1.27 mm Pitch 2 Row Unshrouded M50-3601042

Name: HARWIN Archer M50 Series Straight Surface Pin Header 20 Contacts 1.27 mm Pitch 2 Row Unshrouded M50-3601042
Brand: HARWIN
SKU: 210419
Price: 2.35 USD
Availability: InStock



Category PCB Headers Brand HARWIN Condition New

Specifications

Country of Origin	India
Brand	HARWIN
Orientation	Straight
Current	1A
Model	M50-3601042
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	Archer M50
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	2.3mm
Mating Pin Length	3mm

Key Features

Features a compact and robust straight surface mount construction.
Employs liquid crystal polymer housing for durability and heat resistance.
Gold plated copper alloy contacts ensure reliable electrical performance.
Supports a current rating of 1 ampere for low power applications.
Suitable for industrial, automotive, telecommunications, and medical equipment use.
Male contact gender with solder termination ensures secure connections.
Operates in a temperature range from -40°C to 105°C.
Unshrouded design simplifies accessibility for cable and jumper sockets.

Product Description

HARWIN M50-3601042 Archer M50 Series Straight Surface Pin Header includes 20 contacts arranged in 2 rows with a 1.27 mm pitch and unshrouded configuration, optimized for board-to-board and wire-to-board PCB connections. Its surface mount design and liquid crystal polymer housing provide both compactness and enduring reliability under demanding conditions.

This pin header features copper alloy contacts plated with gold to ensure consistent conductivity and resistance to corrosion. It supports a current capacity of 1 ampere and is designed to operate reliably between -40°C and 105°C, making it suitable for diverse industrial applications including automotive controls, telecommunications equipment, navigation systems, sonar displays, and medical diagnostic devices such as X-ray machines.

The male contact gender and solder termination type provide secure mechanical and electrical connection with compatible cables and jumper sockets. Tail pin length of 2.3 mm and mating pin length of 3 mm ensure stable and efficient mating with cable connectors.

Unshrouded rows allow ease of access during manufacturing and maintenance, contributing to enhanced production efficiency. The versatile design allows cutting to size with various mounting orientations to fit application-specific needs.

Compact and stable surface mount PCB header. Durable liquid crystal polymer housing material. Gold plated copper alloy contacts for conductivity. Rated for 1A current and -40°C to 105°C operating range. Unshrouded, 2 row, 20 contacts with 1.27 mm pitch.

Suitable for diverse industrial, telecom, automotive, and medical electronics. Solder termination for secure connections. Pin lengths ensure reliable mating. Designed for efficient automated assembly.

This pin header is categorized under PCB Headers for Electronics & Electricals, enabling easy access for industrial, laboratory, manufacturing, telecommunications, and commercial uses. Explore more from HARWIN and similar connectors at EnvMart for your PCB assembly needs.
