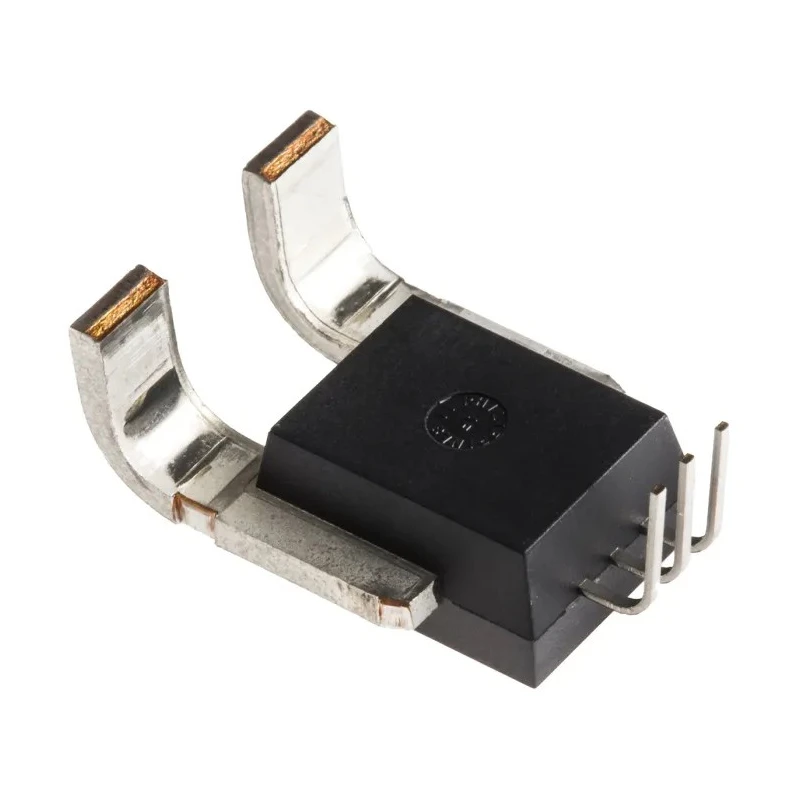

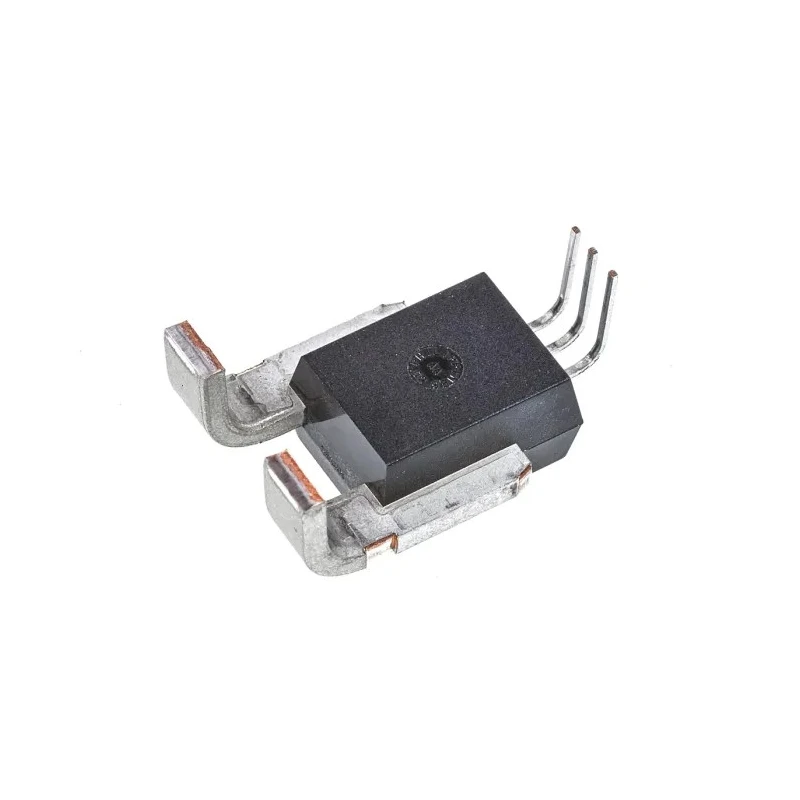

Allegro Microsystems Through Hole Hall Effect Sensor 3 V to 5.5 V, 5-Pin CB PFF Package ACS758ECB-200B-PFF-T

Allegro Microsystems ACS758ECB-200B-PFF-T through hole Hall effect sensor is an analogue current sensor IC designed for precise current measurement applications. Operating with a supply voltage range from 3 V to 5.5 V, the sensor measures current using linear magnetic field detection, offering accurate output proportional to the current flow.

The device comes in a compact 5-pin CB PFF through-hole package, measuring 7 mm in height, 13 mm in width, and 10 mm in length. It operates efficiently within a temperature range of -40°C to 85°C, making it suitable for harsh industrial and automotive environments.

This sensor features a sensitivity of 10 mV/A and a fast response time of 4 microseconds, facilitating real-time current measurement in various applications. It provides robust galvanic isolation rated at 3000 Vrms, ensuring safe operation in electrically challenging environments.

Linear magnetic sensor technology for accurate current detection. Automotive standard compliant (AEC-Q100) suitable for demanding automotive systems. Low supply current of 10 mA minimizes power consumption. Compact and robust through hole package for easy PCB mounting.

Wide operating temperature range supports industrial and automotive uses. Fast response time enhances system responsiveness and control. High isolation voltage protects against electrical hazards. Designed for applications including power monitoring, motor control, and industrial process control.

This sensor is ideal for industrial, automotive, and electronic component applications where reliable and precise current sensing is required. It facilitates integration into power management systems, motor drive units, and measurement devices.

Choose Allegro Microsystems ACS758ECB-200B-PFF-T for a trusted, high-performance Hall effect current sensor solution. Explore more Hall Effect Sensors and Sensor ICs from Allegro Microsystems in the EnvMart catalog.
